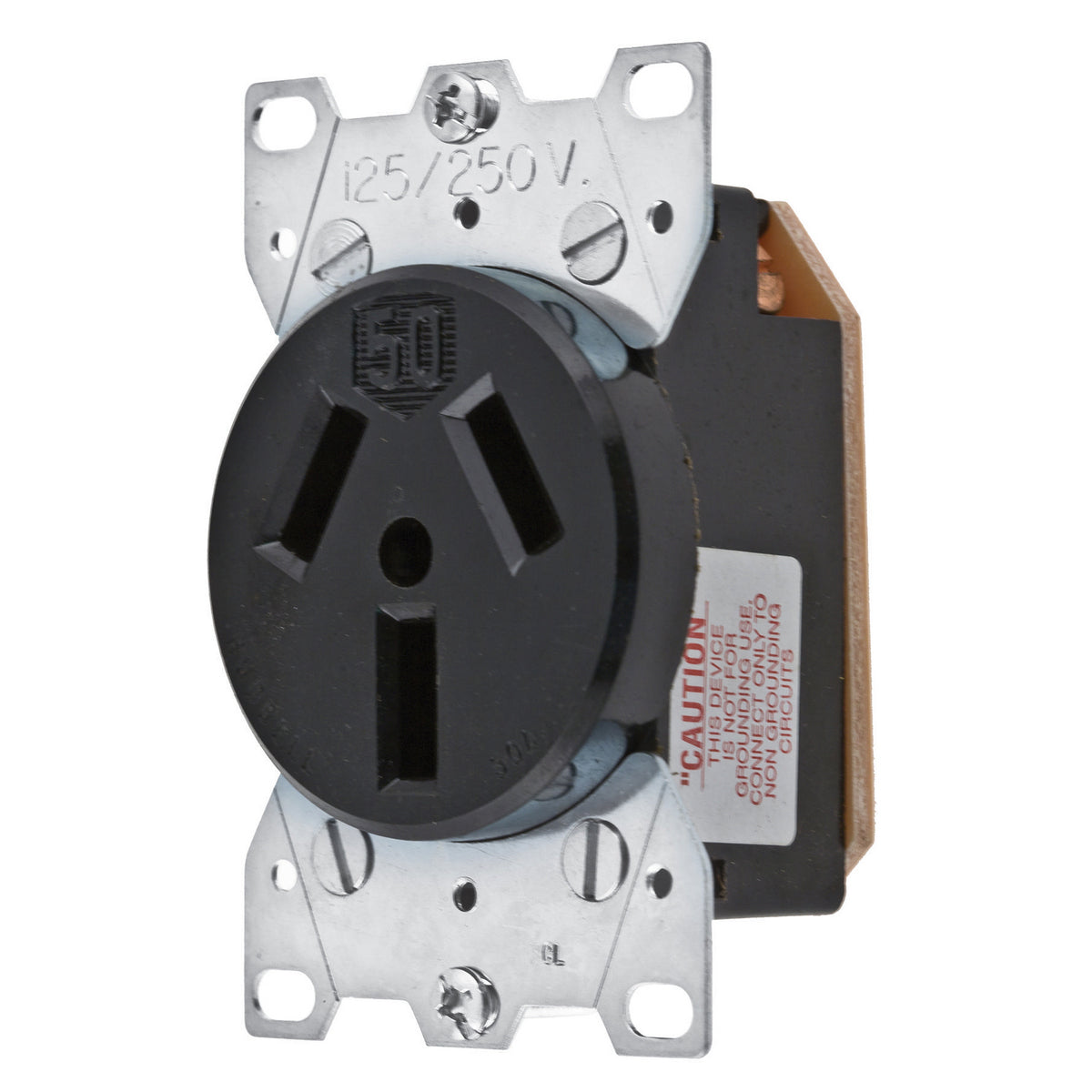

Hubbell HBL7962 50 Amp 12/250 Volt 3-Pole 3-Wire NEMA 10-50R Black Straight Blade Receptacle

Product Description

The Hubbell HBL7962 is a 50 amp, 12/250 volt receptacle designed for industrial use. This straight blade receptacle features a three-pole, three-wire, non-grounding configuration. It is rated NEMA 10-50R. The receptacle is suitable for heavy-duty applications. Its seamless design provides durability and reliability in demanding environments.

• Heavy-duty construction for industrial settings
• Compatible with NEMA 10-50R devices
• Rated for 50 amps at 125/250 volts

Product Highlights

This receptacle includes sequenced contacts for protection. The product's catalog number, ratings, and certifications are molded into the face of the device, ensuring clear identification. The one-piece design of power and ground contacts supports its robust performance.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• GTiN: 00783585015125
• NEMA Rating: 10-50R
• Type: Heavy Duty
• Color: Black
• Width: 2.500 inches
• Height: 2.418 inches
• Length: 2.5 inches
• Weight: 0.5 lb
• Current Rating: 50 Amp
• Voltage Rating: 125/250 Volt
• Wattage: 12500 Watt
• Material: Thermoplastic
• Standards: CSA, File E2186, NEMA WD-6, UL
• Wire Size: 12-4 AWG
• Horsepower: 3 hp
• Number of Poles: 3 Pole
• Number of Wires: 3 Wire Non-Grounding
• Operating Temperature: -40 degrees C
• Country of Origin: USA
