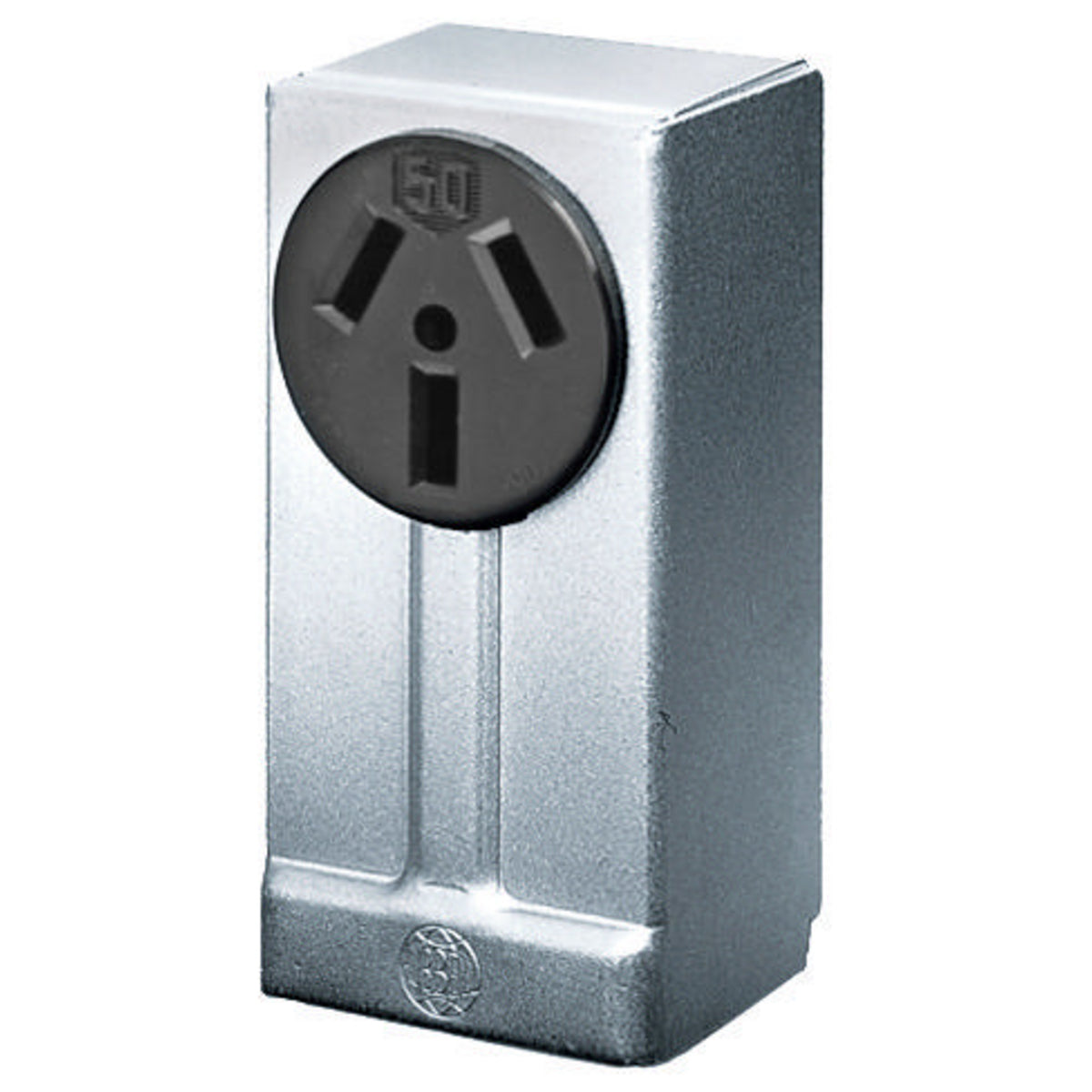

Hubbell HBL7940 HUB 3P-3W-50A-125/250 SURF RCPT

Product Description

Hubbell HBL7940 is a wiring device designed for heavy-duty applications. This straight blade receptacle operates on 125/250 VAC and accommodates 50 amps. The product features three poles and three wires, making it suitable for various industrial settings.

• Heavy Duty Non-Grounding Standard Screw Mount
• NEMA Rating 10-50R for reliable performance
• Temperature rating of -40 to 75 degrees Celsius

Product Highlights

This receptacle is ideal for industrial usage, providing durability and safety with its robust design.

Product Information

Standard Information

• Brand: Hubbell
• MPN: HBL7940

Technical Specifications

• Amperage Rating: 50 A
• Color: Black
• Dimensions: 5.06 x 2.5 x 2.06 in
• Enclosure: IP20
• Grade: Industrial
• Horsepower: 3 hp
• Material: Thermoplastic/Composite
• NEMA Rating: 10-50R
• Number of Poles: 3
• Number of Wires: 3
• Standards/Approvals: CSA Certified, NEMA WD1/WD5, UL 498 File No. E2186
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Side Wired
• Type: 1-Phase Heavy Duty Non-Grounding Standard Screw Mount
• Voltage Rating: 125/250 VAC
