Hubbell HBL7832 HWDK HBL7832 30A 600V 2P DISC SW

Product Description

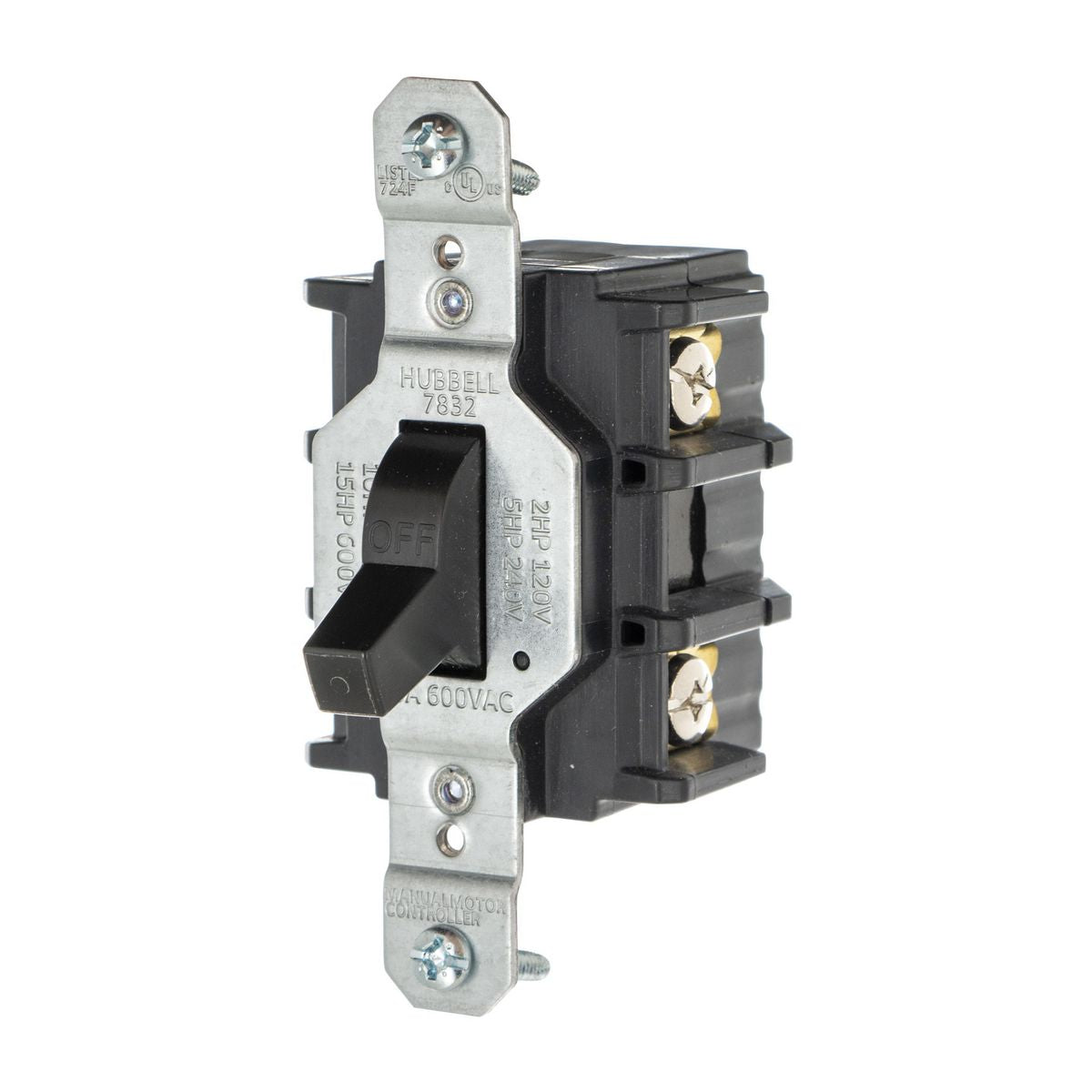

The Hubbell HBL7832 is a Circuit-Lock Manual Toggle Controller and Motor Disconnect Switch with a two-pole design, rated at thirty amps and six hundred volts. This switch is suitable for various applications requiring a reliable motor disconnect solution. It features back and side wiring for flexible installation options.

• Thermoset body for high resistance to electrical arc tracking.
• Strong ON/OFF action with quick-make, slow break operation.
• Optional Side Finger Guards for safe installations in confined spaces.

Product Highlights

This product is designed for industrial-grade applications where safety and reliability are critical. The switch ensures effective disconnection from power sources, supporting a maximum wattage of eighteen thousand watts and operating efficiently in harsh environments.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Country of Origin: China

Technical Specifications

• MPN: HBL7832
• Voltage: 600 Volt
• Current: 30 Amp
• Horsepower: 15 hp
• Weight: 0.45 lb
• Width: 4.250 in
• Height: 2-1/2 Inch
• Length: 3.7 Inch
• Material: Stainless Steel
• Number of Poles: 2 Pole
• Wattage: 18000 Watt
