Product Description

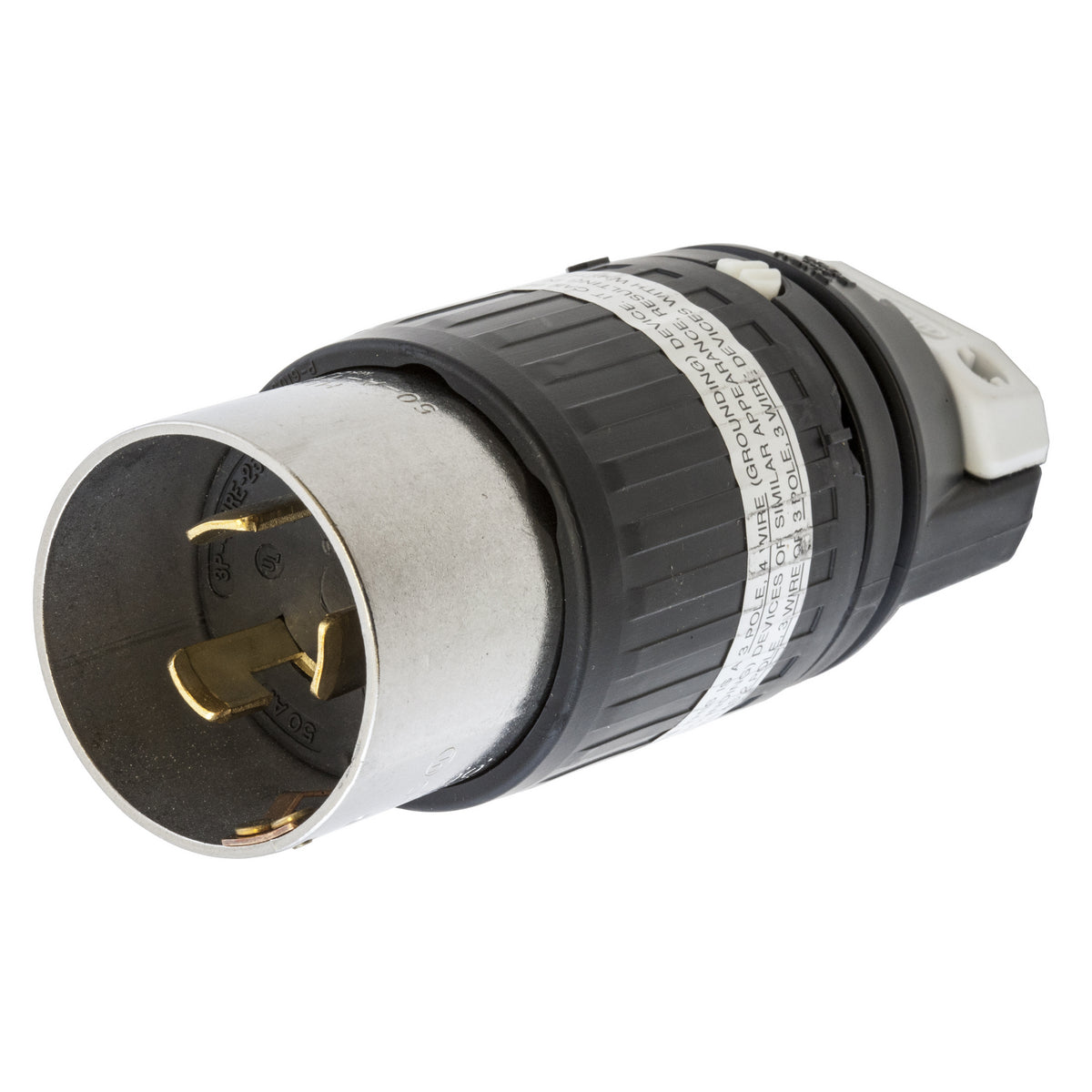

The Hubbell HBL7765C is a locking plug designed for safety and efficiency in electrical applications. This plug operates at six hundred volts alternating current and two hundred fifty volts direct current with a maximum current capacity of fifty amps. Its industrial design meets the needs of dry locations and is perfect for power connections.
- Suitable for cords with a diameter from zero point eighty-three to one point twenty-five inches.
- Rated for temperatures ranging from negative forty to seventy-five degrees Celsius.
- Constructed from durable nylon ensuring reliability.
Product Highlights
This product is ideal for indoor use, providing a secure and reliable connection.
Product Information
Standard Information
-
Application: Dry Locations, Power Connection and Indoor Applications
-
Voltage Rating: 600 VAC/250 VDC
Technical Specifications
-
Amperage Rating: 50 A
-
Color: Black/White
-
Cord Diameter: 0.83 to 1.25 in
-
Dimensions: 2.56 x 2.56 x 6.37 in
-
Enclosure: IP20
-
Grade: Industrial
-
Material: Nylon
-
Number of Poles: 3
-
Number of Wires: 4
-
Standards/Approvals: RoHS Compliant|UL 498|CSA C22.2 No. 42/0.17|UL HB Flammability Rating
-
Temperature Rating: -40 to 75 deg C
-
Terminal Type: Screw
-
Type: 1-Phase Grounding Male Cord Mount
