Product Description

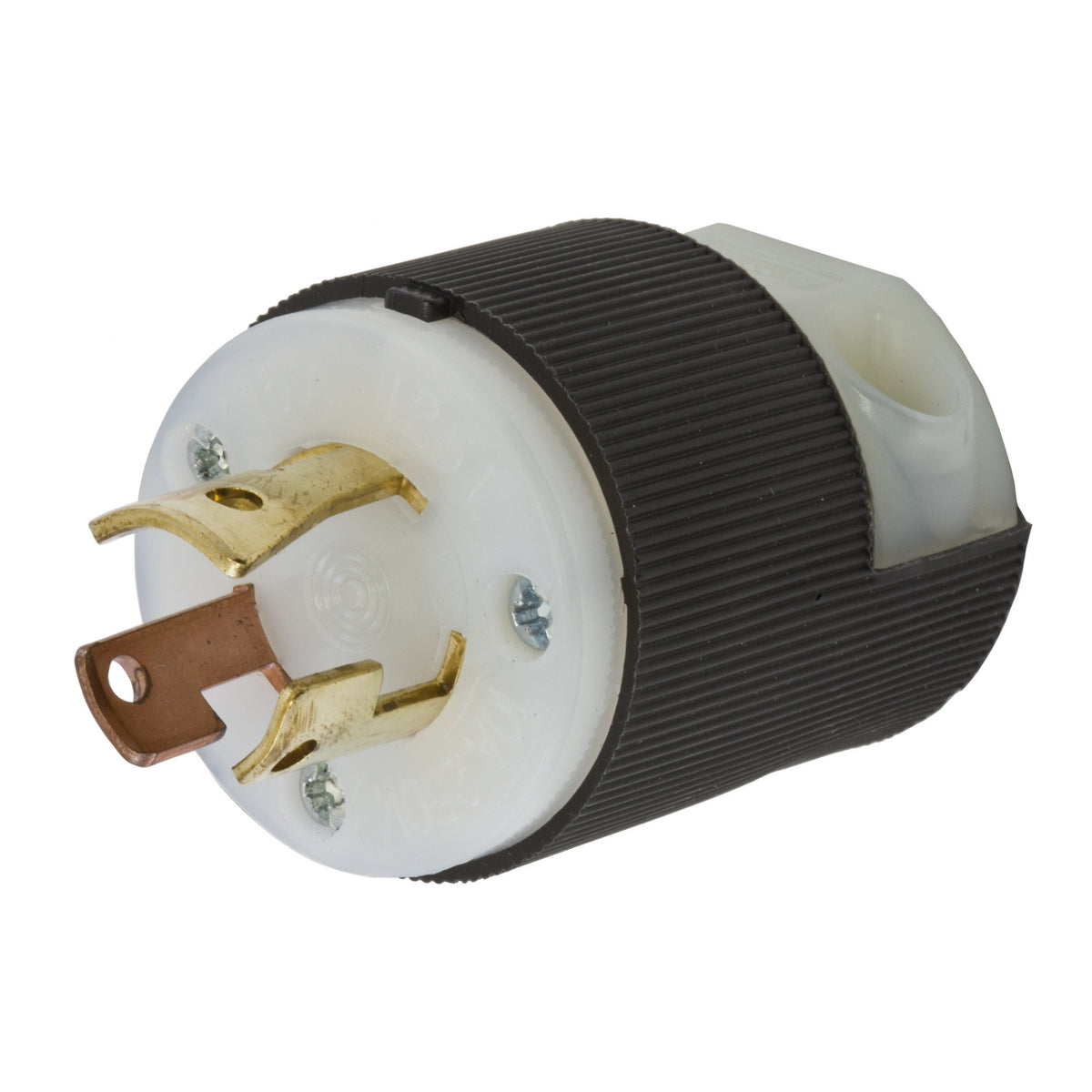

The Hubbell HBL7567C is a wiring device designed as a Twist-Lock Insulgrip locking plug for standard cord mounting. This male non-grounding plug operates at 125/250 VAC with a current rating of ten amps. It features three poles and utilizes three wires to ensure reliable power connections. The plug is suitable for industrial applications due to its robust construction and IP20 enclosure rating.
- Heavy-duty nylon shell for impact resistance
- Designed for dry locations and indoor power connections
- Compatible with cords ranging from 0.23 inches to 0.72 inches in diameter
Product Highlights
This product is built with a screw terminal design, making it easy to wire while maintaining excellent grip and durability in various environments.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Application: Dry Locations, Power Connection and Indoor Applications
Technical Specifications
-
Amperage Rating: 10 A
-
Voltage Rating: 125/250 VAC
-
Number of Poles: 3
-
Number of Wires: 3
-
Temperature Rating: -40 to 75 deg C
-
Material: Nylon
-
Dimensions: 1.53 x 1.53 x 1.97 in
-
Enclosure: IP20
