Product Description

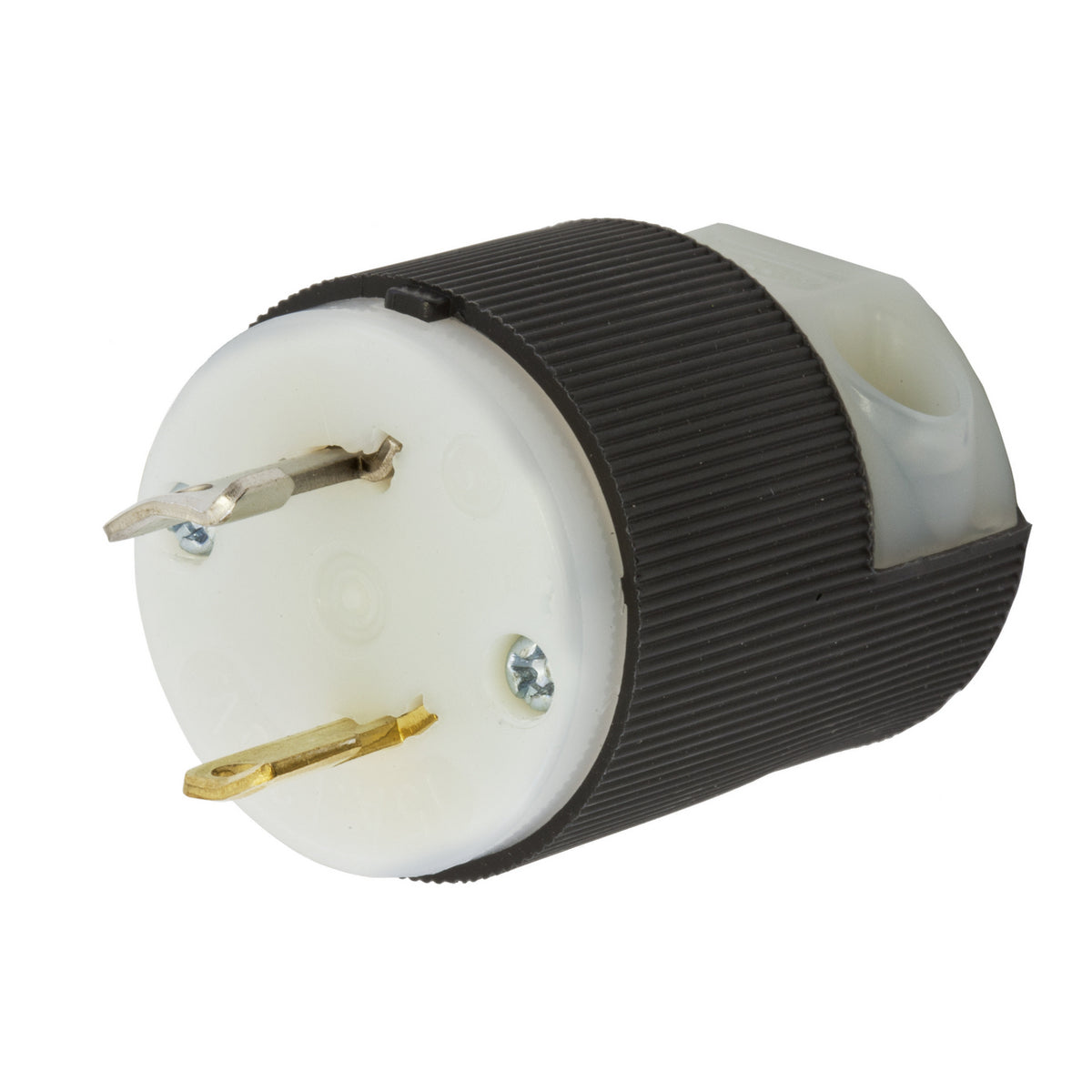

The Hubbell HBL7545C is a wiring device designed as a locking plug for power connections. This plug operates on a voltage of one hundred twenty-five volts and has a current rating of fifteen amperes. It features a twist-lock mechanism to ensure secure connections in various settings.
- Designed for power connection applications.
- Rated for use in industrial environments.
- Compatible with cords measuring between zero point twenty-three to zero point seventy-two inches in diameter.
Product Highlights
This plug is suitable for one-phase non-grounding setups, making it ideal for specialized electrical installations.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358517850
Technical Specifications
-
Amperage Rating: 15 A
-
Application: Power Connection Applications
-
Color: Black/White
-
Cord Diameter: 0.23 to 0.72 in
-
Dimensions: 1.96 x 1.52 x 1.52 in
-
Enclosure: IP20
-
Grade: Industrial
-
Horsepower: 1/2 hp
-
Material: Composite
-
NEMA Rating: L1-15P
-
Number of Poles: 2
-
Number of Wires: 3
-
Temperature Rating: -40 to 75 deg C
-
Voltage Rating: 125 VAC
-
Standards/Approvals: UL94 Flammability Rating, CSA 22.2 No. 0.6, RoHS Compliant
