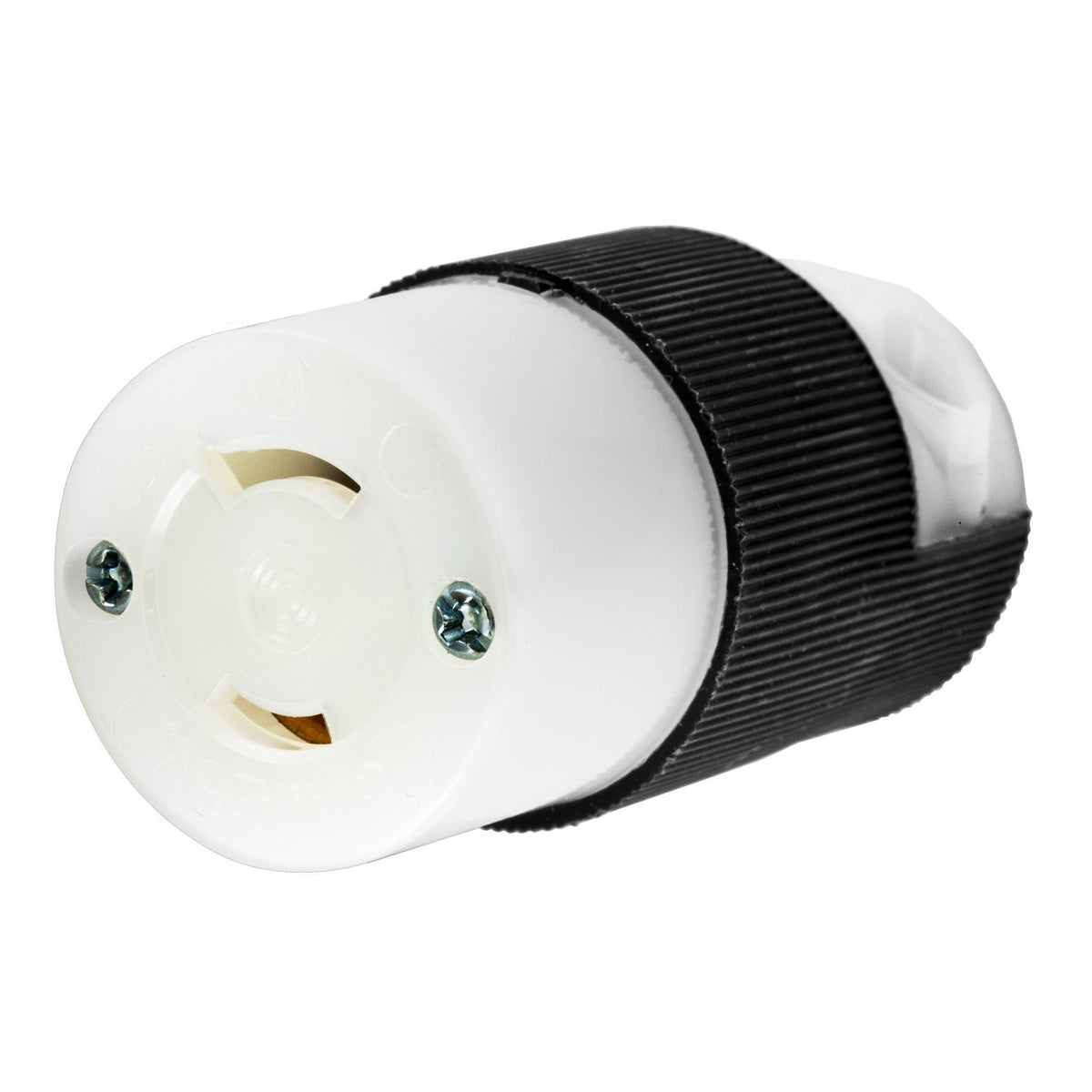

Hubbell HBL7506C 15 Amp 125 Volt 2-Pole 2-Wire NEMA L1-15R Black and White Locking Connector Body

Product Description

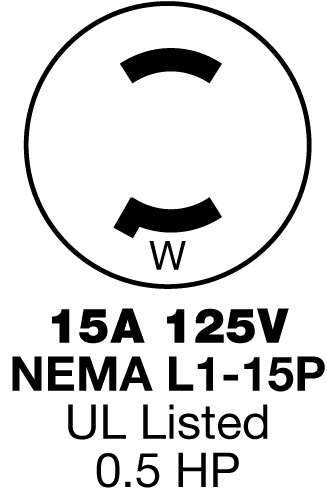

The Hubbell HBL7506C is a locking connector body designed for heavy-duty industrial applications. This connector is rated for 15 Amps and operates at 125 Volts. It features a 2-pole, 2-wire configuration with a NEMA L1-15R specification.

• Ribbed nylon housing offers a strong grip and resistance against impacts and chemicals.
• Innovative cord grip design effectively reduces strain on terminals.
• Integrated VARI-SIZE insert supports various cord diameters.

Product Highlights

This product is ideal for industrial settings, providing secure connections with an insulated body.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Current Rating: 15 Amp
• Voltage Rating: 125 Volt
• Number of Poles: 2
• Number of Wires: 2-Wire Non-Grounding

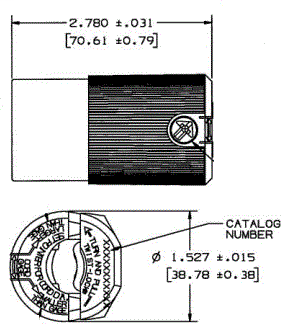

• Size: 1.53 inches by 1.53 inches by 2.78 inches
• Material: Composite
• Color: Black and White
• Temperature Rating: Maximum Continuous: 75 degrees C, Minimum Continuous: -40 degrees C without impact
