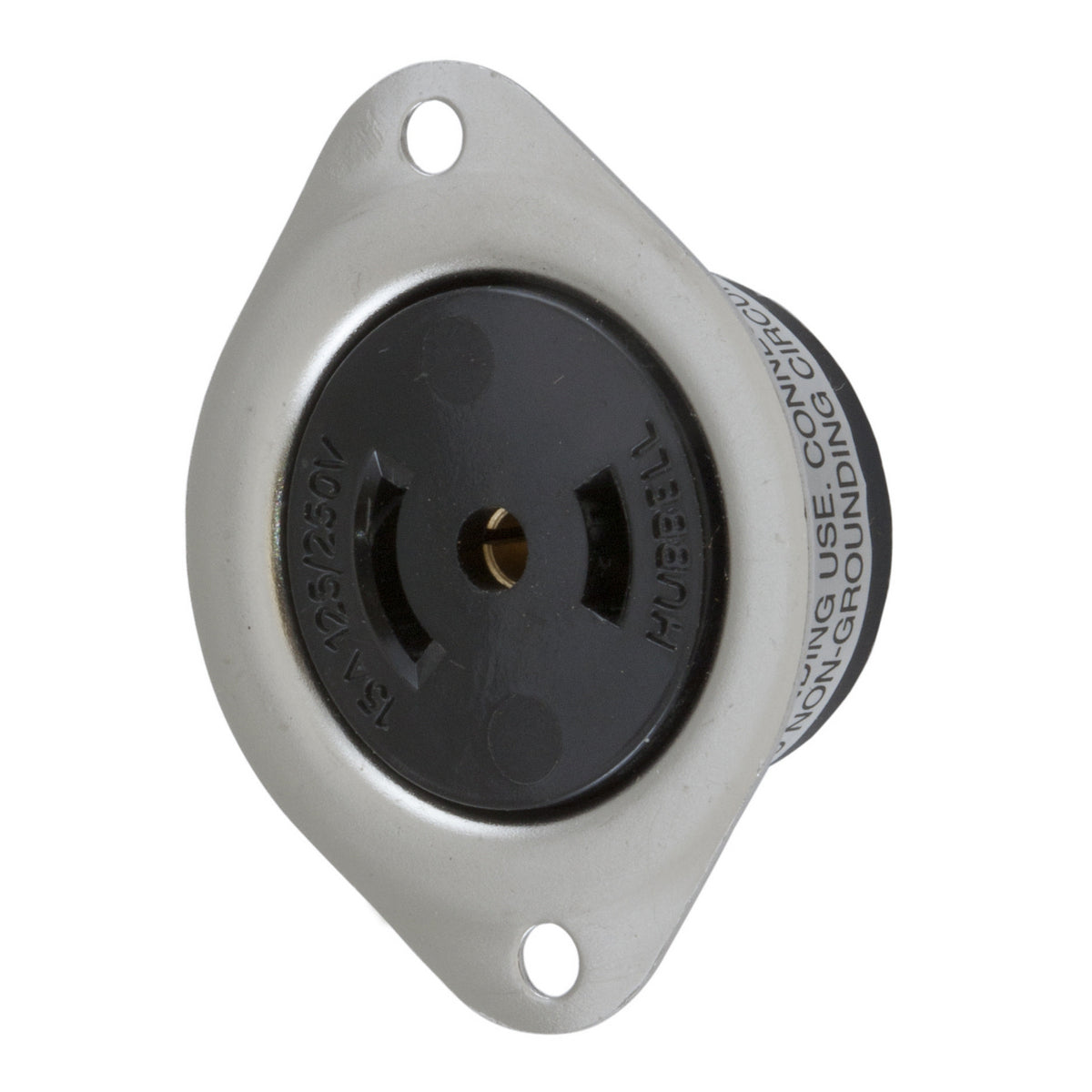

Hubbell HBL7487 HUB 15A-125/250V Flanged RCPT

Product Description

The Hubbell HBL7487 is a reliable locking receptacle designed for industrial applications. This device supports voltages of one hundred twenty-five to two hundred fifty volts and has an amperage rating of fifteen amps. It is built for durability and efficiency in dry locations and indoor settings.

• Stainless steel mounting flange
• Heavy duty phenolic base
• Fully insulated nylon casing

Product Highlights

This receptacle is made for heavy-duty use and is rated for industrial conditions. Its robust design ensures long-term performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: HBL7487

Technical Specifications

• Amperage Rating: 15 A
• Application: Dry Locations and Indoor Applications
• Color: Black
• Dimensions: 2.06 x 1.62 x 0.9 inches
• Grade: Industrial
• Material: Stainless Steel
• NEMA Rating: ML-3R
• Number of Poles: 3
• Number of Wires: 3
• Series: HBL
• Standards/Approvals: RoHS Compliant, UL 498, CSA C22.2 No. 42/0.17, UL94HB Flammability Rating, NEMA WD1/WD5
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: 1-Phase Heavy Duty Flanged Midget Non-Grounding Standard Screw Mount
• Voltage Rating: 125/250 VAC
