Product Description

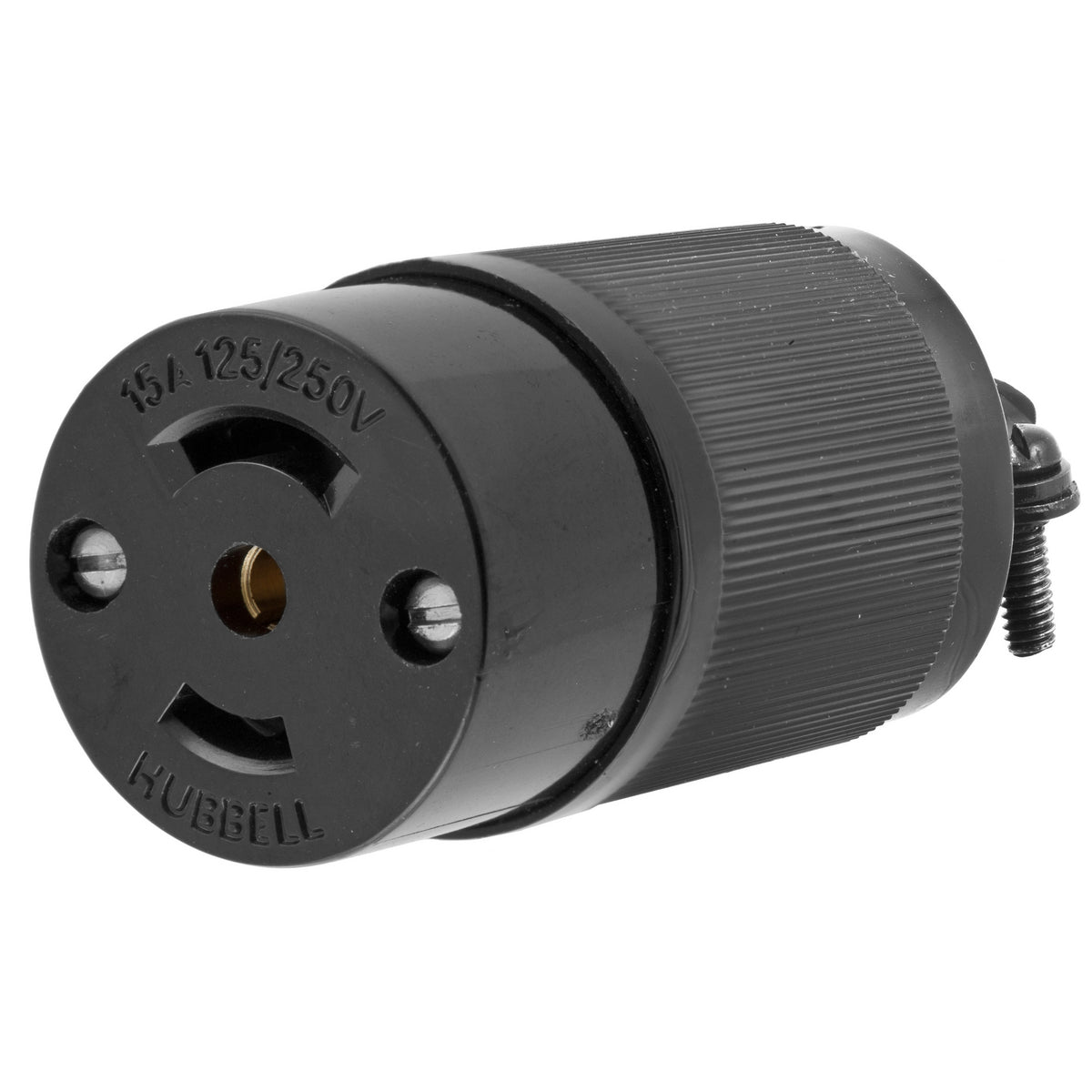

The Hubbell HBL7484 is a heavy-duty isolated non-grounding midget locking standard cord mount female connector. This connector operates at 125/250 VAC and handles a current of 15 A. It features three poles and three wires, making it suitable for various applications. This connector is composed of nylon, ensuring durability and reliability.
- Amperage rating of 15 A
- Operating temperature range from -40 to 75 degrees Celsius
- IP20 enclosure rating
Product Highlights
This connector is designed for indoor applications and is essential for maintaining safe and effective electrical connections.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Series: HBL®
Technical Specifications
-
Application: Indoor Applications
-
Color: Black
-
Cord Diameter: 0.281 to 0.421 inches
-
Dimensions: 1.17 x 1.17 x 2.42 inches
-
Enclosure: IP20
-
Grade: Industrial
-
Material: Nylon
-
NEMA Rating: ML-3R/WD1/WD5
-
Number of Poles: 3
-
Number of Wires: 3
-
Temperature Rating: -40 to 75 degrees Celsius
-
Terminal Type: Pressure Screw
-
Voltage Rating: 125/250 VAC
-
Standards/Approvals: RoHS Compliant, UL 498, CSA C22.2 No. 42, NEMA WD1/WD5
