Product Description

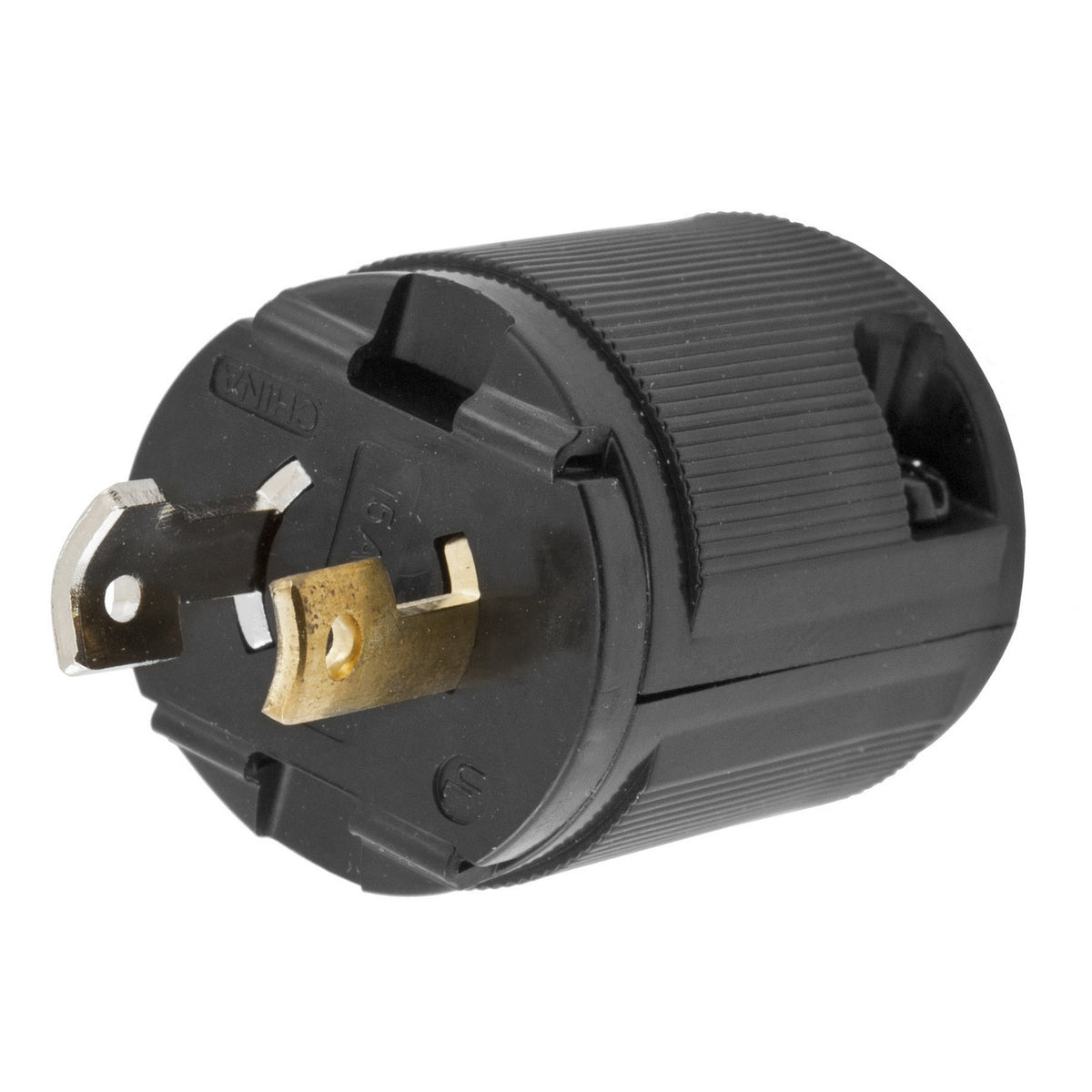

The Hubbell HBL7465V is a midget locking plug designed for one-phase, non-grounding applications. This standard cord mount is rated for 125 VAC and 15 A. It accommodates two poles and two wires, making it ideal for power connection applications. Its black nylon housing offers durability and safety in various settings.
- Suitable for 14 to 12 AWG wire sizes
- Compact dimensions of one point two five by one point zero six by one point zero six inches
- IP20 enclosure ensures protection against solid objects up to twelve millimeters
Product Highlights
The HBL7465V features brass blades and a reliable screw terminal for easy wiring connections. It is suited for commercial and industrial uses, meeting safety standards like UL 498 and CSA certification.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358523728
Technical Specifications
-
Amperage Rating: 15 A
-
Voltage Rating: 125 VAC
-
Temperature Rating: -40 to 75 degrees Celsius
-
NEMA Rating: ML-1P
-
Enclosure Grade: IP20
-
Material: Nylon
-
Dimensions: 1.25 x 1.06 x 1.06 inches
-
Standards/Approvals: UL 498, CSA Certified, RoHS Compliant
-
Terminal Type: Screw
