Product Description

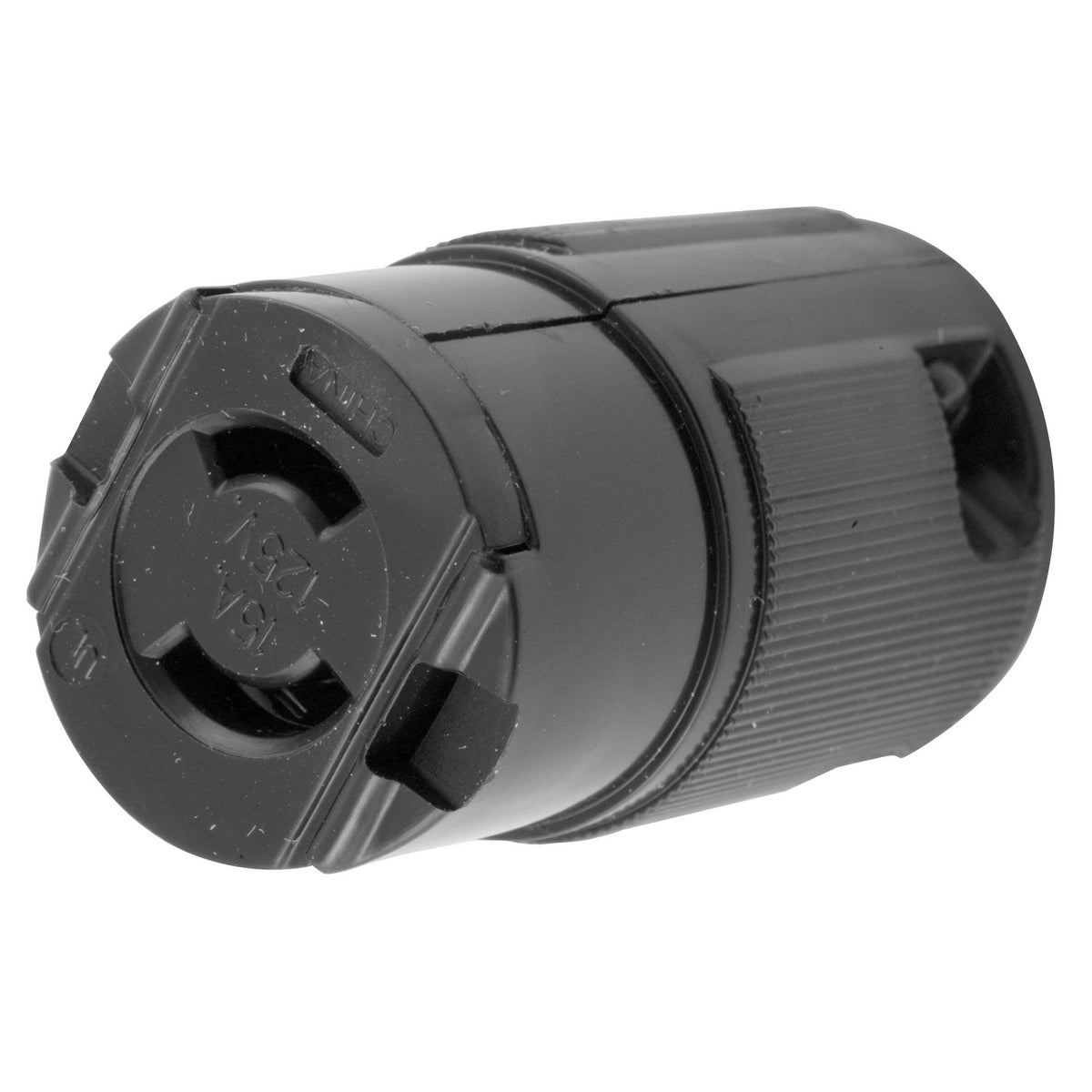

Hubbell HBL7464V is a locking connector designed for grounding heavy duty cord mount applications. It operates at 125 VAC and supports a current of up to 15 A. This connector features two poles and two wires, complying with ML-1R NEMA rating standards. It is ideal for use in industrial settings due to its robust construction and safety features.
- Rated for 125 VAC and 15 A
- Constructed with durable nylon material
- Insulation displacement terminals simplify installation and improve efficiency
Product Highlights
This model ensures safe and reliable connections for various heavy-duty applications. The design focuses on durability, user-friendliness, and compliance with industry standards.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358523725
Technical Specifications
-
Amperage Rating: 15 A
-
Color: Black
-
Cord Diameter: 0.218 to 0.375 in
-
Dimensions: 1.06 x 1.06 x 1.77 in
-
Enclosure: IP20
-
Grade: Industrial
-
Material: Nylon
-
NEMA Rating: ML-1R
-
Number of Poles: 2
-
Number of Wires: 2
-
Series: HBL®
-
Standards/Approvals: UL 498 | CSA C22.2 No. 42 Certified | NEMA WD1/WD5 | RoHS Compliant
-
Temperature Rating: -40 to 75 deg C
-
Terminal Type: Pressure Screw
-
Type: Grounding Heavy Duty Cord Mount
-
Voltage Rating: 125 VAC
