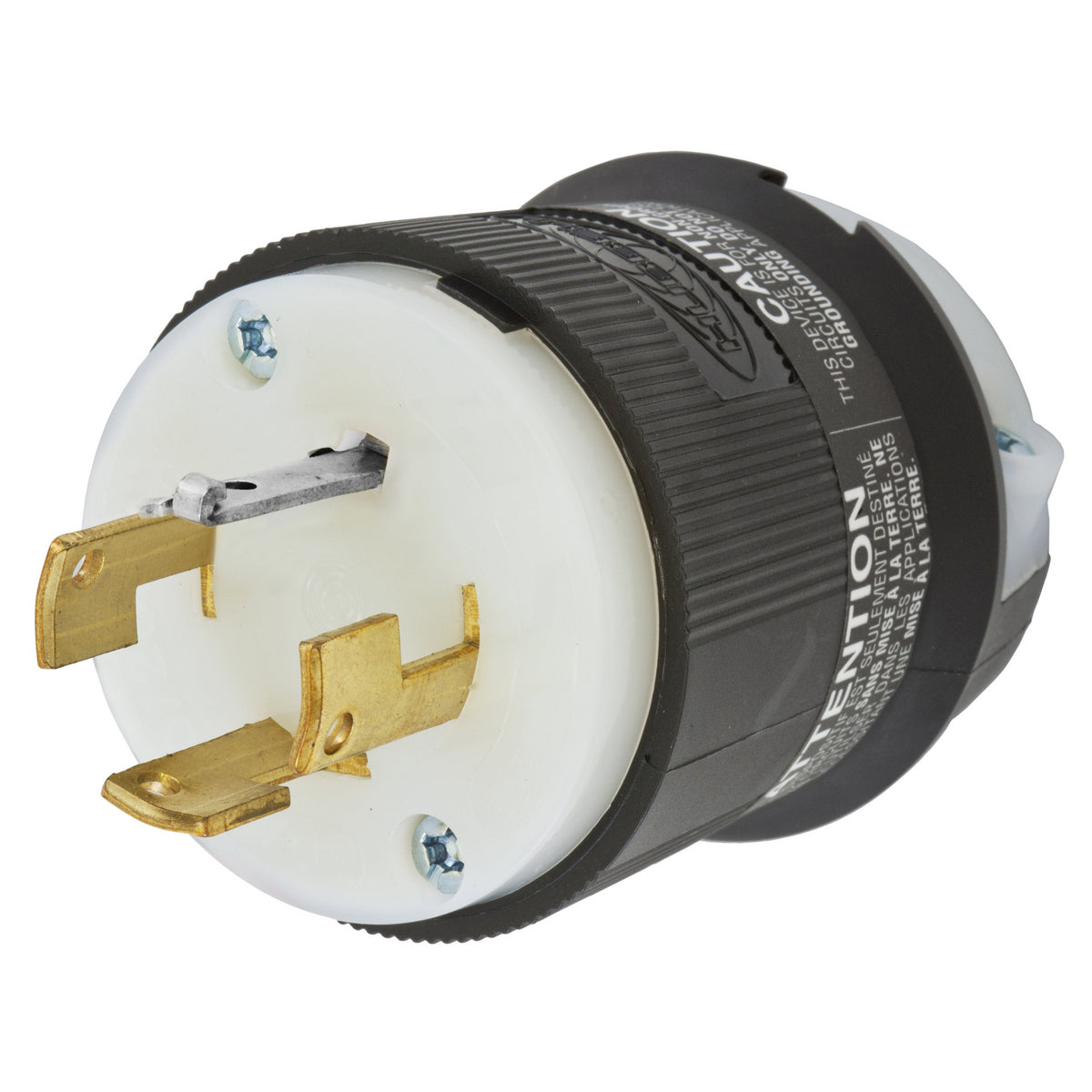

Hubbell HBL7411C HUB 4P-4W 20A-120/208V PLUG

Product Description

The Hubbell HBL7411C is a Wiring Device-Kellems Twist-Lock Insulgrip Locking Plug designed for industrial use. This plug is suitable for 3-phase power applications with a voltage rating of 120/208 VAC and an amperage rating of 20 A. It features a durable nylon construction with a black and white finish. The design accommodates cord diameters ranging from 0.35 to 1.15 inches and is rated for an operating temperature between -40 to 75 degrees Celsius.

• 3-phase extra heavy duty grounding cord mount
• Locking mechanism for secure connection
• IP20 enclosure for indoor use

Product Highlights

The Hubbell HBL7411C is built for reliable power connections in demanding environments. Its locking feature ensures a secure and stable connection, critical for industrial applications involving heavy machinery.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358503756

Technical Specifications

• Amperage Rating: 20 A
• Application: Power Connection Applications
• Color: Black/White
• Cord Diameter: 0.35 to 1.15 in
• Dimensions: 2.33 x 2.33 x 2.75 in
• Enclosure: IP20
• Grade: Industrial
• Manufacturer Part Number: HBL7411C
• Material: Nylon
• Number of Poles: 4
• Number of Wires: 4
• Standards/Approvals: CSA Certified, RoHS Compliant, UL Listed
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: 3-Phase Extra Heavy Duty Grounding Cord Mount
• Voltage Rating: 120/208 VAC
