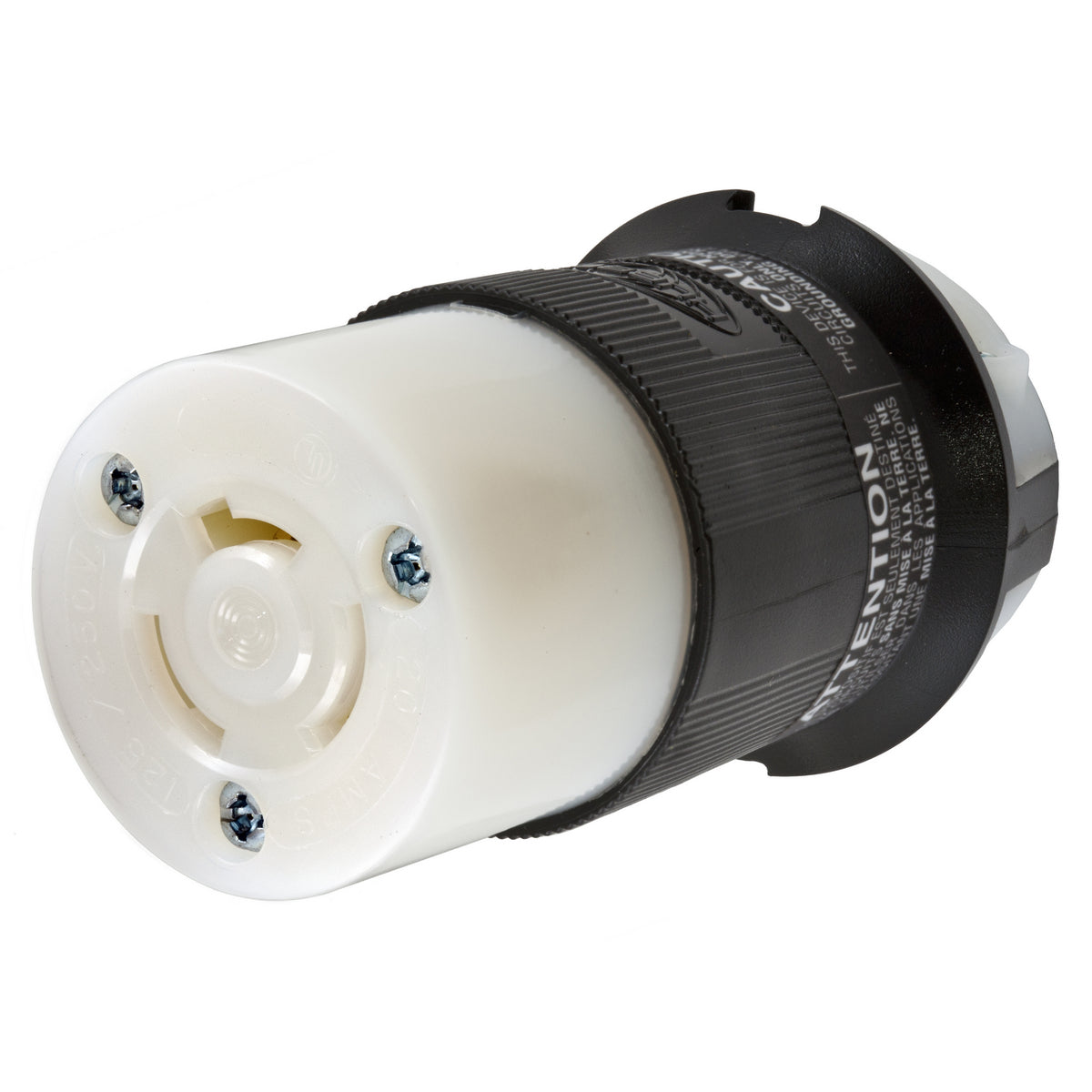

Hubbell HBL7314C HUB 3W CONN BODY 7314CAH

Product Description

The Hubbell HBL7314C is a female non-grounding standard cord mount connector. This product is designed for use in heavy-duty industrial applications and is suitable for indoor dry environments. It operates at a voltage rating of one hundred twenty-five to two hundred fifty volts AC. The connector has a current rating of twenty amps and features three poles and three wires.

• Integral dust shield to protect the wiring chamber
• Withstands a minimum dielectric voltage of two thousand VAC
• Ribbed nylon housing for improved grip and resistance

Product Highlights

This connector is robust and reliable, made for industrial-grade applications. It supports wire sizes from fourteen to twelve AWG. The temperature range is from minus forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL7314C

Technical Specifications

• Amperage Rating: 20 A
• Application: Heavy Duty Industrial Applications and Indoor Dry Environment
• Color: Black/White
• Cord Diameter: 0.36 to 0.93 inches
• Dimensions: 2.26 x 2.26 x 3.86 inches
• Enclosure: IP20
• Grade: Industrial
• Material: Nylon
• Number of Poles: 3
• Number of Wires: 3
• Series: HBL
• Standards/Approvals: RoHS Compliant, CSA 22.2 No. 0.6, UL 498, CSA C22.2 No. 42
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Pressure Screw
• Type: Female Non-Grounding Standard Cord Mount
• Voltage Rating: 125/250 VAC
