Hubbell HBL7302C HUB 4P4W 60A 120/208V ANG PLUG NEMA 18-60P

Product Description

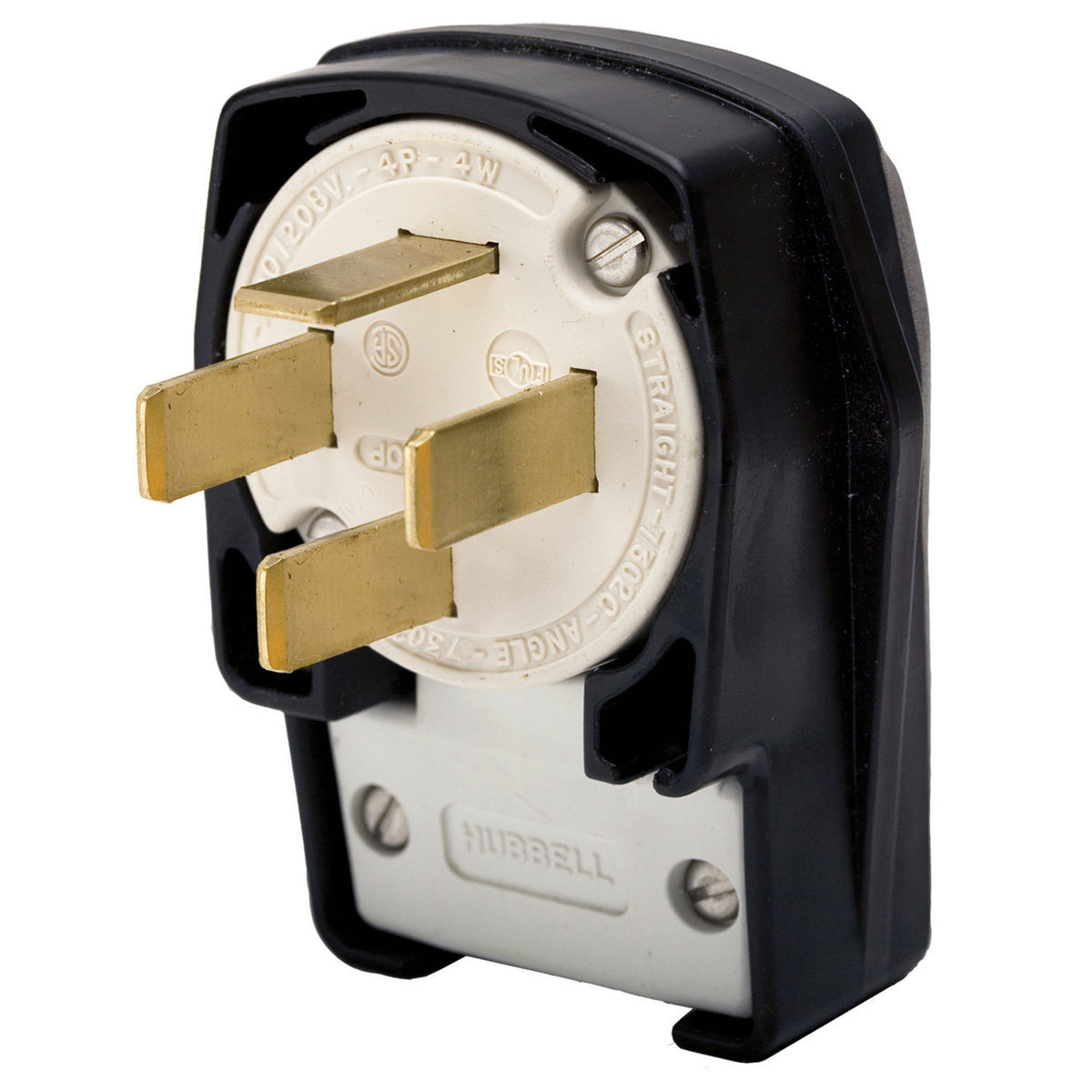

The Hubbell HBL7302C is a 3-phase angled heavy-duty non-grounding male cord mount straight blade plug. It operates at a voltage of 120/208 VAC and provides a current rating of sixty amperes. This plug features four poles and four wires, compliant with NEMA 18-60P standards. The design is suitable for commercial and industrial applications.

• Rated for 60 Amps
• Accepts cord diameters from 0.625 to 1.31 inches
• Manufactured with nylon material for durability

Product Highlights

The Hubbell HBL7302C plug combines heavy-duty construction with electrical safety features, making it ideal for rigorous usage in industrial environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358501537

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 120/208 VAC
• Horsepower: 7.5 hp
• Number of Poles: 4
• Number of Wires: 4
• Cord Diameter: 0.625 to 1.31 inches
• Dimensions: 4.13 x 2.88 x 2.88 inches
• Material: Nylon
• NEMA Rating: 18-60P
• Grade: Commercial/Industrial
• Enclosure: IP20
• Terminal Type: Screw
• Standards/Approvals: RoHS Compliant, UL 498, NEMA WD1/WD5
