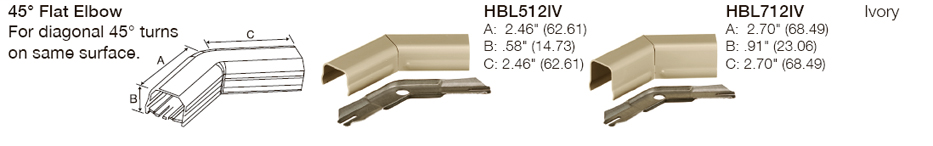

Hubbell HBL712IV Metal Raceway 45 Degree Flat Elbow

Product Description

The HUBBELL HBL712IV is a 45-degree flat elbow fitting designed for use with the HBL750 Series metal raceway system. This elbow allows installers to redirect surface-mounted wiring runs at a 45-degree angle while keeping conductors fully enclosed within a rigid metal channel. It is an ivory-finish component matched to the HBL750 raceway system and is typically installed by licensed electricians during branch-circuit wiring work in commercial and light industrial environments.

This fitting is suited for surface raceway installations where horizontal wiring runs require a directional change on flat wall or ceiling surfaces. The HBL750 Series metal raceway system is commonly used in offices, classrooms, healthcare facilities, and commercial spaces where exposed conduit is not acceptable and where aesthetics and conductor protection are both priorities. The ivory finish blends with standard interior wall finishes.

Key Features

• 45-degree flat elbow geometry allows smooth directional transitions in surface-mounted raceway runs
• Designed specifically for use with the HUBBELL HBL750 Series metal raceway system
• Ivory finish matches standard interior wall and trim colors
• Metal construction provides durable conductor protection and grounding continuity within the raceway
• Surface-mount design keeps wiring accessible without opening walls or ceilings

Compatibility

Designed as an OEM-matched fitting for the HUBBELL HBL750 Series metal surface raceway system.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable NEC requirements for surface metal raceway systems. De-energize all circuits in the work area before handling conductors or securing raceway components. Secure the elbow fitting to wall or ceiling surfaces using appropriate fasteners for the substrate type. Verify that all raceway sections and fittings are bonded to maintain grounding continuity throughout the run.

Technical Specifications

• Series: HBL750
• Type: 45-Degree Flat Elbow
• Finish/Color: Ivory
• Material: Metal
• UPC: 783585218540

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL712IV
