Hubbell HBL7101C HUB 2P-2W-20-250V Connector

Product Description

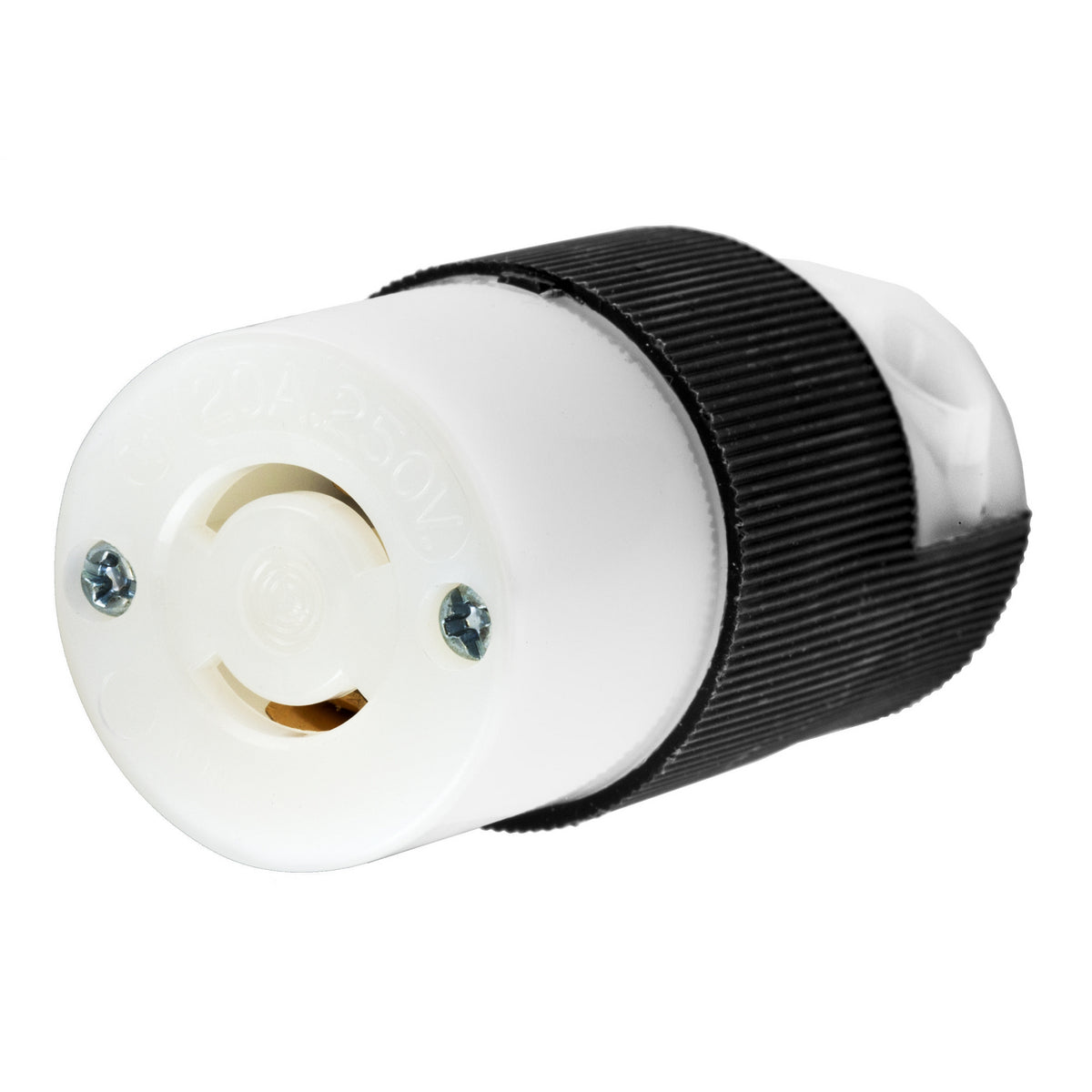

The Hubbell HBL7101C is a heavy-duty female non-grounding insulated standard cord mount locking connector. It works with two poles and two wires. The connector operates at a voltage rating of two hundred fifty volts alternating current and has a twenty-amp rating. It fits cords with a diameter ranging from zero point twenty-three to zero point seventy-two inches.

• Insulated nylon construction
• Pressure screw terminal for secure connection
• IP20 enclosure rating for indoor use

Product Highlights

This connector is suitable for heavy-duty industrial applications. The design ensures non-current carrying parts remain insulated to prevent accidents.

Product Information

Standard Information

• Manufacturer: Hubbell
• Type: Heavy Duty Female Non-Grounding Insulated Standard Cord Mount

Technical Specifications

• Amperage Rating: 20 A
• Application: Heavy Duty Industrial Applications
• Color: Black/White
• Cord Diameter: 0.23 to 0.72 in
• Dimensions: 1.53 x 1.53 x 2.78 in
• Enclosure: IP20
• Grade: Industrial
• Horsepower: 2 hp
• Material: Nylon
• NEMA Rating: L2-20P
• Number of Poles: 2
• Number of Wires: 2
• Standards/Approvals: RoHS Compliant, UL 498, NEMA WD1/WD5
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Pressure Screw
• Voltage Rating: 250 VAC
