Product Description

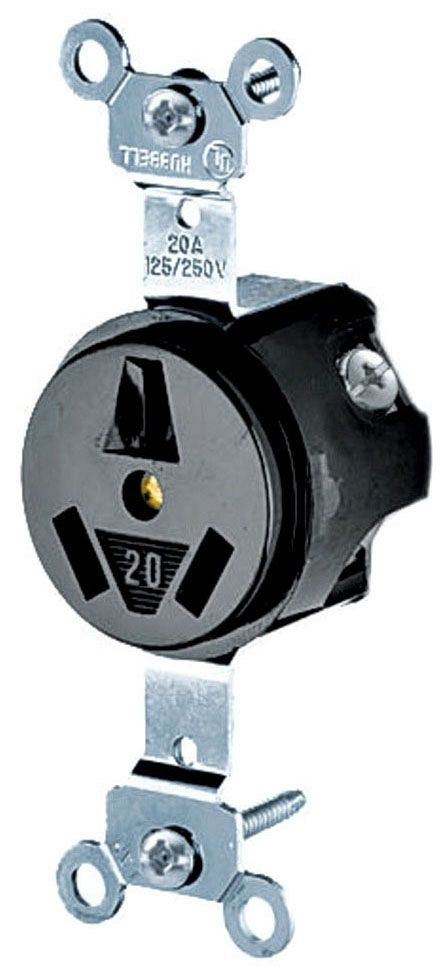

The Hubbell HBL6810 is a straight blade receptacle designed for industrial applications. This wiring device supports one-phase extra heavy-duty non-grounding connections. It accommodates voltages from one hundred twenty-five to two hundred fifty volts and is rated for twenty amps. The device is suitable for side wired terminal installations.
- Rated for 125/250 VAC
- Holds 20 A with 2 hp capacity
- Features a durable thermoplastic/composite housing
Product Highlights
The Hubbell HBL6810 is built for reliability in demanding environments. It is designed to handle heavy-duty tasks with a focus on safety and efficiency.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358501440
Technical Specifications
-
Amperage Rating: 20 A
-
Color: Black
-
Dimensions: 3.28 inches x 1.39 inches x 0.97 inches
-
Enclosure: IP20
-
Grade: Industrial
-
Horsepower: 2 hp
-
Manufacturer Part Number: HBL6810
-
Material: Thermoplastic/Composite
-
NEMA Rating: 10-20R
-
Number of Poles: 3
-
Number of Wires: 3
-
Standards/Approvals: RoHS Compliant, CSA C22.2 No. 42 File No. 280C, NEMA WD1/WD5, UL 498 File No. E1706
-
Temperature Rating: -40 to 75 degrees C
-
Terminal Type: Side Wired
-
Type: 1-Phase Extra Heavy Duty Non-Grounding Standard Screw Mount
-
Voltage Rating: 125/250 VAC
