Hubbell HBL6083 HUBBELL WATERTIGHT FD BOX 22 cu-in 3/4

Product Description

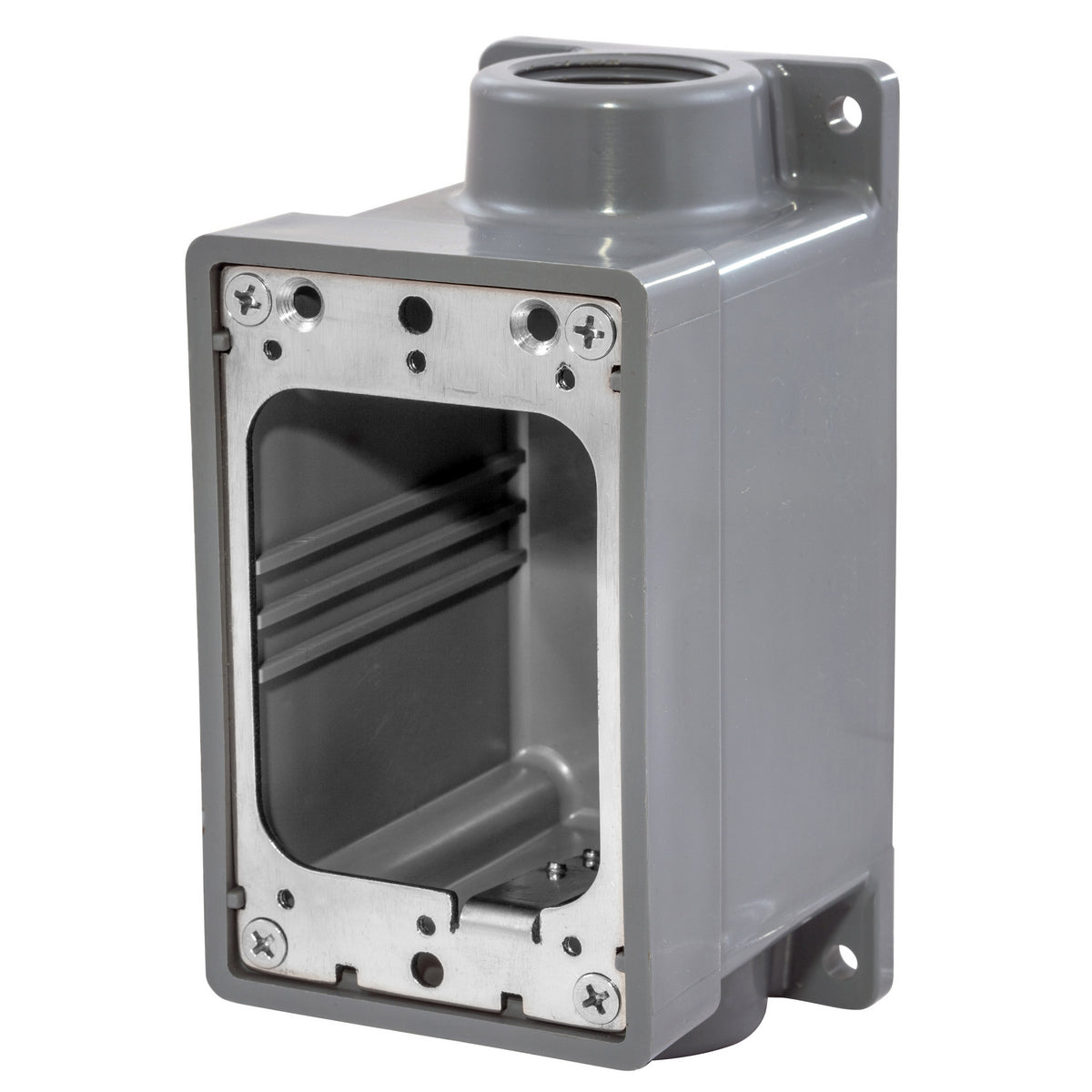

The Hubbell HBL6083 is a non-metallic standard watertight molded FD box. It is designed for industrial and commercial applications. This box has a capacity of twenty-two cubic inches and includes one outlet. It features a three-quarter inch NPT knockout. The operational temperature range is from negative forty to seventy-five degrees Celsius. The box allows for threaded mounting to ensure secure installation.

• Non-metallic construction for durability
• Threaded mounting orientation for stability
• Designed for wet and dry locations

Product Highlights

This device box is suited for use in environments where moisture exposure could be an issue. It is compliant with multiple standards ensuring safety and reliability.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358552879

Technical Specifications

• Type: Non-Metallic Standard Watertight Molded
• Color: Gray
• Application: Industrial and Commercial Applications
• Knockout Size: 3/4 in NPT
• Mounting Orientation: Threaded
• Number of Outlets: 1
• Temperature Rating: -40 to 75 deg C
• Standards/Approvals: RoHS Compliant, UL 514C, UL 50E, CSA C22.2 No. 42, NEMA WD1/WD6, ANSI Specified
