Hubbell HBL5969VBLK Valise Conn, 15A 125V, 5-15R, BK

Product Description

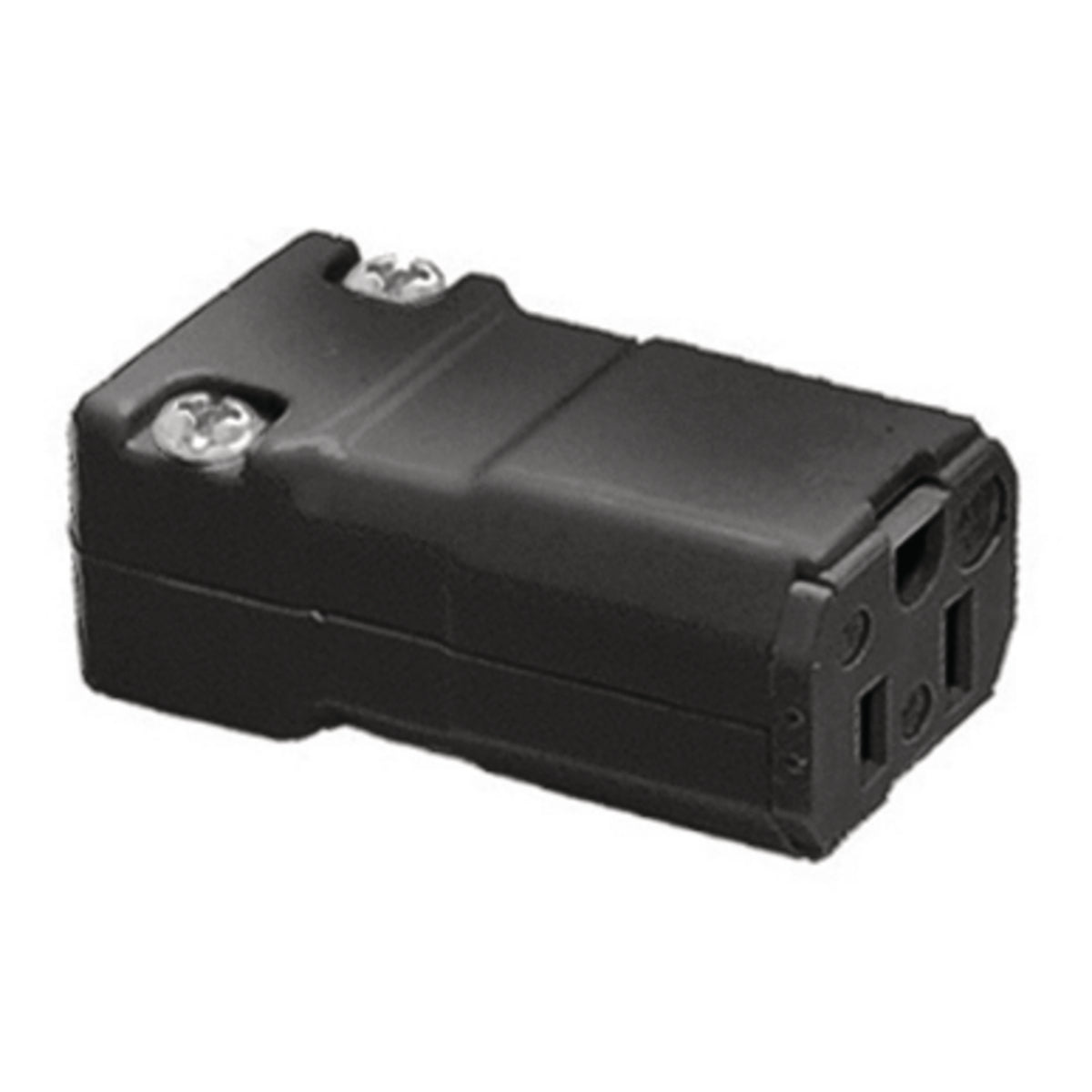

The Hubbell HBL5969VBLK is a Valise connector designed for insulated cord mounting. This product is rated for 15 Amps and 125 Volts, making it suitable for various applications in commercial and industrial settings. It features a black nylon body and is compliant with multiple safety standards.

• 15 Amp, 125 Volt Rating
• Insulated Cord Mounting
• IP20 Enclosure

Product Highlights

This connector is ideal for applications requiring durable and reliable connections in electrical systems.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358501327

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Horsepower: 1/2 hp
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.22 to 0.66 in
• Temperature Rating: -40 to 75 deg C
• Material: Nylon
• Enclosure: IP20
• NEMA Rating: 5-15R
• Standards/Approvals: UL 498, File No. E1706 Listed, UL 94-HB Flammability Rating, CSA C22.2 No. 42, 280, NEMA WD1/WD5, RoHS Compliant
