Product Description

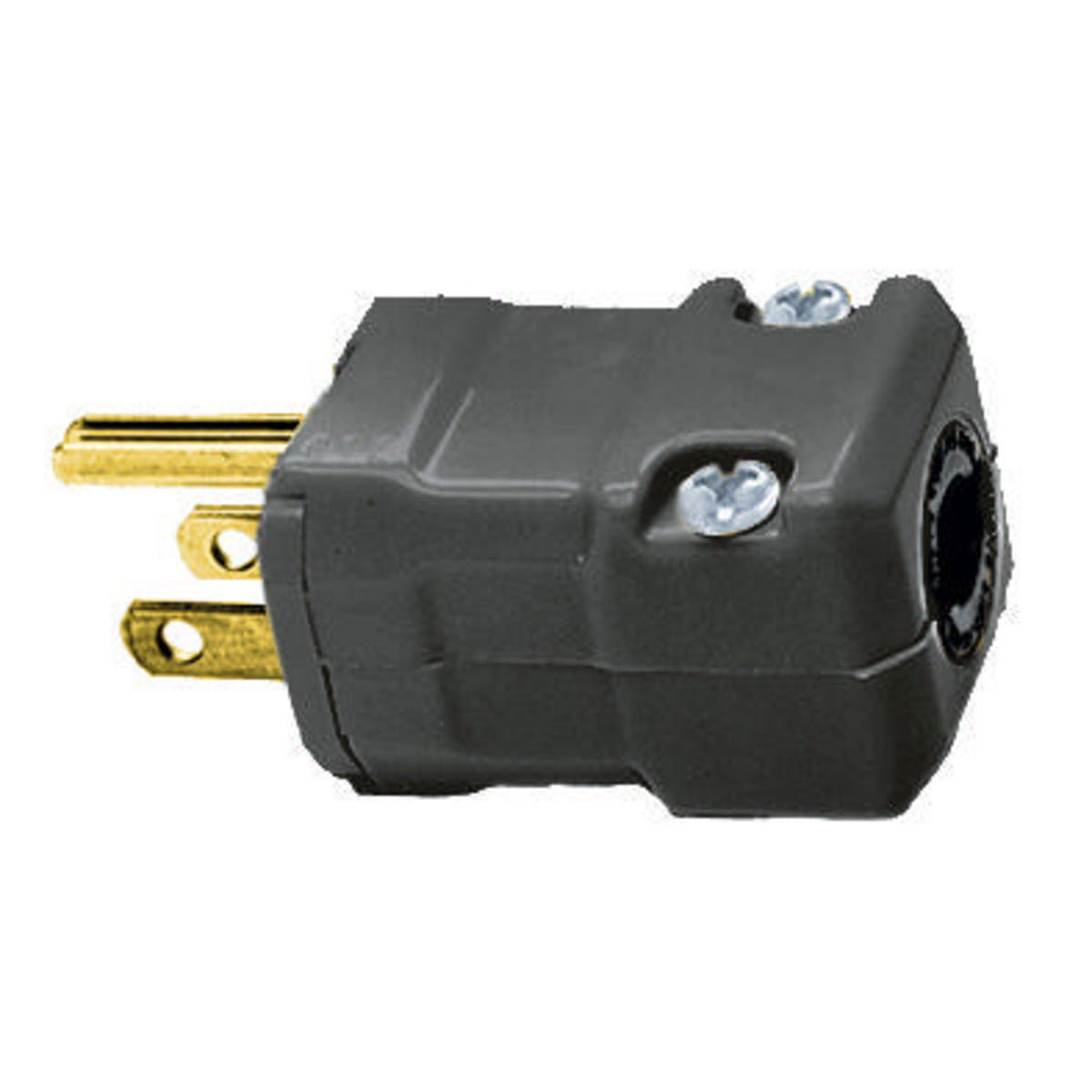

The Hubbell HBL5965VBLK is a straight blade plug designed for use in portable power applications. This 15 amp, 125 volt plug is suitable for commercial and industrial grade use. It features a 5-15P configuration, ensuring compatibility with standard outlets.
- Certified for current interrupting at full rated current
- Temperature rise is limited to 30 degrees Celsius at full rated current
- Designed for easy wiring with captive assembly screws
Product Highlights
The Hubbell Valise Plug offers reliable performance with a robust design suited for a variety of indoor environments.
Product Information
Standard Information
-
Brand: Hubbell
-
MPN: HBL5965VBLK
Technical Specifications
-
Amperage Rating: 15 A
-
Application: Dry location and indoor applications
-
Color: Black
-
Cord Diameter: 0.22 to 0.66 inches
-
Dimensions: 1.87 x 1.12 x 1.87 inches
-
Enclosure: IP20
-
Grade: Commercial/Industrial
-
Horsepower: 2 hp
-
Material: Polycarbonate
-
NEMA Rating: 5-15P
-
Number of Poles: 2
-
Number of Wires: 3
-
Temperature Rating: -40 to 75 degrees Celsius
-
Terminal Type: Screw
-
Voltage Rating: 125 VAC
-
Standards/Approvals: UL 498 File No. E1706, UL 94 V-2, CSA C22.2 File No. 42, NEMA WD1/WD5/WD6, RoHS Compliant
