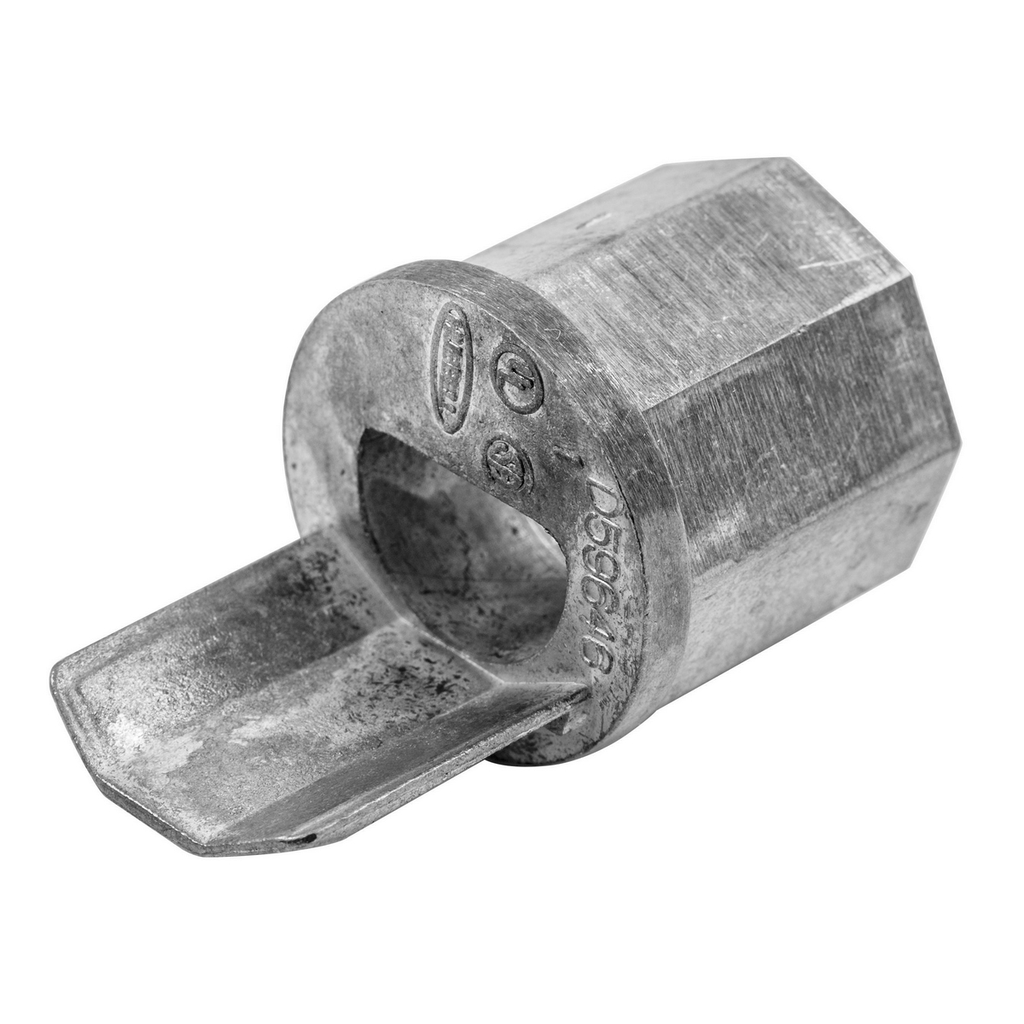

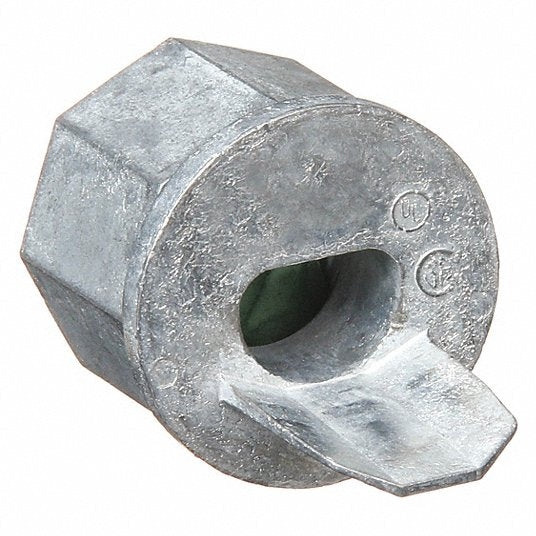

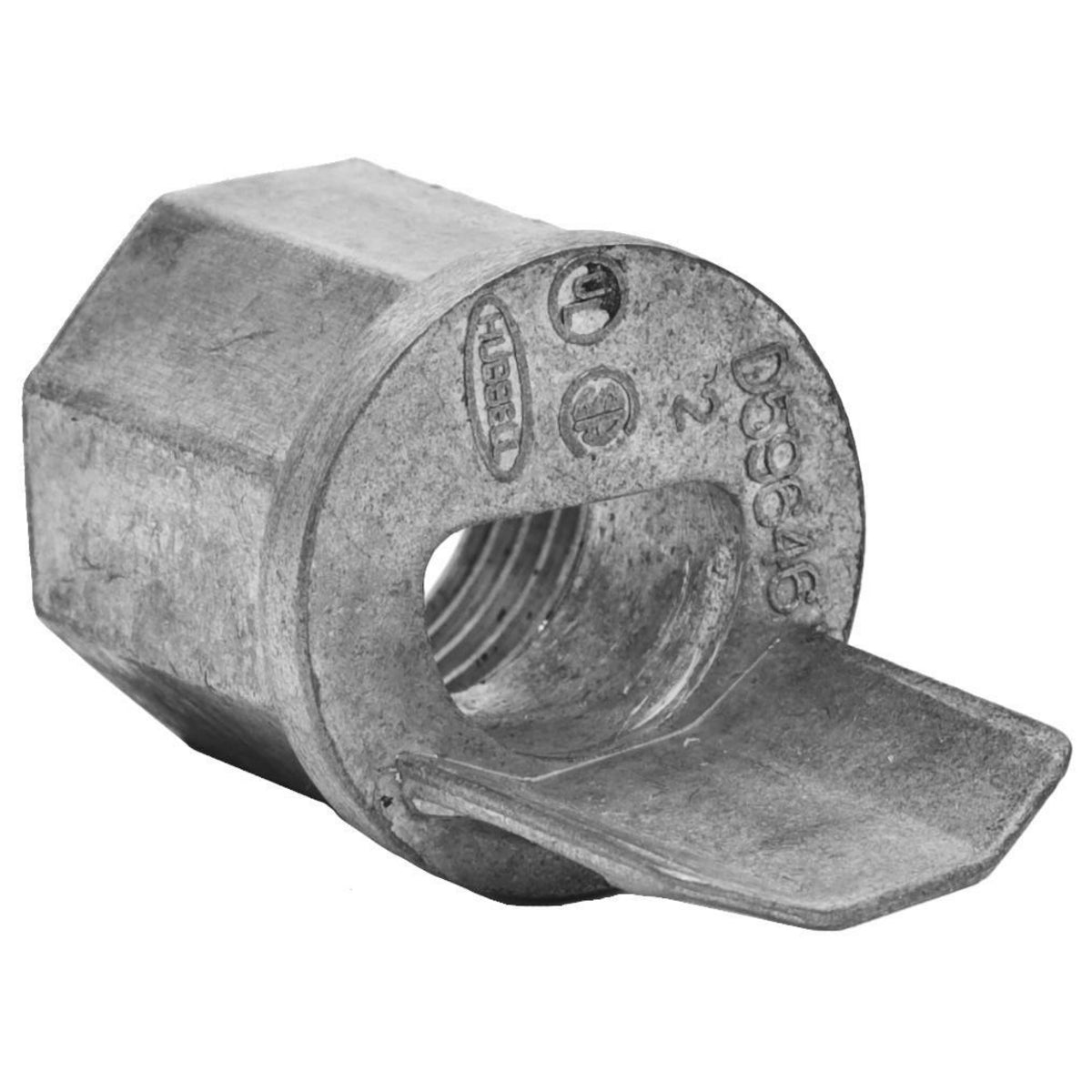

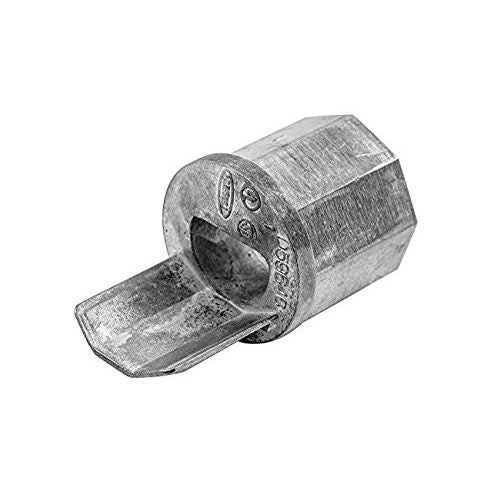

Hubbell HBL5782C Conduit Connector, 1/2 in, For Use With HBL500 and HBL750 Single Channel Metal Raceways

Product Description

The HUBBELL HBL5782C is a conduit connector designed for connecting raceway to conduit. It is designed for use with HBL500 and HBL750 single channel metal raceways. This steel connector enhances datacom capabilities and is the largest single channel, low-profile raceway available in its class.

• For connecting raceway to conduit
• Enhanced datacom capabilities
• Largest single channel, low-profile raceway available in its class

Product Highlights

The HBL5782C conduit connector is ideal for datacom and oversized neutral applications, offering enhanced connectivity and a low-profile design.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL5782C
• Country of Origin: China

Technical Specifications

• For Use With: HBL500 and HBL750 Single Channel Metal Raceways
• Size: 1/2 in
• Material: Steel
• Mounting Type: Press Fit
• Catalog ID: HWDHBL5782C
• Dimensions: 1-3/4 in W
• Finish: Zinc Plated
• Suitable For Use With: HBL500 and HBL750 Single Channel Metal Raceways
• Application: For datacom and oversized neutral applications
• Standard & Approvals: L5 E253976, E253830, E253833, 386 NEC, ANSI/TIA-569-B, C22.2 NO 62, LR87514
• Series: HBL500\nHBL700\nHBL750
• Style: Connector
• Type: Miscellaneous Fittings
• Product Type: End Fittings & Connectors
• Basic Material: Steel
• Item: Conduit Connector
• Raceway Height: 3/4 in
• Raceway Width: 3/4 in
• W: 1-3/4 in
• H: 3/4 in
• L: 3/4 in
• Compatible with Product Type: HBL500 Raceways; HBL700 Raceways; HBL750 Raceways
• Features: 3/4 in (19.1mm) Female for Connecting Raceway to Conduit
• Standards: CSA; UL Listed
• Includes: (1) 3/4 in Conduit Connector
• Manufacturer Part Number: HBL5782C
• UNSPSC: 39121203
• Nominal_Cross_Section: .40 Square Inches
• Non_Hazardous_Location: Non-Hazardous
• Special Features: Allows up to three category 5e, or two category 6 cables Complete line of transition fittings for HBL500 series metal raceway Enhanced datacom capabilities For connecting raceway to conduit Largest single channel, low-profile raceway available in its class
• Standard: UL 5
• Sub_Brand: Hubbell Wiring Device-Kellems
• Country of Origin: China
• Metallic Raceway: Enclosure
• Product Series: HBL500,HBL700,HBL750
• Product UPC: 78358521729
• Used With: HBL500, HBL700 and HBL750 Series Raceways
