Hubbell HBL5782A Metal Raceway 3/4 inches Conduit Connector HBL500/HBL750 Series

Product Description

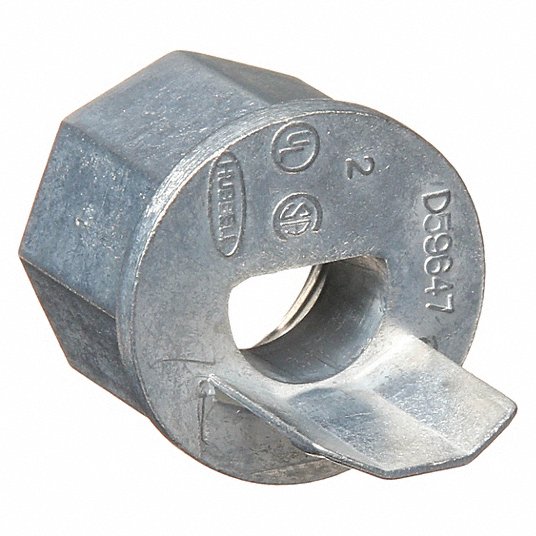

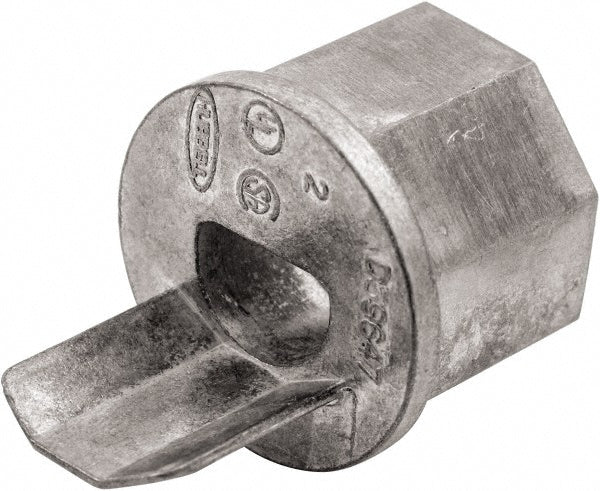

The HUBBELL HBL5782A is a galvanized 3/4" conduit connector designed for HBL500/HBL750 series metal raceways. This steel connector facilitates the connection of raceways to conduit with a 1/2 in FNPT fitting. It is suitable for use with HBL500, HBL700, and HBL750 series raceways.

• Made of steel
• Connects raceway to conduit with 1/2 in FNPT
• Compatible with HBL500, HBL700, and HBL750 series raceways

Product Highlights

The HUBBELL HBL5782A conduit connector provides a reliable connection between metal raceways and conduit systems.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL5782A
• Country of Origin: China

Technical Specifications

• Catalog Number: HBL5782A
• Item Type: Combination HBL500/HBL750 Series
• Material: Steel
• Series: HBL500; 700; 750
• Style: Connector
• Type: Miscellaneous Fittings
• UPC: 783585217284
• Industry Standard(s): CSA Standard C22.2 no. 62 E253976 /E253830 /E253833 UL Standard UL 5
• Product Type: Connector/Coupling
• Basic Material: Steel
• Item: Conduit Connector
• Raceway Height: 3/4 in
• Raceway Width: 3/4 in
• Compatible with Product Type: HBL500 Raceways; HBL700 Raceways; HBL750 Raceways
• Features: For Connecting Raceway to Conduit 1/2 in FNPT
• Standards: CSA; UL
• Listed: Listed
• Includes: (1) 1/2 in Conduit Connector
• Manufacturer Part Number: HBL5782A
• Overall Length: 44.00 mm; 1.7500 in
• For Use With: HBL750 Series Raceways; HBL500 Series Raceways
