Hubbell HBL5747IVA R Way, 1G Box, Shal, HBL500/700/HBL750, IV

Product Description

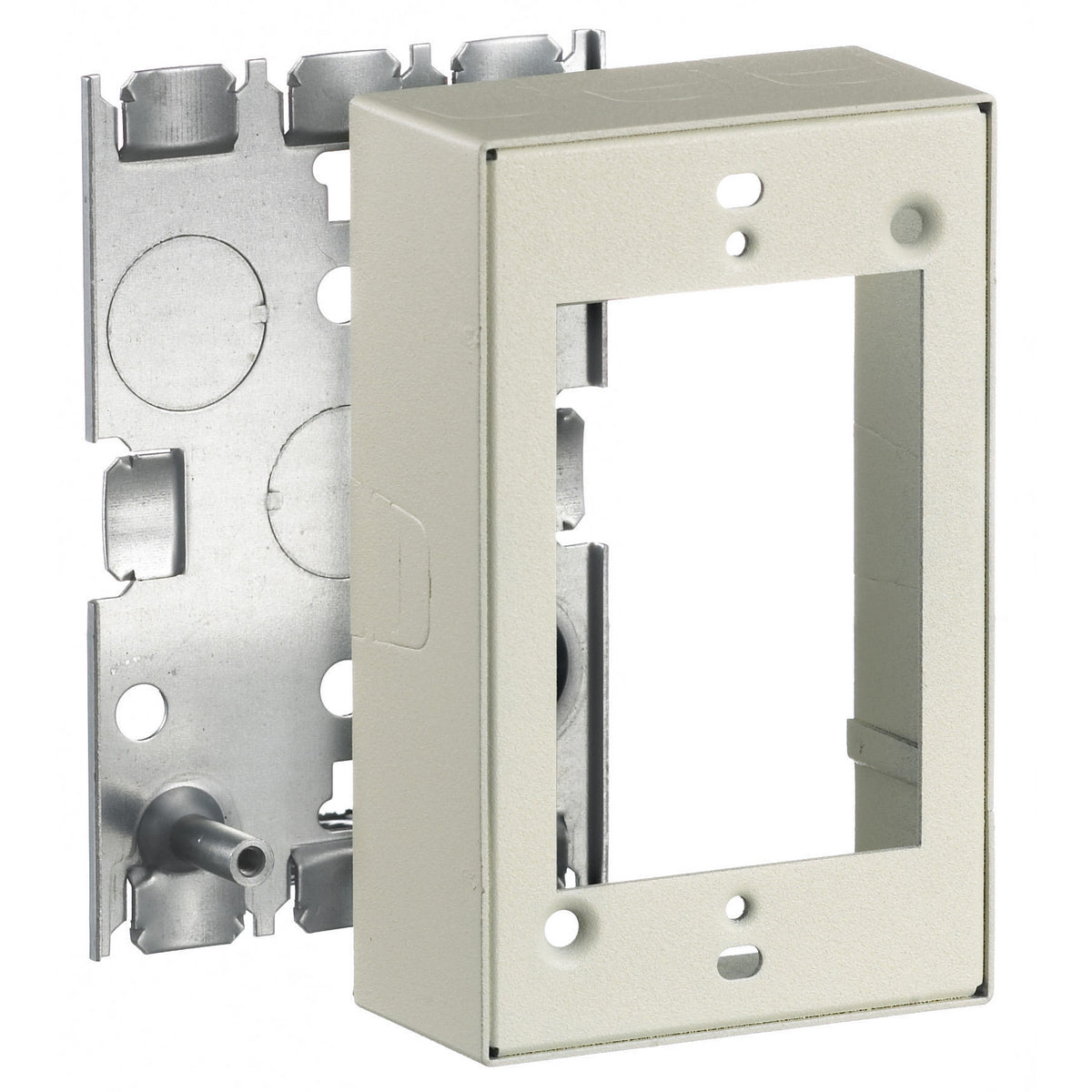

The Hubbell HBL5747IVA is a 1-gang shallow standard device box. It is designed for use with the HBL500, HBL700, and HBL750 series metal raceway. This box has a length of four point six inches, a width of three inches, and a height of one point three inches. The construction is rolled steel and comes in ivory color.

• Compatible with HBL500, HBL700, and HBL750 series metal raceway
• Constructed from strong rolled steel for durability
• Ideal for shallow installation needs

Product Highlights

This device box is suitable for shallow wall applications. It provides secure housing for wiring connections. Its design allows for easy installation within raceway systems.

Product Information

Standard Information

• Manufacturer: Hubbell
• Category: Electrical > Raceways, Wireways & Ducts > Raceway Outlet Boxes

Technical Specifications

• Manufacturer Part Number: HBL5747IVA
• Type: 1-Gang Shallow Standard
• Material: Rolled Steel
• Color: Ivory
• Height: 1.3 in
• Width: 3 in
• Length: 4.6 in
• Standards/Approvals: UL 5, CSA Certified
• Suitable For Use With: HBL500/HBL700/HBL750 Series Metal Raceway
