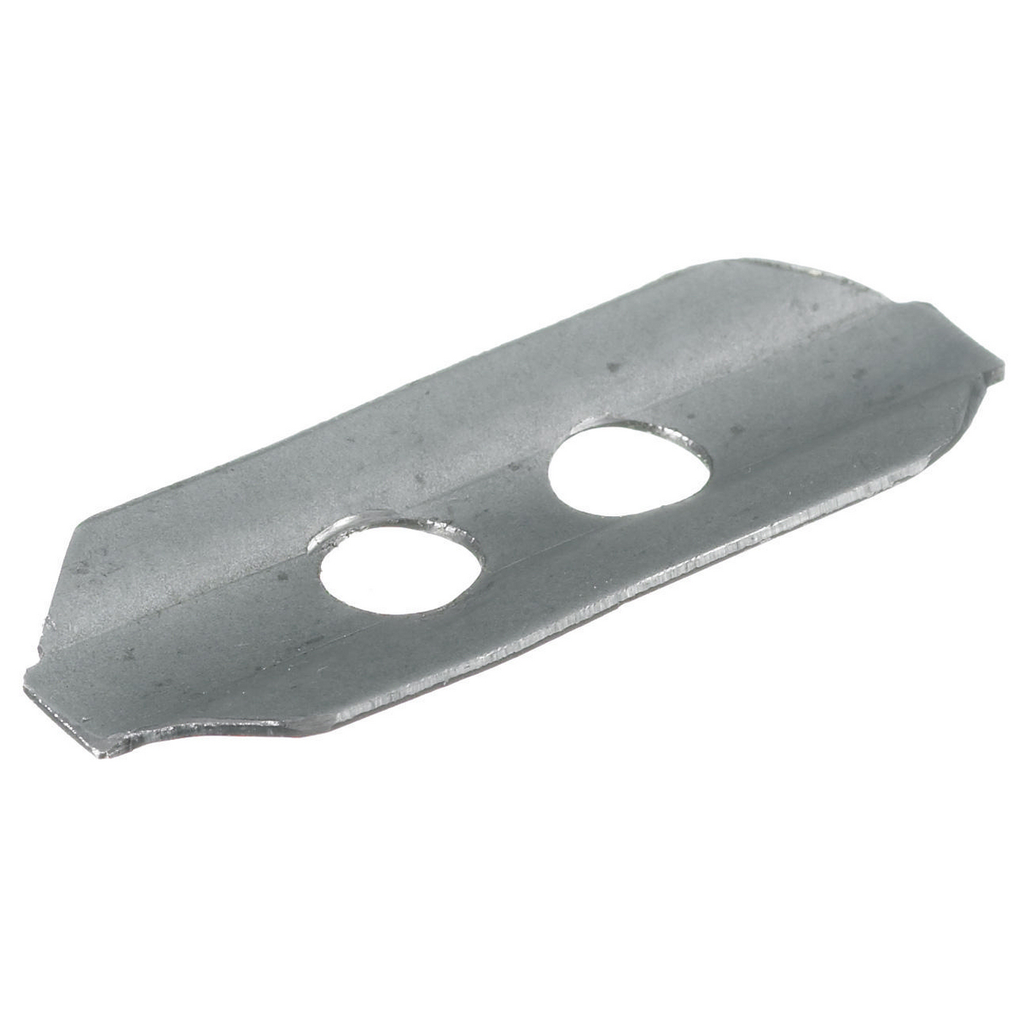

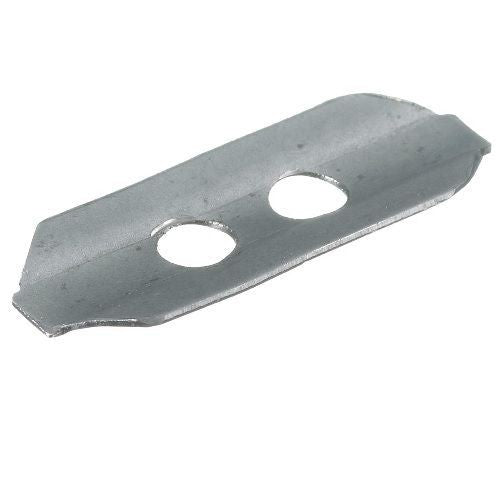

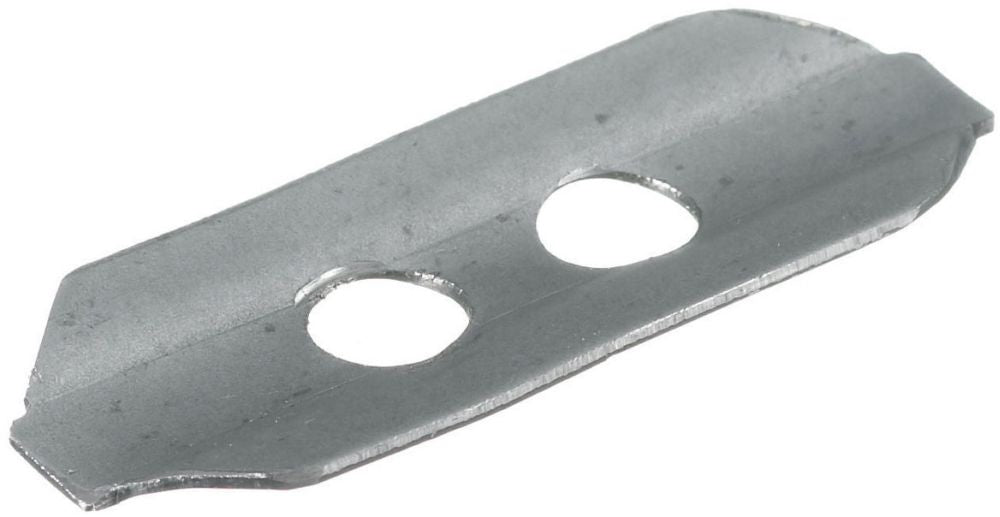

Hubbell HBL5701C Standard Coupling For Use With HBL500, HBL700, HBL750 Series Metal Raceway

Product Description

The HUBBELL HBL5701C is a standard coupling designed for use with HBL500, HBL700, and HBL750 series metal raceways. Constructed from roll-formed steel with a galvanized finish, this coupling ensures durability and reliable performance in various applications. It is suitable for non-hazardous locations and meets UL and CSA standards.

• For use with HBL500, HBL700, HBL750 series metal raceway
• Made of roll formed steel
• Galvanized finish

Product Highlights

Standard coupling for metal raceway systems, ensuring secure connections and compliance with industry standards.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL5701C
• Country of Origin: USA

Technical Specifications

• For Use With: HBL500, HBL700, HBL750 Series Metal Raceway
• Material: Roll Formed Steel
• Finish: Galvanized
• Type: Standard Coupling
• Standard: CSA Standard C22.2 No. 62,E253830,E253833,E253976,UL Standard UL 5
• Style: Coupling
• Brand: Hubbell Premise Wiring
• Sub Brand: Metallic Raceway Products
• Height: 0.1 Inch
• Length: 2 Inch
• Width: 0.7 in
• Application: Non-Hazardous Locations
• Standard & Approvals: UL 5, File No. E253976, E253830, E253833, CSA C22.2 No. 63 File No. LR87514, NEC Article 381, TIA, EIA-569B, ARRA, Buy American Act, RoHS Compliant, NEMA 1
• Suitable For Use With: HBL500, HBL700, HBL750 Series Metal Raceway
• Series: HBL500 HBL700 HBL750
• Industry Standard(s): CSA Standard C22.2 no. 62 E253976 /E253830 /E253833 UL Standard UL 5
• Used With: Non-Hazardous HBL500/HBL750 Series Metal Raceway
• Enclosure: NEMA 1 Rating
