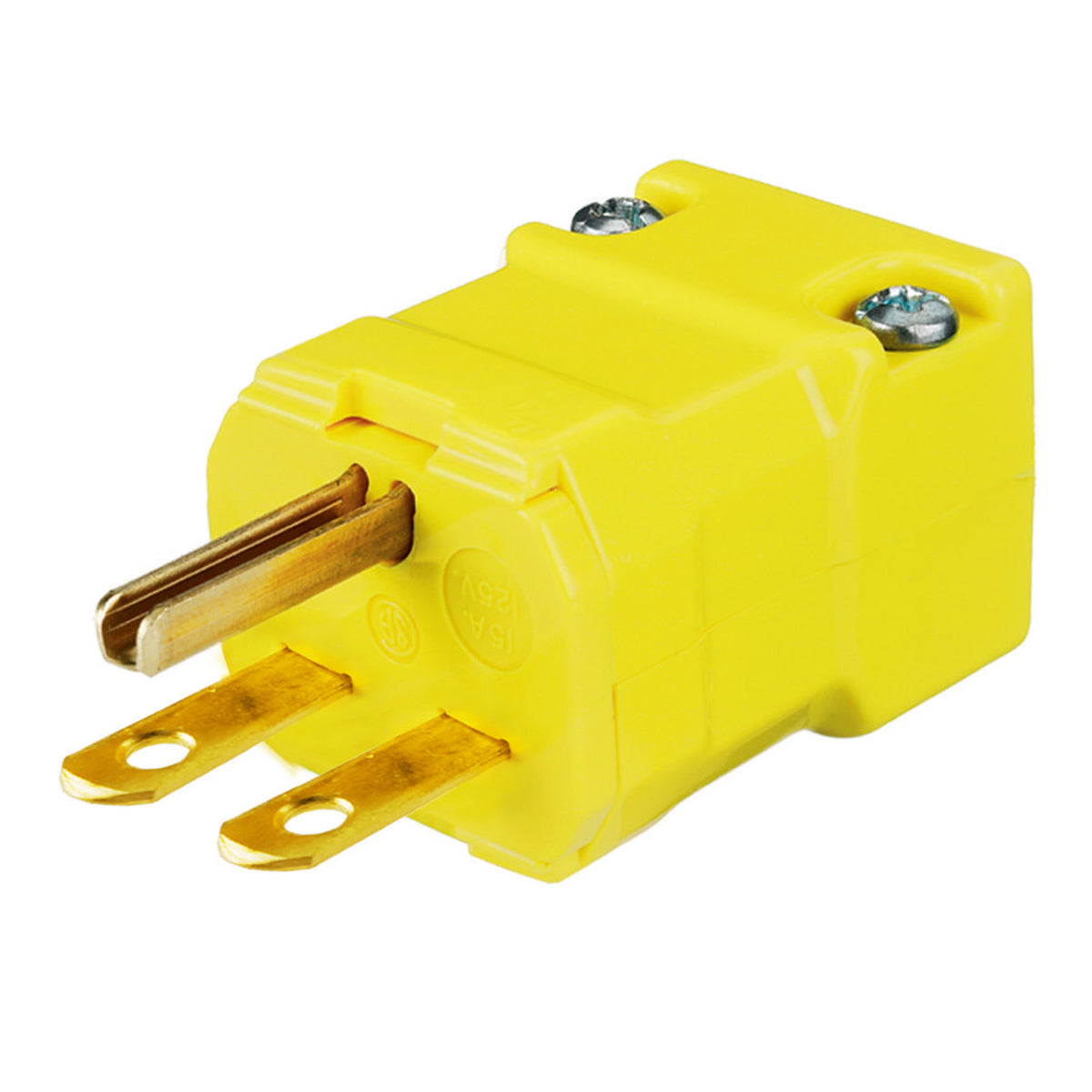

Hubbell HBL5666VY HUB 2P-3W-15A-250V YLW Plug

Product Description

Hubbell HBL5666VY is a wiring device that serves as a straight blade plug. It is designed for 1-phase grounding operations. The device operates at two hundred fifty volts and allows for a maximum current of fifteen amps. It is suitable for use in various environments, including dry and indoor applications.

• Durable nylon housing
• Easy assembly with captive screws
• IP20 rated for indoor use

Product Highlights

This product is ideal for commercial and industrial applications. Its construction allows it to withstand a range of temperatures from minus forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Application: Dry Location and Indoor Applications
• NEMA Rating: 6-15P

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 250 VAC
• Horsepower: 2 hp
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 deg C
• Cord Diameter: 0.22 to 0.66 in
• Dimensions: 1.88 x 1.5 x 1.13 in
