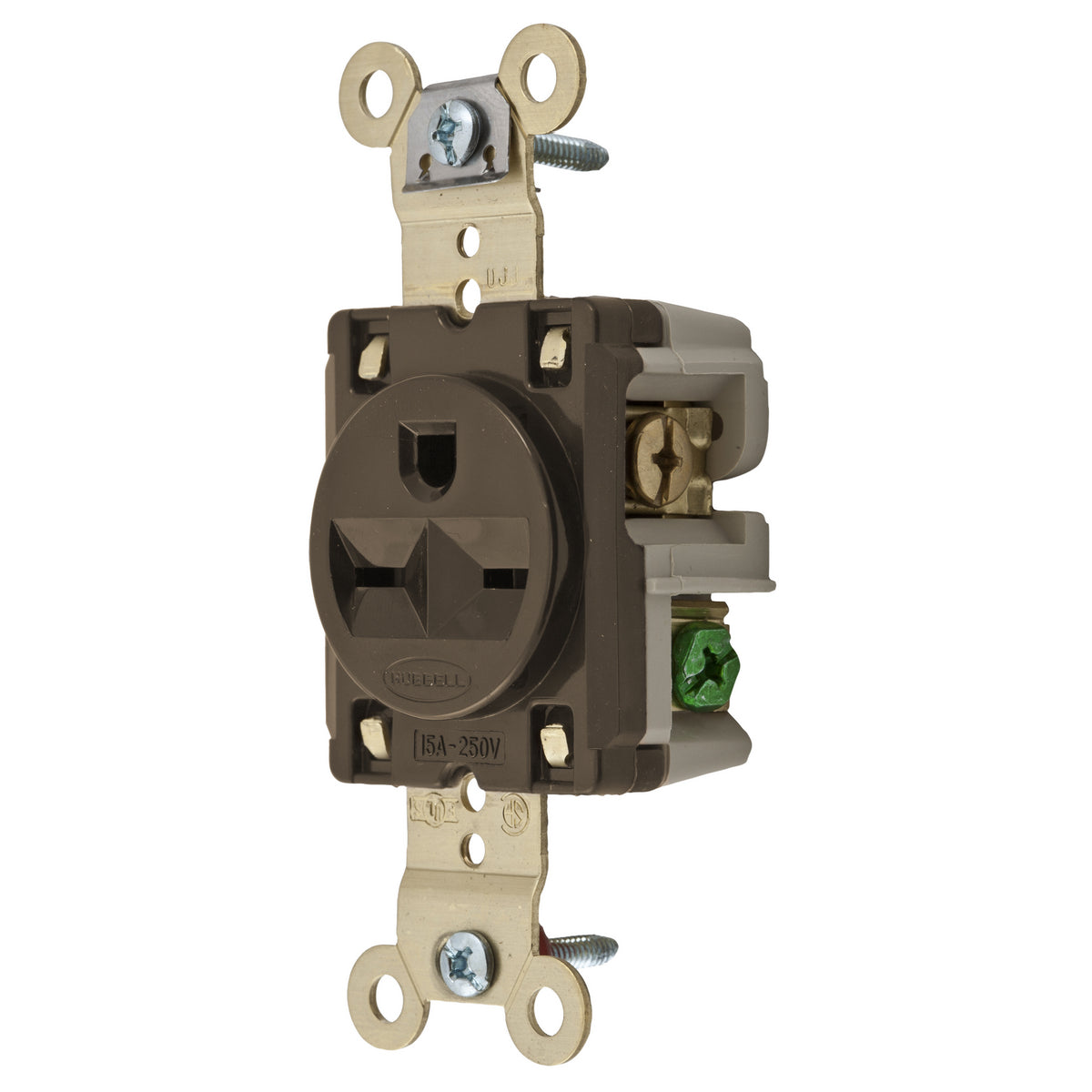

Hubbell HBL5661 Brown 15A 250V Single Receptacle Extra Heavy Duty Spec Grade

Product Description

The Hubbell HBL5661 is a brown, 15 Amp, 250 Volt single receptacle designed for heavy-duty use. It features a standard NEMA configuration and is suitable for industrial applications. This receptacle ensures reliable performance in demanding environments.

• 2-pole, 3-wire grounding system
• Built for extra heavy-duty applications
• Compatible with wire sizes of 12-10 AWG

Product Highlights

The HBL5661 receptacle is ideal for commercial and industrial settings, offering durability and efficiency.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL5661

Technical Specifications

• Current Rating: 15 Amp
• Voltage Rating: 250 Volt
• Wattage: 3750 Watt
• NEMA Rating: 6-15R
• Number of Poles: 2
• Number of Wires: 3
• Material: Thermoplastic
• Weight: 0.15 lb

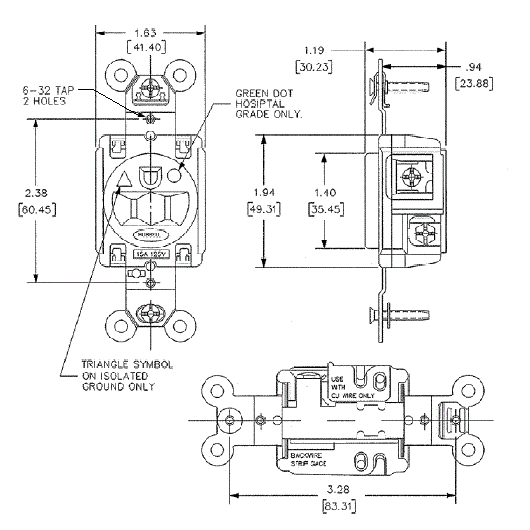

• Dimensions: 1.94 in x 1.80 in x 1.19 in
• Dielectric Strength: Withstands 2,000 Volt minimum
• Operating Temperature: -40 degrees C
• Environmental Conditions: Indoor Dry Unless Protected
