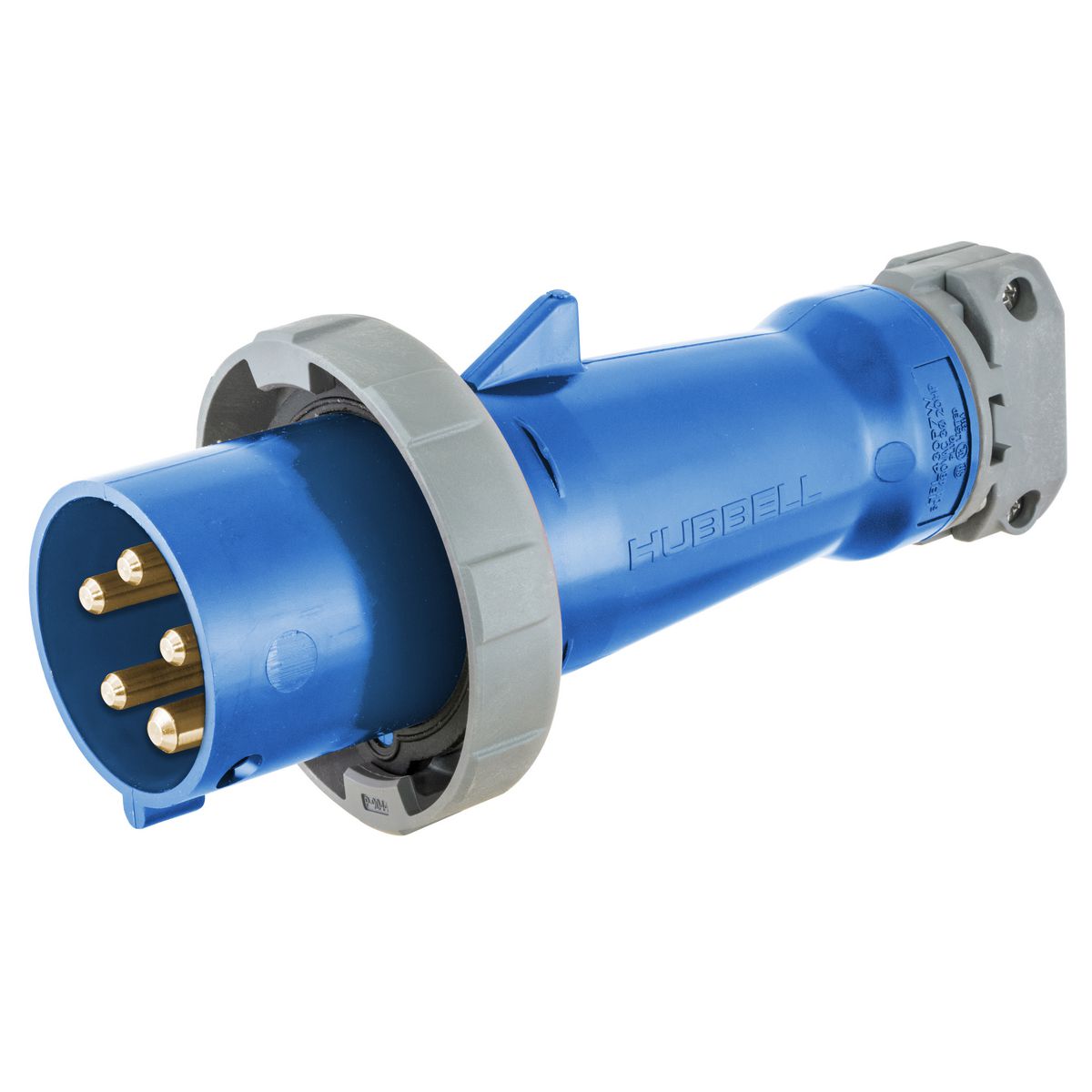

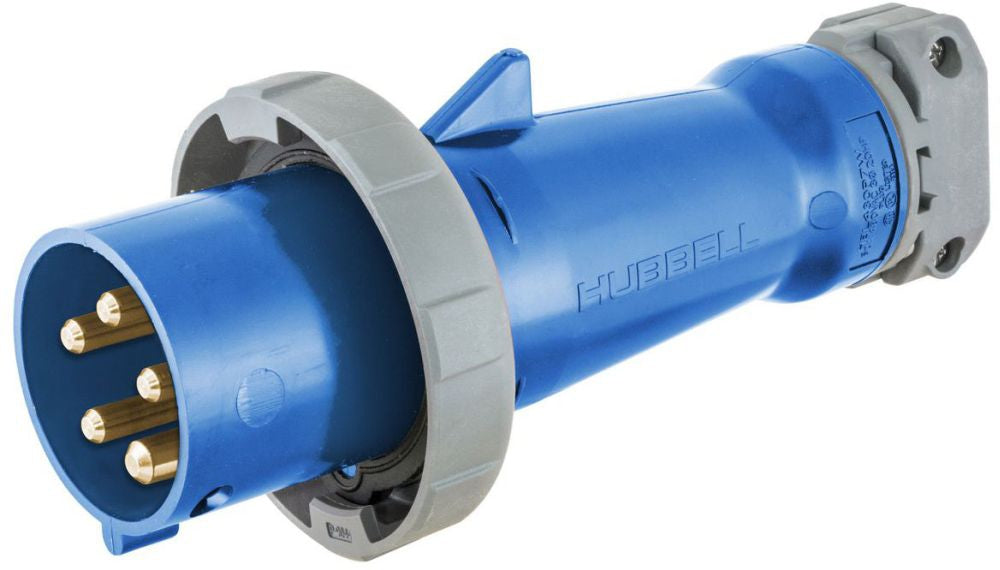

Hubbell HBL560P9W HUB 4P5W 60A 120/208V Pin& Sleeve Plug

Product Description

The Hubbell HBL560P9W is a pin and sleeve plug designed for heavy duty applications. It is a three-phase grounding male non-NEMA portable standard watertight cord mount plug rated for 120/208Y VAC and 60 A. This plug is ideal for high ampacity connections, providing robust electrical performance.

• Solid one-piece pins for reliable electrical contact
• Gasketed sealing ring for watertight integrity
• Heavy-duty external cord grips for secure connections

Product Highlights

Designed for industrial settings, this plug meets IP67 moisture resistance standards and operates in temperatures ranging from minus forty to seventy-five degrees Celsius.

Product Information

Standard Information

• UPC: 78358540570
• Grade: Industrial

Technical Specifications

• Amperage Rating: 60 A
• Application: High Ampacity Connections
• Color: Blue
• Dimensions: 4.49 inches Diameter x 10.15 inches Length
• Enclosure: IP67
• Voltage Rating: 120/208Y VAC
• Horsepower: 3 hp
• Number of Poles: 4
• Number of Wires: 5
• Material: Composite
• Temperature Rating: -40 to 75 degrees Celsius
• Standards/Approvals: RoHS Compliant, UL Certified, CSA Certified
