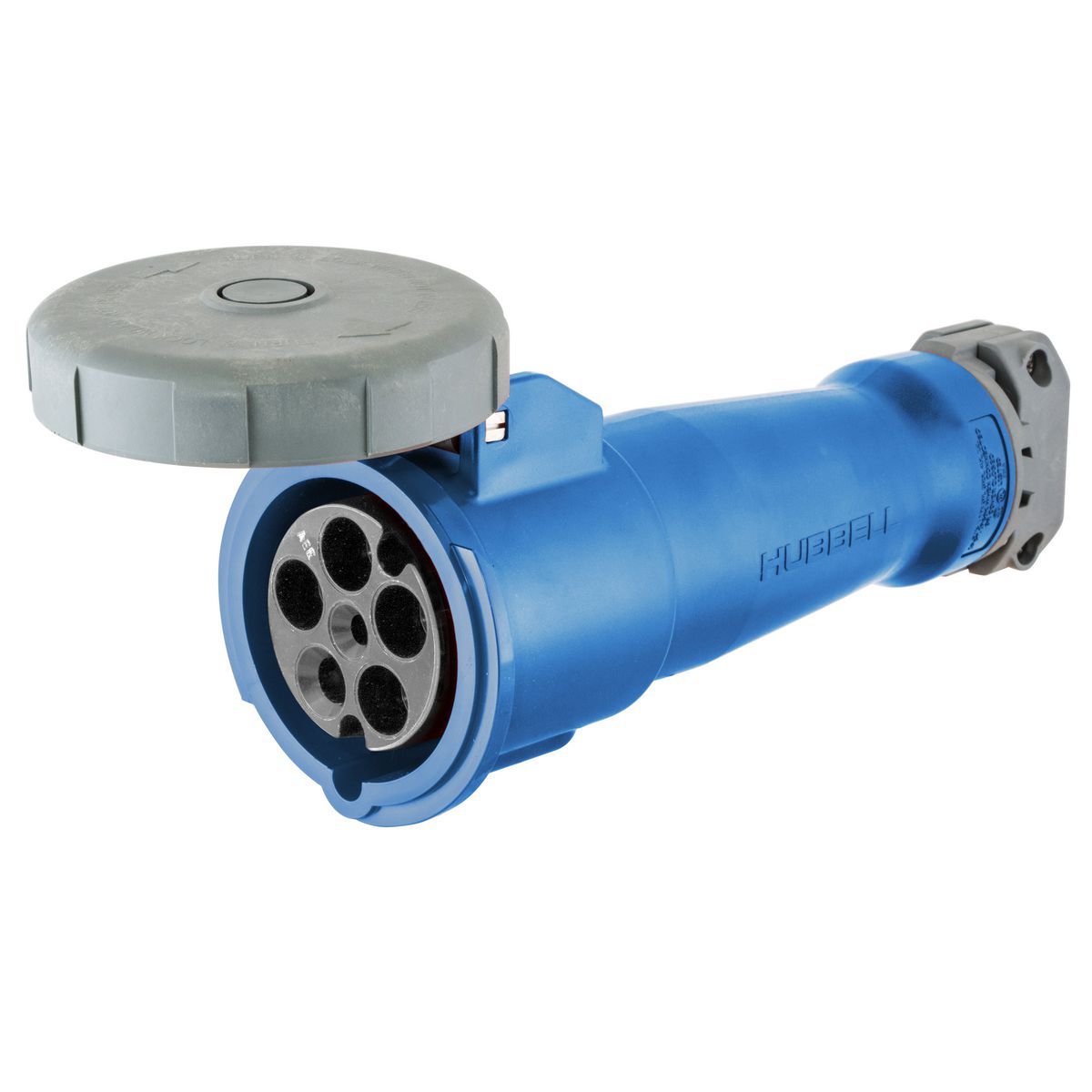

Hubbell HBL560C9W Pin And Sleeve Connector 60A/30Y 120-208V

Product Description

The Hubbell HBL560C9W is a pin and sleeve connector designed for heavy-duty industrial use. This connector operates at sixty amps and supports three-phase power systems. With a voltage rating of 120-208V, it is suitable for high ampacity connection applications.

• Self-closing gasketed cover for added protection
• Color-coded housings for easy voltage identification
• Temperature range from negative forty to seventy-five degrees Celsius

Product Highlights

This connector is crafted from composite material to ensure durability and withstand harsh environments. It features a pressure screw terminal for secure connections. The design includes four poles and five wires, ensuring reliable performance in various applications.

Product Information

Standard Information

• Manufacturer: Hubbell-Kellems Div
• MPN: HBL560C9W

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 120/208 VAC
• Temperature Rating: -40 to 75 deg C
• Material: Composite
• Number of Poles: 4
• Number of Wires: 5
• Grade: Industrial
• Standards/Approvals: RoHS Compliant, UL 498, CSA
