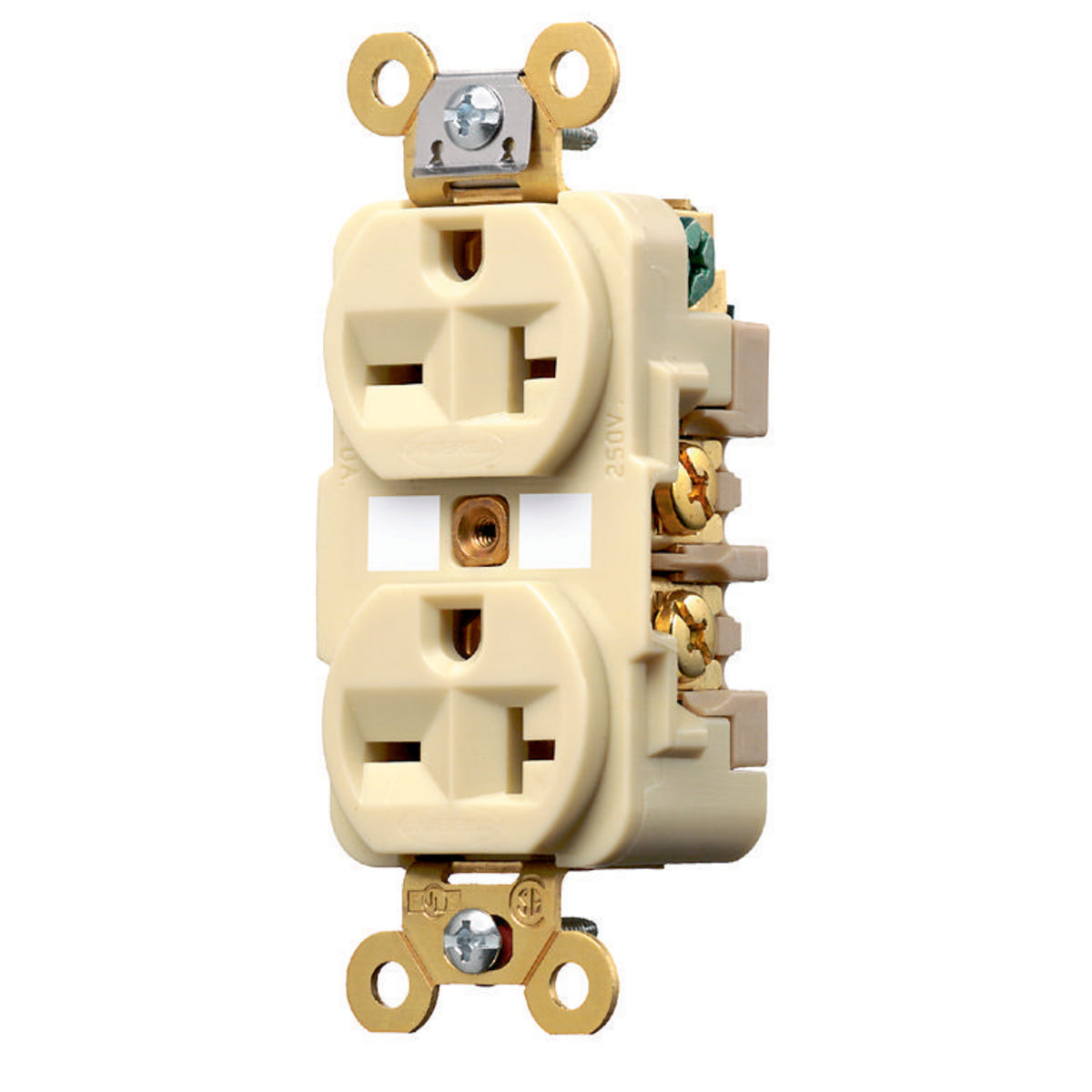

Hubbell HBL5462I HUB Recept Dupl 6-20R

Product Description

The Hubbell HBL5462I is a straight blade receptacle designed for 1-phase duplex extra heavy duty applications. It operates at a voltage of 250 VAC and a current rating of 20 A. This receptacle is suitable for use in industrial environments where durability is a key requirement. The 6-20R NEMA rating ensures compatibility with specific plugs and devices. The device features a self-grounding mechanism and is mounted using screws, which enhances stability during use.

• Rated for 250 VAC and 20 A
• Self-grounding with a durable thermoplastic composite body
• Can withstand temperatures from -40 to 75 degrees Celsius

Product Highlights

This receptacle is recognized for its robust construction and ability to endure harsh conditions, making it ideal for industrial and commercial settings.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL5462I

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 250 VAC
• NEMA Rating: 6-20R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
• Material: Thermoplastic/Composite
• Dimensions: 3.28 x 1.65 x 1.19 inches
