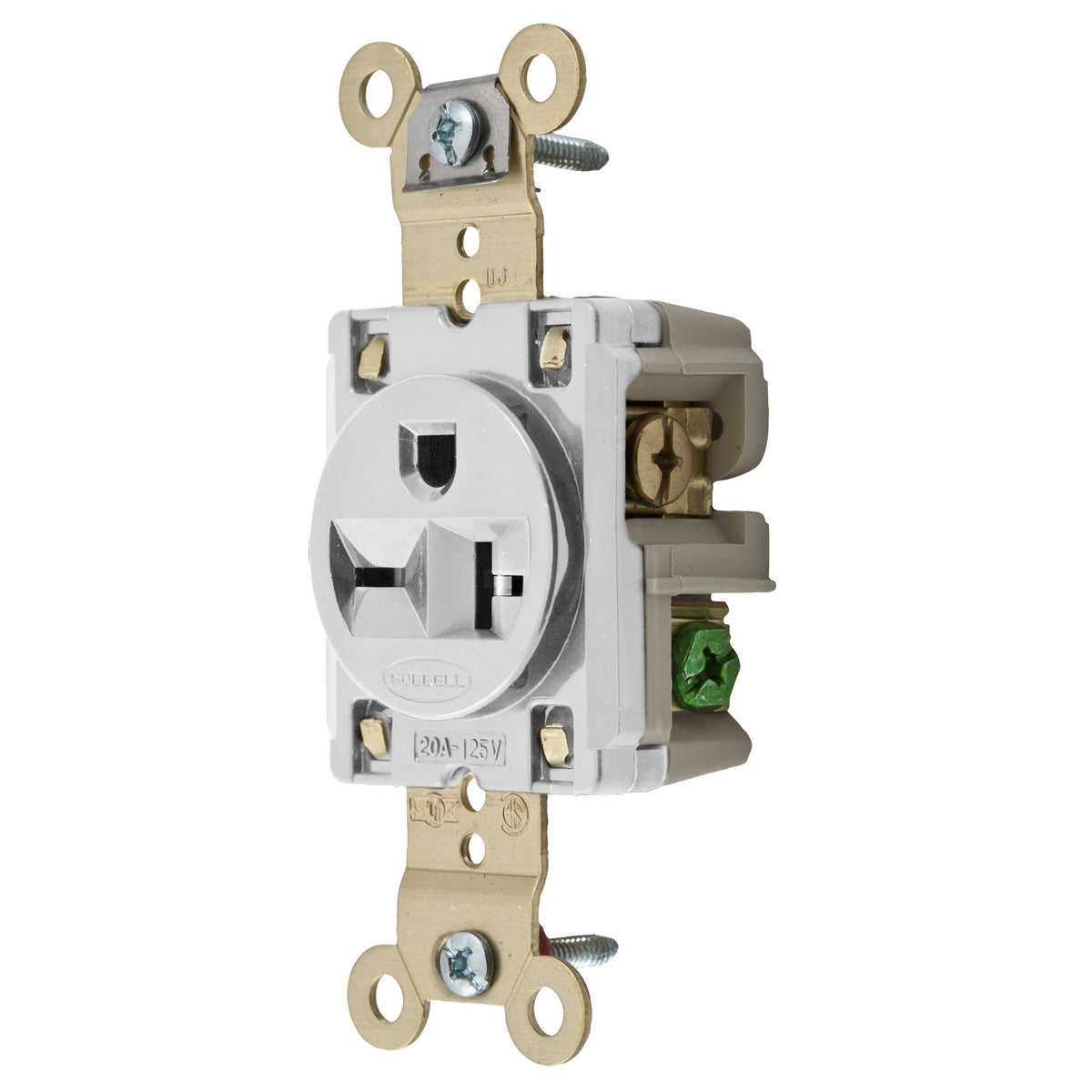

Hubbell HBL5461W HUB 20A 250V White SGL RCPT NEMA 6-20R

Product Description

The Hubbell HBL5461W is a heavy duty straight blade receptacle designed for industrial applications. This single self-grounding screw mount receptacle operates at 250 VAC and has a maximum current of 20 A. It features a NEMA 6-20R configuration with two poles and three wires.

• Constructed from thermoplastic and composite materials
• Suitable for a temperature range of -40 to 75 degrees Celsius
• Compatible with 14 to 10 AWG solid or stranded copper conductors

Product Highlights

This receptacle is ideal for various installation environments, ensuring reliable power connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358500172

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 250 VAC
• NEMA Rating: 6-20R
• Number of Poles: 2
• Number of Wires: 3
• Horsepower: 2 hp
• Material: Thermoplastic/Composite
• Dimensions: 3.28 x 1.63 x 1.19 inches
• Temperature Rating: -40 to 75 degrees Celsius
• Standards/Approvals: UL 498, CSA 22.2 No. 42, RoHS Compliant
