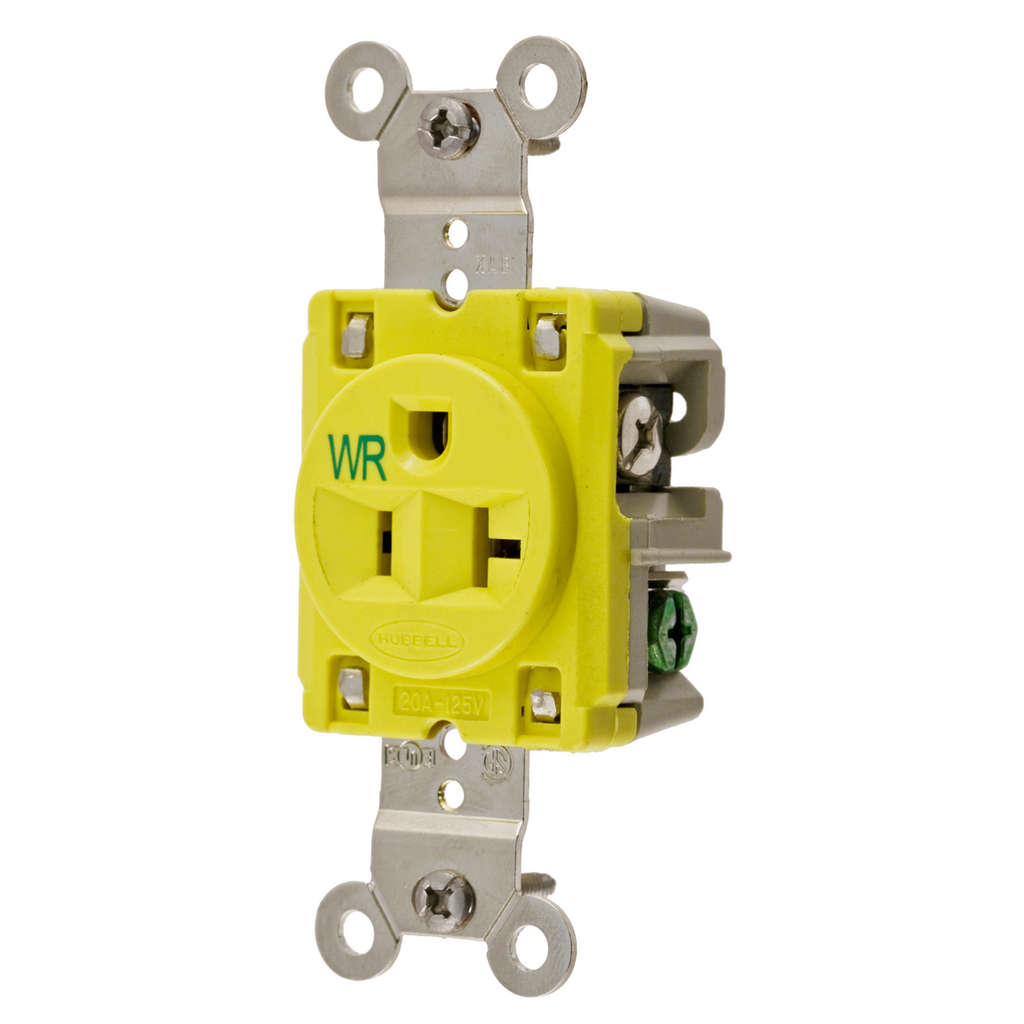

HUBBELL Hubbell HBL53CM61 Single Marine Receptacle 20A 125V (NEMA 5-20R)

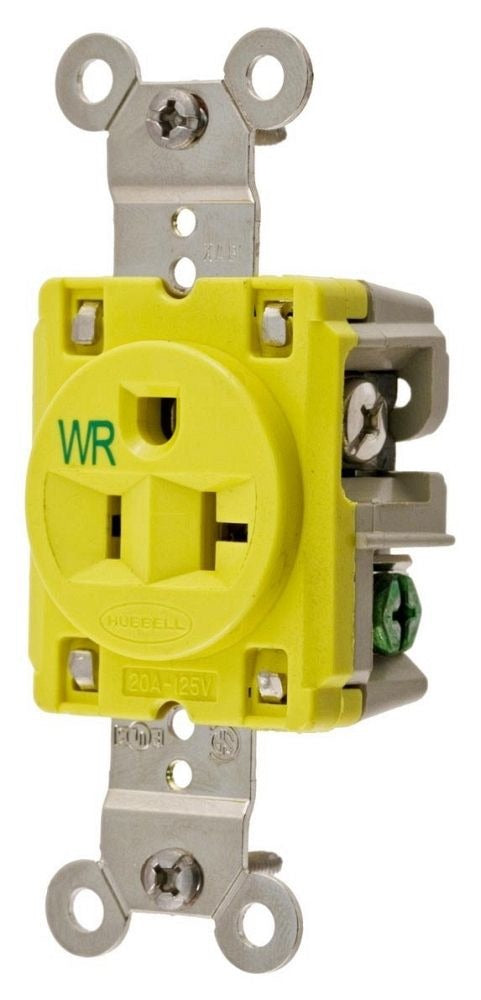

HUBBELL Hubbell HBL53CM61 Single Marine Receptacle 20A 125V (NEMA 5-20R)
HUBBELL Hubbell HBL53CM61 Single Marine Receptacle 20A 125V (NEMA 5-20R)
HUBBELL Hubbell HBL53CM61 Single Marine Receptacle 20A 125V (NEMA 5-20R)

Hubbell HBL53CM61 Single Marine Receptacle 20A 125V (NEMA 5-20R)

HUBBELL
Brand: HUBBELL
SKU: HBL53CM61
Availability: In Stock

Ships same day if ordered by 12 pm
$44.77
$44.77
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Hubbell HBL53CM61 is a 20 A, 125 VAC single straight-blade marine receptacle (NEMA 5-20R) with isolated ground designed for extra heavy-duty and corrosive environments. The device uses a nylon face with thermoplastic/PBT base, nickel-plated brass power contacts and brass ground contact. It supports back and side screw wiring for #12–#10 AWG conductors, is rated for continuous operation from -40 to 75 °C, and is certified to UL and CSA standards.

  • Rated 20 A, 125 VAC (NEMA 5-20R) with isolated ground; 1 hp maximum
  • Corrosion-resistant construction: nylon face, PBT/thermoplastic base, nickel-plated brass contacts, stainless-steel hardware
  • Back and side wire/screw terminals for #12–#10 AWG; withstands 2,000 VAC dielectric; UL 498 and CSA certified

Product Highlights

Extra heavy-duty marine-grade single receptacle with isolated ground, corrosion-resistant materials, and -40 to 75 °C operating range.

Product Information

Standard Information

  • Brand: HUBBELL
  • Manufacturer Part Number: HBL53CM61
  • Country of Origin: United States
Technical Specifications
Brand
Hubbell
Manufacturer Part Number
HBL53CM61
Amperage Rating
20 A
Voltage Rating
125 VAC
NEMA Configuration
5-20R
Type
Single straight-blade marine receptacle
Configuration
2-pole, 3-wire grounding
Mounting Type
Standard screw mount
Material
Thermoplastic / composite (nylon face, PBT base)
Face Material
Nylon
Base Material
PBT (polybutylene terephthalate)
Contact Material
Nickel-plated brass power contact; brass ground contact
Grounding
Isolated ground
Number of Poles
2
Number of Wires
3
Terminal Type
Back and side wire/screw terminals
Wire Size
#12 to #10 AWG
Operating Temperature
-40 to 75 deg C
Dimensions
3.28 x 1.63 x 1.19 in
Horsepower
1 hp
Wattage
2500 W
Dielectric Strength
Withstands 2,000 VAC minimum
Construction Grade
Extra heavy-duty, specification grade; marine grade
Certifications
UL 498 File No. E2186; CSA C22.2 No. 42/285; Federal Specification W-C-596; NEMA WD-1/WD-5/WD-6; RoHS compliant
Flammability Rating
Face UL 94V-2; Base UL 94V-0
Mounting Strap
0.05 in nickel-plated brass
Power Contact Thickness
0.037 in nickel-plated brass
Mounting Screws Material
Stainless steel
Country of Origin
United States
Series
HBL Extra Heavy Duty
