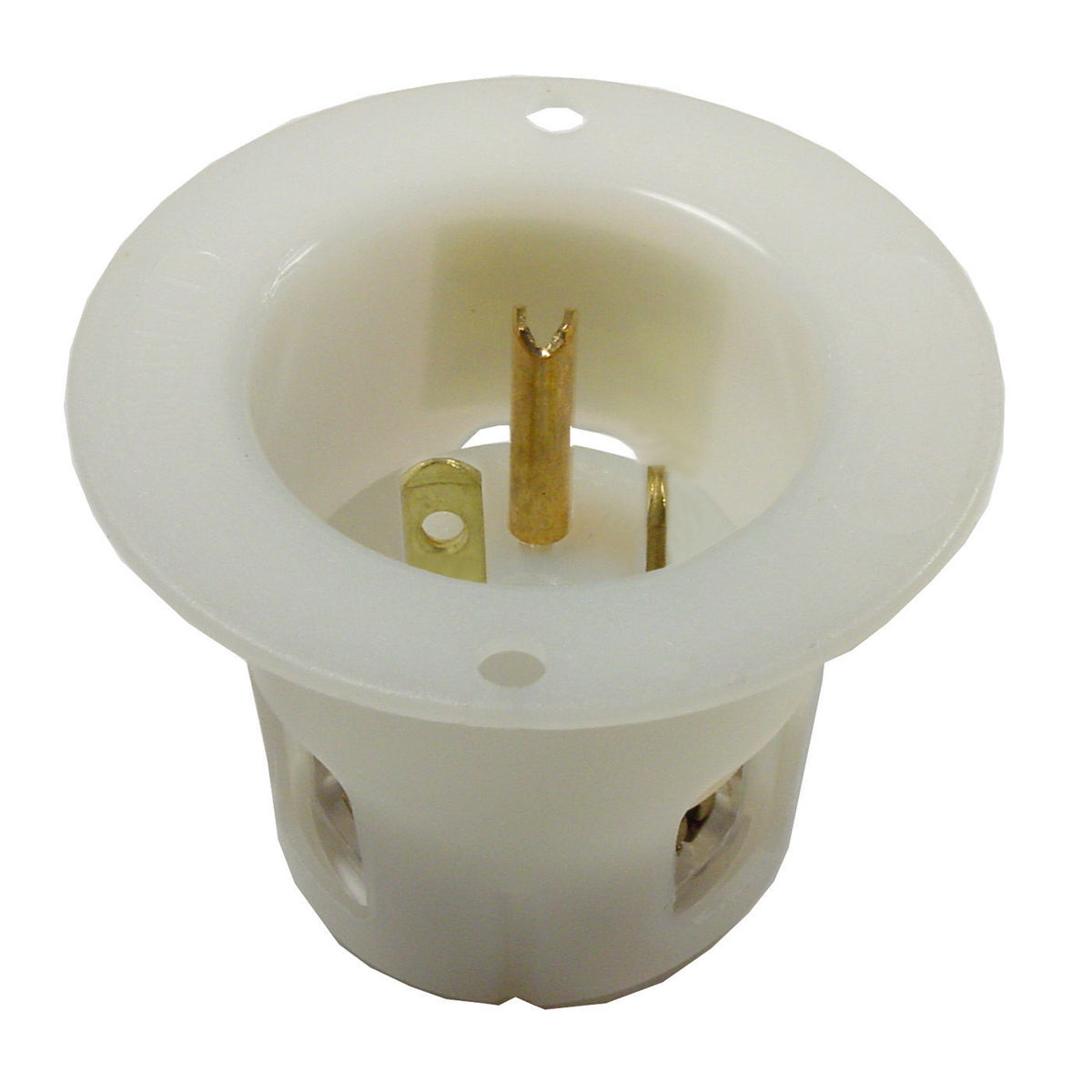

Hubbell HBL5378C HUB FLG-INLET 20A 125V 5-20P

Product Description

The Hubbell HBL5378C is a wiring device designed for industrial use. This straight blade flanged inlet operates at 125 volts and 20 amperes. It includes a male grounding screw mount and is rated for one-phase service. This inlet is suitable for applications needing a reliable and robust connection.

• 1-phase extra heavy duty male grounding screw mount
• Back and side wire/screw terminal configuration
• Compatible with 5-20P NEMA rating

Product Highlights

Ideal for heavy-duty connections, it features a durable nylon body to withstand harsh conditions. The device supports a temperature range from minus forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: HBL5378C

Technical Specifications

• Amperage Rating: 20 A
• Color: White
• Dimensions: 1.71 x 1.69 x 1.71 inches
• Grade: Industrial
• Horsepower: 1 hp
• NEMA Rating: 5-20P
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
• Voltage Rating: 125 VAC
• Standards/Approvals: UL 498, CSA C22.2 No. 42 Certified
