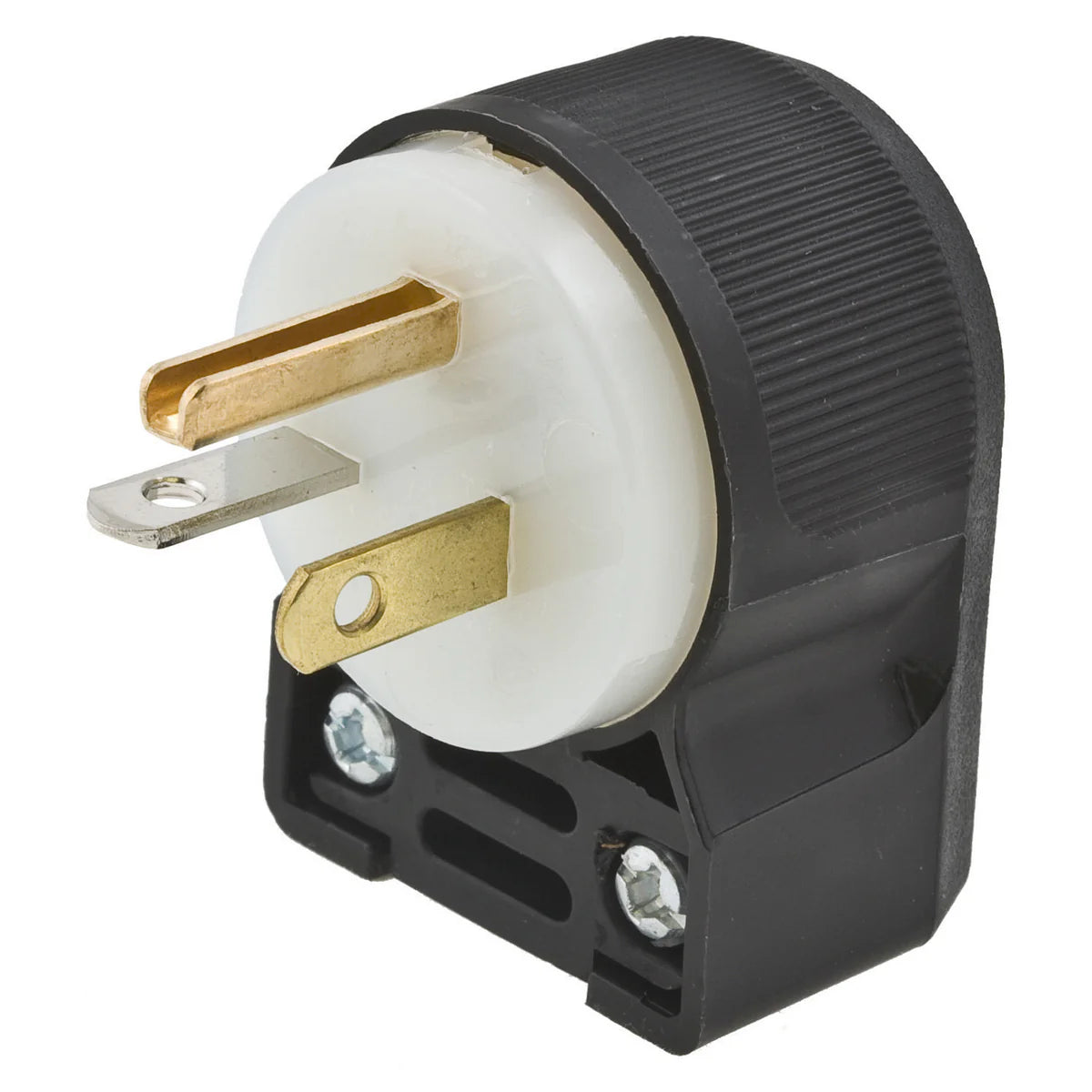

Hubbell HBL5366CA HUB 2P-3W-20A-125V ANGLE PLUG

Product Description

The Hubbell HBL5366CA is a straight blade plug designed for portable standard cord mounting. This device handles 125 volts at 20 amps and features a durable build suitable for various applications including industrial and healthcare environments.

• Designed for 125 VAC, 20 A use in commercial/industrial settings
• IP20 rated for protection against solid objects
• Temperature rated from negative forty to seventy-five degrees Celsius

Product Highlights

The HBL5366CA plug features a nylon blade holder and a polycarbonate exterior for impact and chemical resistance. Its unique design allows for superior strain relief, ensuring safety and longevity.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358517400

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Horsepower: 1 hp
• NEMA Rating: 5-20P
• Cord Diameter: 0.325 to 0.655 in
• Enclosure: IP20
• Temperature Rating: -40 to 75 deg C
• Dimensions: 1.21 x 1.52 x 2.08 in
• Material: Polycarbonate
