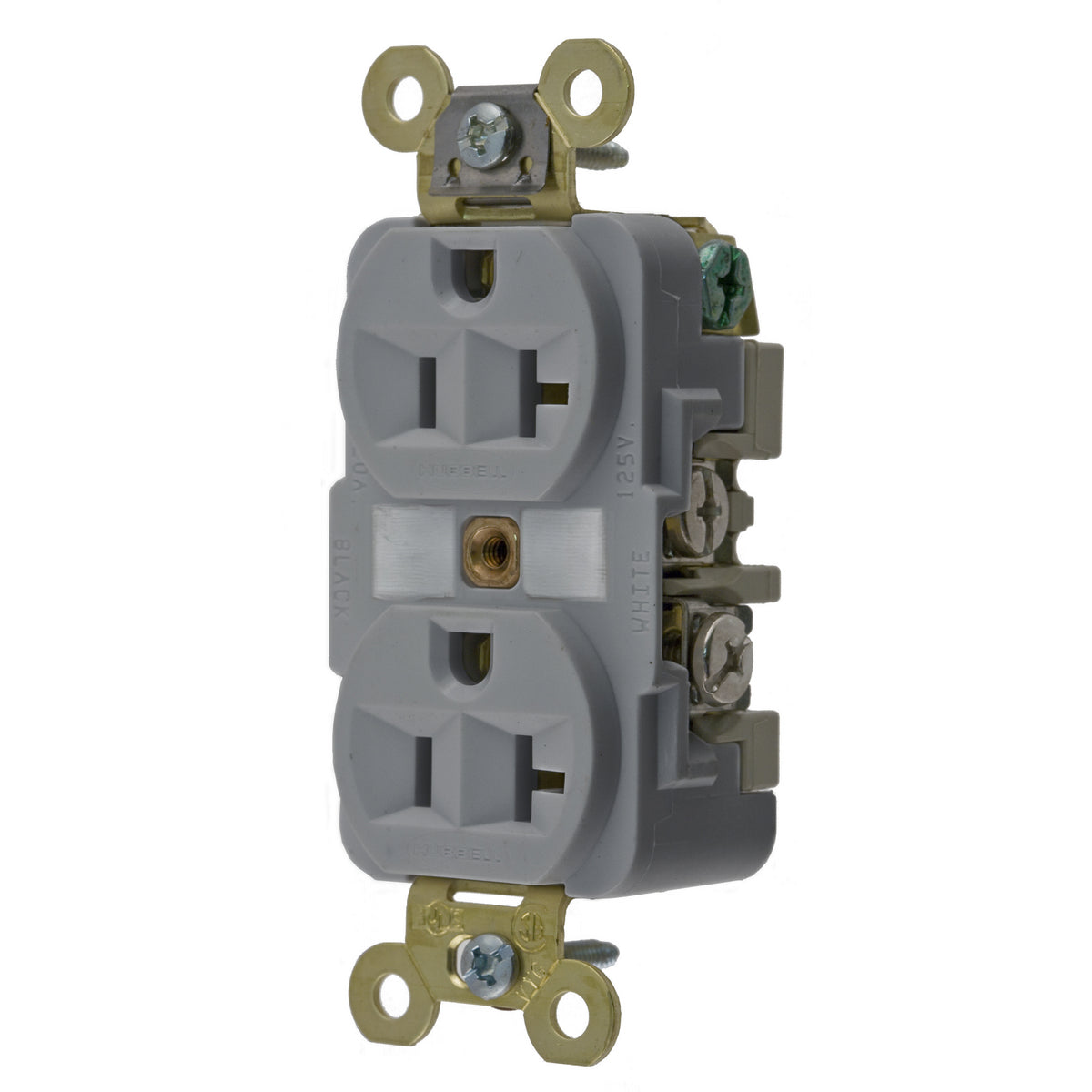

Hubbell HBL5362GY HUB 20A 125V Gray DPLX RCPT NEMA 5-20R

Product Description

The Hubbell HBL5362GY is a straight blade receptacle designed for 20 amp applications. It operates at one hundred twenty-five volts and features a NEMA 5-20R rating. This device is suitable for dry locations and indoor applications.

• Amperage rating of twenty amps
• Temperature rating ranges from negative forty to seventy-five degrees Celsius
• Back and side wire/screw terminal type

Product Highlights

This receptacle is constructed from thermoplastic and composite materials, ensuring durability in industrial settings.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358543526

Technical Specifications

• Application: Dry Location and Indoor Applications
• Color: Gray
• Grade: Industrial
• Dimensions: 3.28 inches x 1.65 inches x 1.19 inches
• Horsepower: 1 hp
• Manufacturer Part Number: HBL5362GY
• Material: Thermoplastic/Composite
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: RoHS Compliant, CSA C22.2 File No. 42, UL 498 File No. E2186, Federal Specification WC596
• Temperature Rating: -40 to 75 degrees Celsius
• Voltage Rating: 125 VAC
