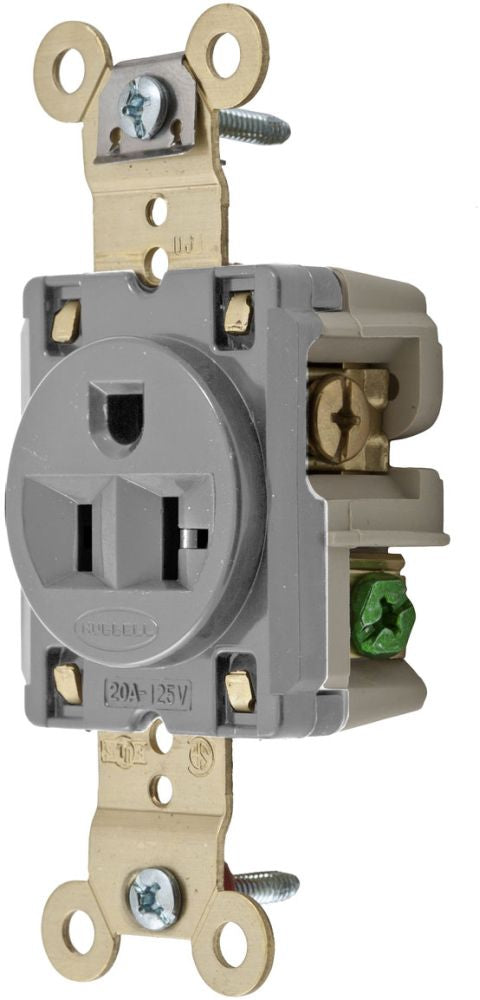

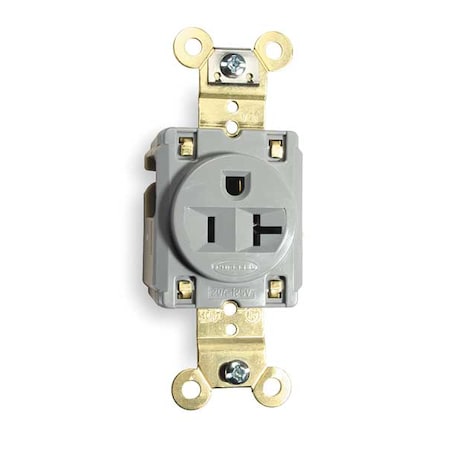

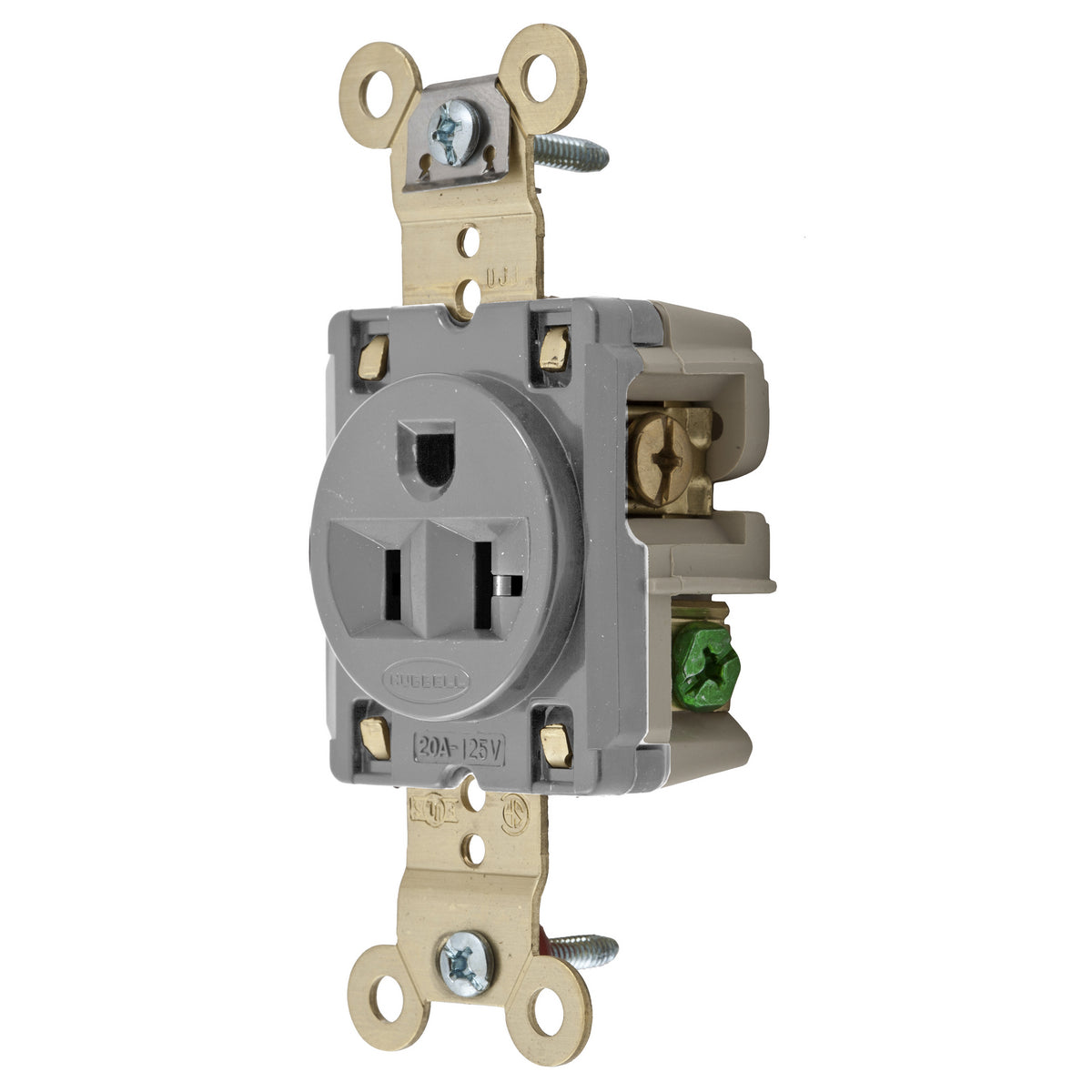

Hubbell HBL5361GRY Single Receptacle 1 HP (Single) HBL5361GRY

Product Description

Hubbell HBL5361GRY is a straight-blade industrial-grade single receptacle rated 125 V AC and 20 A (NEMA 5-20R). It is a 2-pole, 3-wire self-grounding device with back-and-side screw wiring, nylon face and reinforced thermoplastic polyester/PBT base. Construction features include a one-piece brass ground strap, brass power and ground contacts, and nickel-plated contact surfaces. It is certified to UL 498 and CSA C22.2 and operates between -40 and 75 °C.

• Rated 125 VAC, 20 A (NEMA 5-20R); 1 HP power rating
• Back and side screw terminals; accepts #12–#10 AWG conductors
• Self-grounding with one-piece brass ground strap; nickel-plated brass contacts; UL and CSA certified

Product Highlights

Extra heavy duty specification-grade straight-blade receptacle, flush screw mount.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL5361GRY
• Country of Origin: United States

Technical Specifications

• Brand: Hubbell
• Manufacturer Part Number: HBL5361GRY
• Type: Single straight blade receptacle
• NEMA Configuration: 5-20R
• Voltage Rating: 125 V AC
• Current Rating: 20 A
• Horsepower: 1 HP
• Wattage: 2500 W
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Self-grounding
• Wiring/Terminal Type: Back and side wired screw terminals
• Wire Size: #12 AWG to #10 AWG
• Face Material: Nylon
• Base Material: Reinforced thermoplastic polyester (PBT cited in some sources)
• Contact Material: Nickel-plated brass
• Mounting Type: Flush, screw mounting
• Dimensions: 3.28 in L x 1.63 in W x 1.19 in H
• Operating Temperature: -40 to 75 °C (continuous)
• Dielectric Strength: Withstands 2,000 V minimum
• Flammability Rating: UL 94V-2 (face); base reported UL 94V-0 in some sources
• Certifications/Standards: UL 498 (File E2186); CSA C22.2 No. 42 (File 285); Federal Specification W-C-596; NEMA WD-6 compliant
• Application/Grade: Industrial / Extra heavy duty specification grade
• UPC: 783585014302
• Country of Origin: United States
• Polarized: Yes
• Grounded: Yes
• Number of Outlets: 1
• Dielectric/Current Interrupting: Certified for current interrupting at full rated current
