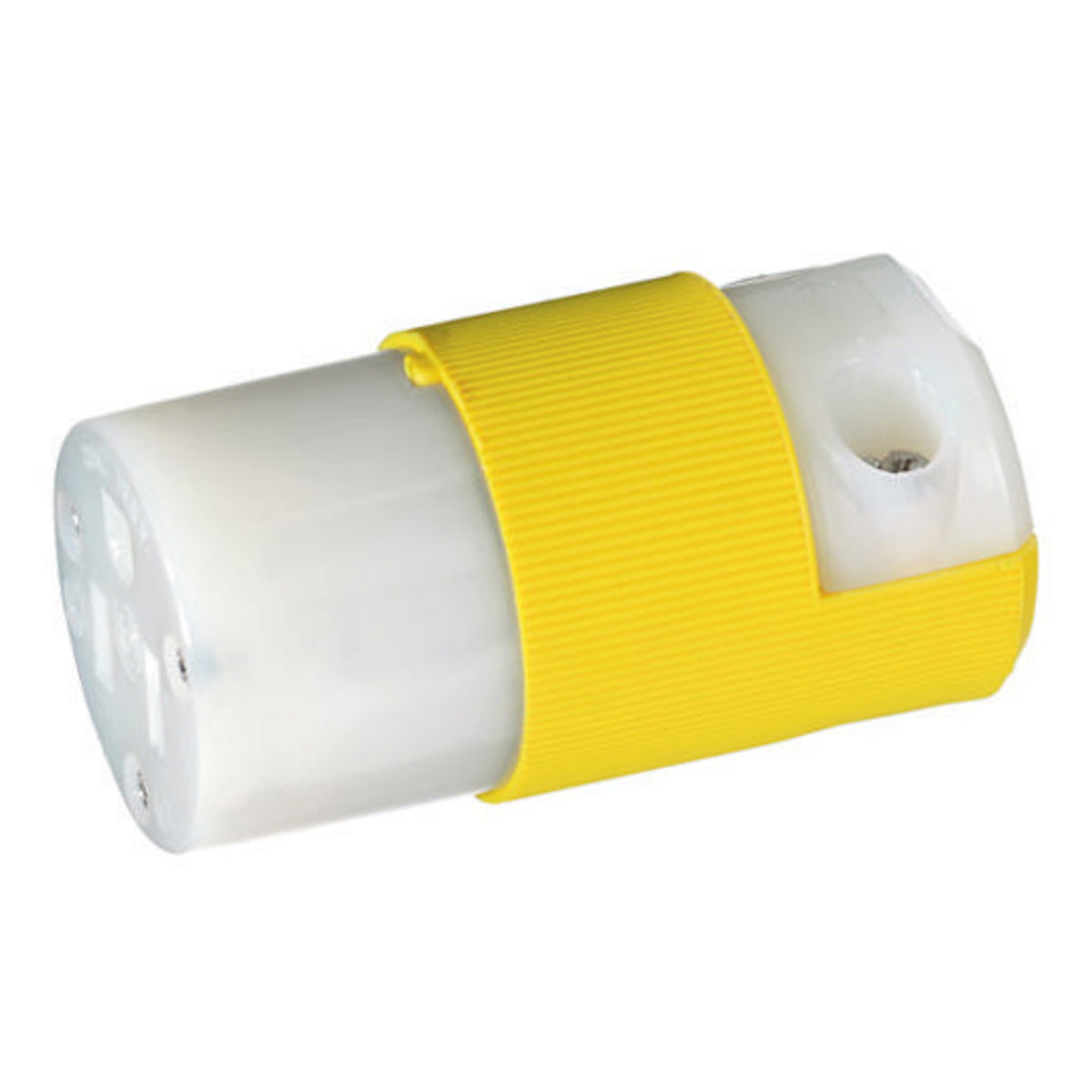

Hubbell HBL52CM69C Female Grounding Insulated Standard Cord Mount 125 VAC 15 A 5-15R

Product Description

The Hubbell HBL52CM69C is a straight blade connector designed for female grounding. This product is rated for 125 VAC and 15 A. The connector features commercial and industrial grade construction, ensuring reliability in various applications. It is suitable for connections requiring a 5-15R NEMA rating.

• Ample wiring chamber for easy installation
• Durable polycarbonate material
• Withstands a dielectric voltage of 2000 VAC minimum

Product Highlights

This connector is built for demanding environments, allowing for efficiency and safety. It is equipped with a screw terminal design for firm electrical connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358516160

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Horsepower: 1/2 hp
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.23 to 0.72 inches
• Temperature Rating: -40 to 75 degrees Celsius
• Dimensions: 2.78 x 1.52 x 2.78 inches
• NEMA Rating: 5-15R
• Material: Polycarbonate
• Enclosure: IP20
• Standards: RoHS Compliant, UL 498
