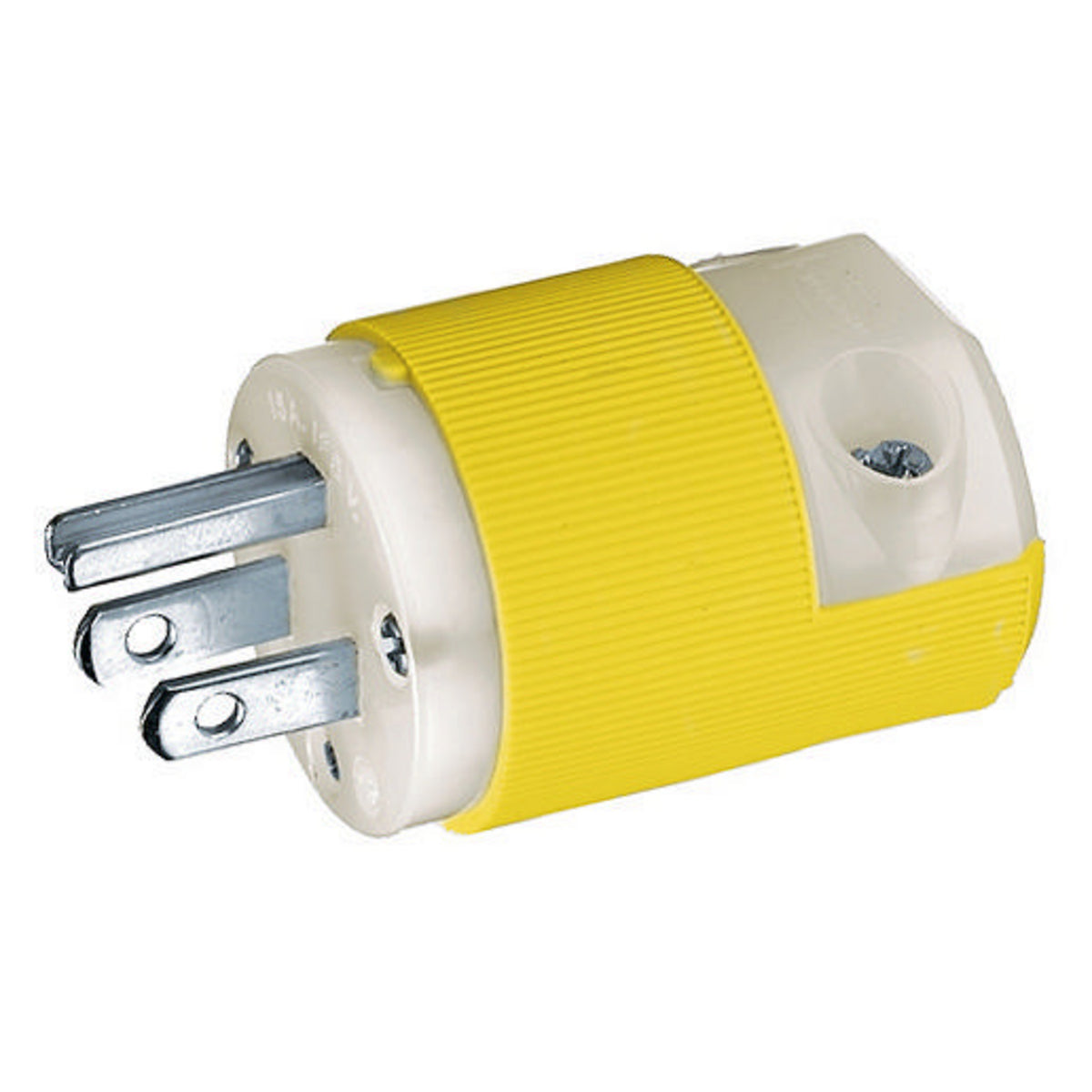

Hubbell HBL52CM66C HUB 2P-3W 125V Yellow Plug

Product Description

The Hubbell HBL52CM66C is a wiring device designed for various applications. This product operates on one phase, provides corrosion resistance, and features a portable standard cord mount. Rated for one hundred twenty-five volts AC and fifteen amps, this device supports two poles and three wires. The plug is suitable for marine, dry locations, and indoor use.

• Withstands two thousand volts AC dielectric voltage
• Certified for current interrupting at full rated current
• UL 498 compliant with robust terminal identification

Product Highlights

This standard cord mount plug supports a cord diameter of zero point twenty-three to zero point seventy-two inches, with a temperature rating between minus forty and seventy-five degrees Celsius. Its design includes screw terminals for solid or stranded copper conductors.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: HBL52CM66C

Technical Specifications

• Amperage Rating: 15 A
• Application: Marine, Dry Location and Indoor Applications
• Color: Yellow
• Cord Diameter: 0.23 to 0.72 in
• Dimensions: 1.52 x 1.52 x 1.96 in
• Enclosure: IP20
• Horsepower: 1/2 hp
• NEMA Rating: 5-15P
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 deg C
• Voltage Rating: 125 VAC
