Hubbell HBL5206WO HUB WPF DPLX RCPT COVER

Product Description

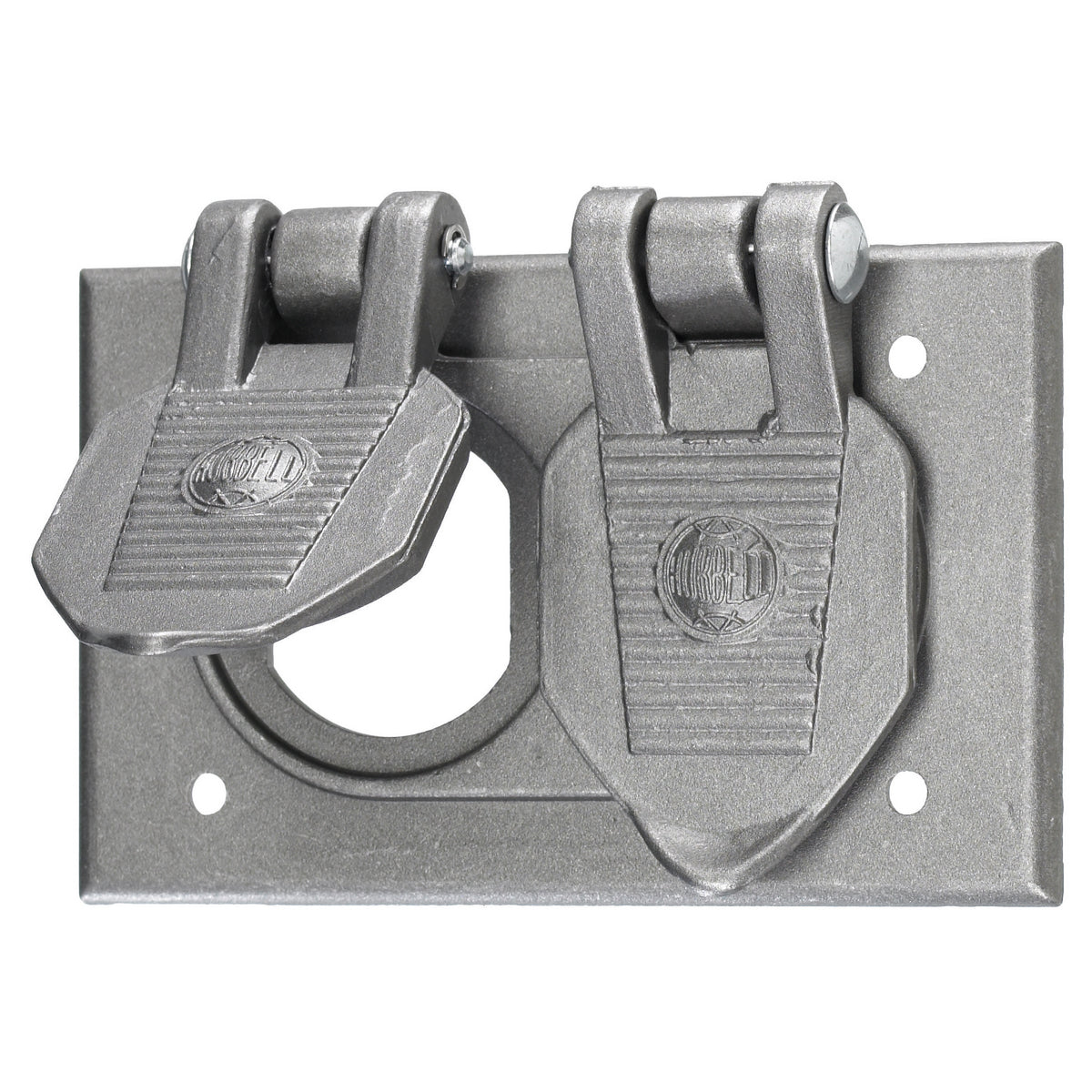

The Hubbell HBL5206WO is a weatherproof cover designed for Twist-Lock devices. This cover accommodates one outlet with standard duplex opening. It measures four point five eight inches in length, two point nine inches in width, and zero point eighty one inches in depth. The cover is made from cast aluminum, providing durability for outdoor applications. It operates effectively in temperatures ranging from negative forty to eighty-five degrees Celsius.

• Made from cast aluminum
• Weatherproof when device is mated
• Mounts horizontally with surface FS/FD/threaded options

Product Highlights

This standard weatherproof cover is ideal for Twist-Lock connections. It is suitable for GFCI and high ampacity receptacles.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: HBL5206WO

Technical Specifications

• Application: For Twist-Lock straight blade, GFCI, surge receptacles
• Color: Metallic
• Depth: 0.81 in
• Finish: Textured
• Includes: Duplex Opening
• Length: 4.58 in
• Material: Cast Aluminum
• Mounting Orientation: Horizontal
• Mounting Type: Surface FS/FD/Threaded
• Number of Gangs: 1
• Number of Outlets: 1
• Shape: Rectangular
• Standards/Approvals: RoHS Compliant, UL 514D, CSA Certified
• Temperature Rating: -40 to 85 deg C
• Width: 2.9 in
