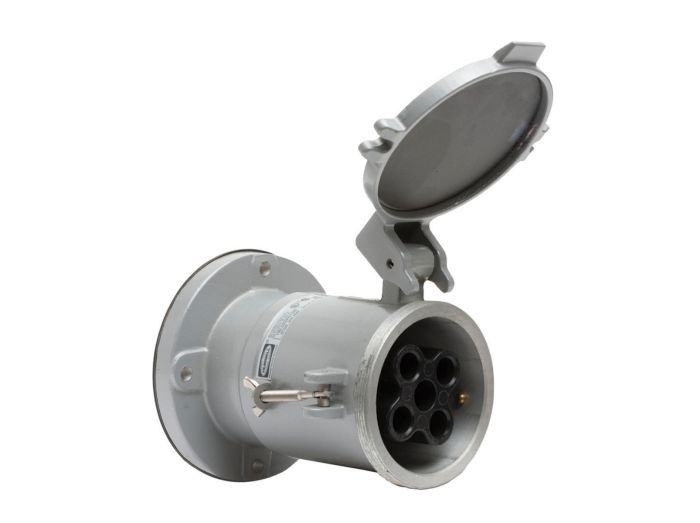

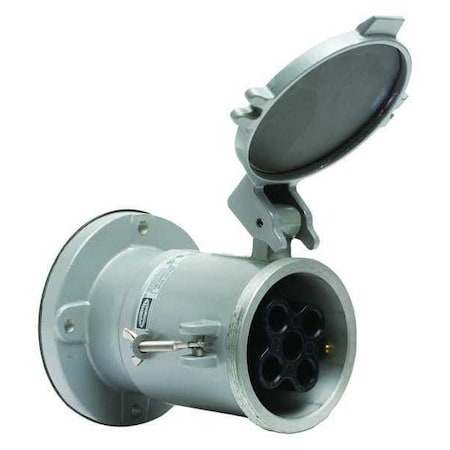

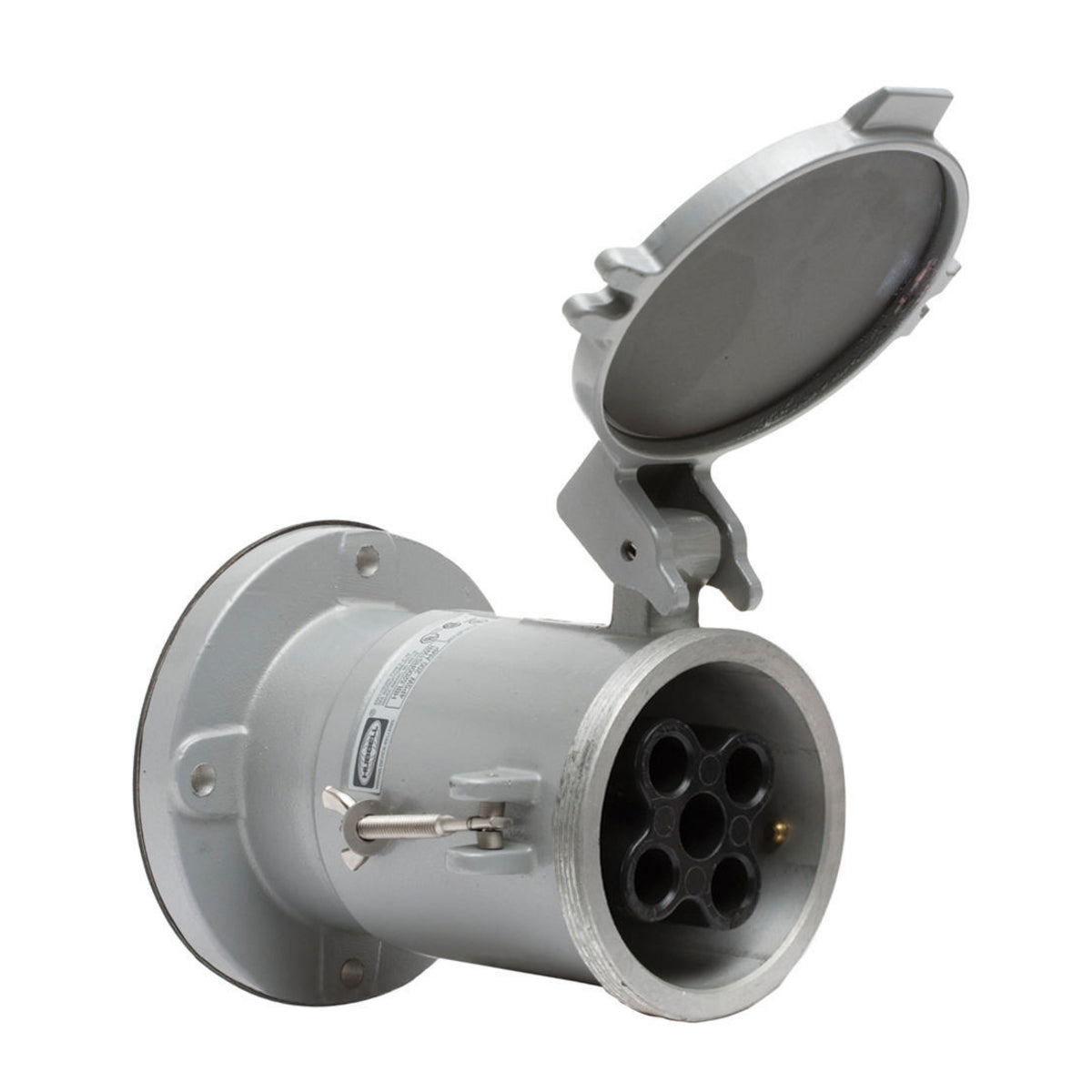

Hubbell HBL5200RS1W Insulgrip Pin and Sleeve Receptacle 200A 600V Style 1

Product Description

The HUBBELL HBL5200RS1W is an Insulgrip pin and sleeve receptacle. This industrial grade, 3-Phase flanged grounding receptacle features a non-NEMA Style 1 single standard watertight screw mount. It is rated for 600 VAC and 200 A, with 4 poles and 5 wires. The receptacle is constructed from thermoplastic and is suitable for use in temperatures ranging from -40 to 75 deg C.

• Shroud protects contact sleeves from deforming from physical abuse
• Molded thermoset polyester provides high resistance to electrical tracking
• Withstands higher temperatures which may result from overload or arcing

Product Highlights

The Hubbell HBL5200RS1W receptacle is ideal for high ampacity connections in industrial settings, providing a watertight seal and reliable electrical contact.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL5200RS1W
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 200 A
• Application: High Ampacity Connections Applications
• Color: Black/Gray
• Grade: Industrial
• Manufacturer Part Number: HBL5200RS1W
• Material: Thermoplastic
• Number of Poles: 4
• Number of Wires: 5
• Standards/Approvals: RoHS Compliant|CSA C22.2 File No. 182.1|UL498|UL 1686
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: 3-Phase Flanged Grounding Non-NEMA Style 1 Single Standard Watertight Screw Mount
• Voltage Rating: 600 VAC
• Phase: Three Phase
• Market: Industrial
• Cap Type: Spring-Loaded Cap
• Features: UV Stabilized
• Shrouded: Yes
• Grounding: Grounded
• NEMA Rating: 3, 4, 4X
• Flange Type: Flanged
• Maximum Wire Size: 4/0 AWG
• Minimum Wire Size: 2 AWG
• NEMA Enclosure Rating: 4X
• Resistance Properties: Impact Resistant, Moisture Resistant
• Compatible with Series: Insulgrip
• Connection Orientation: Straight
• Pin & Sleeve Standards: UL 1682
• Wire Connection Type: Screw Terminals
• Housing Material Type: Metallic
• Mounting Box Hub Type: Receptacle Only
• Number of Poles & Wires: 4 Pole / 5 Wire
• UL 94 Flammability Rating: V-0
• Includes Mounting Hardware: Yes
• Maximum Operating Temperature: 75 Degrees C
• Minimum Operating Temperature: -40 Degrees C
• Current Rating: 200 A
• Environmental Conditions: Watertight
• Product Series: UL 1686 Class 1 Insulgrip
• Style: Standard Service, Style 1
• AWG Range: 2 - 4/0 AWG
• Rated Voltage: 600V AC/250V DC
• Wire Size Range: 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 MCM
