Hubbell HBL518IV External Raceway Elbow 90-Degree

Product Description

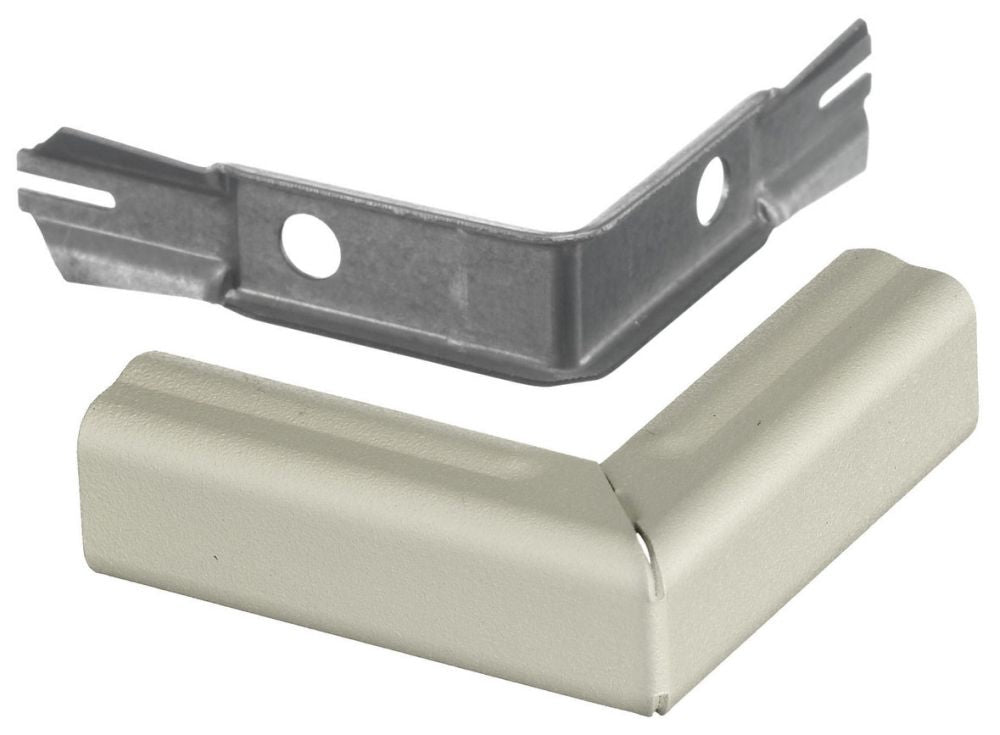

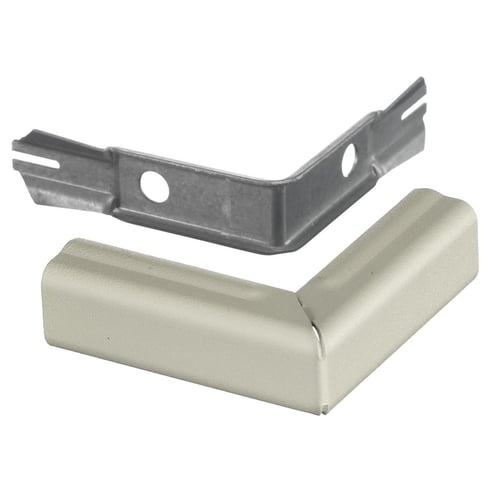

The HUBBELL HBL518IV is an External Raceway Elbow, specifically designed for the HBL500 Series raceway systems. This steel component is engineered to manage cable routing around outside surfaces at right angles. It ensures organized and protected wiring installations, maintaining system integrity. The elbow is compliant with industry standards such as UL 5 and CSA, making it suitable for various electrical applications requiring robust cable management.

• Facilitates cable routing around outside surfaces at right angles.
• Constructed from durable galvanized steel for long-lasting performance.
• Compatible with HBL500 Series raceways for seamless integration.

Product Highlights

Steel external 90-degree elbow for HBL500 Series raceways, suitable for high ampacity connections.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL518IV
• Country of Origin: China

Technical Specifications

• MPN: HBL518IV
• Series: HBL500
• Material: Galvanized Steel
• Type: External Raceway Elbow
• Color: Ivory
• Standards: CSA C22.2 no. 62, UL 5
• Construction: Roll Form
• Knockouts: None
• Nominal Cross Section: .22 Square Inches
• Application: High Ampacity Connections
• Conduit Body Type: Angled
• For Raceway Height: 0.75 in
• For Raceway Width: 0.75 in
• For Raceway Width x Height: 0.75 in x 0.65625 in
• Number of Channels: 1
• Mounting Style: Screw On, Snap On
• Overall Height: 0.5 in
• Overall Length: 2.5 in
• Overall Width: 2.5 in
• Raceway Type: Metallic
