Hubbell HBL517IV Raceway Interior Elbow HBL500

Product Description

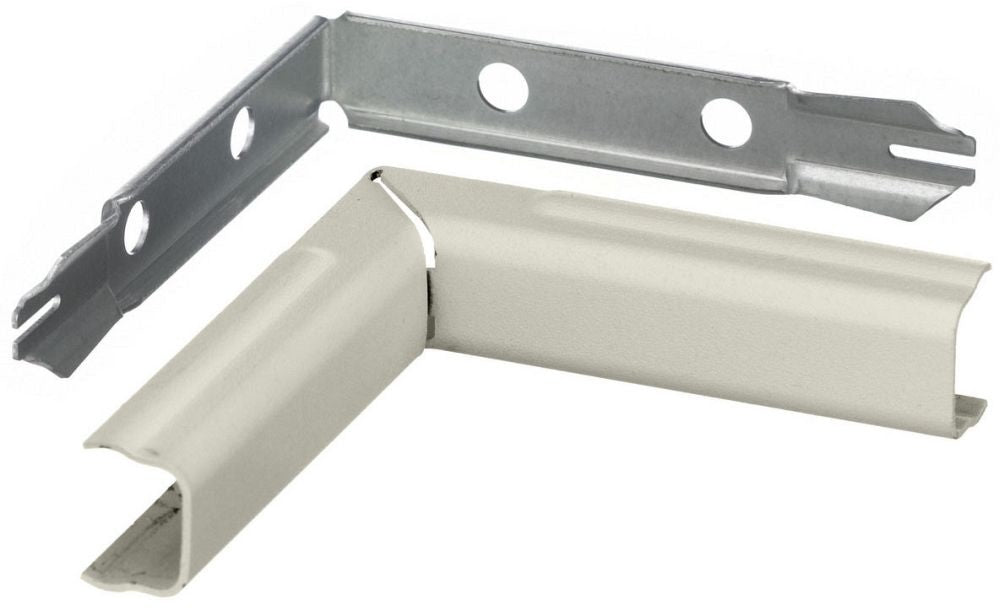

The HUBBELL HBL517IV is an interior elbow fitting designed for use with the HBL500 Series raceway system. This component redirects cable runs at interior corners, allowing conductors and low-voltage wiring to change direction cleanly within a surface-mounted raceway installation. It is sized and profiled to mate directly with HBL500 Series raceway base and cover sections. Electricians and low-voltage installers use this fitting when routing branch circuits, data cabling, or control wiring along walls where interior 90-degree turns are required.

This interior elbow is suited for commercial and light industrial environments where surface raceway is the preferred wiring method. Typical applications include office buildouts, classroom wiring, healthcare facilities, and any space where concealed in-wall wiring is not practical. The fitting maintains the finished appearance of the raceway system through directional transitions at inside corners.

Key Features

• Interior corner elbow designed for clean 90-degree direction changes within surface raceway runs
• Engineered to mate with HBL500 Series raceway base and cover sections
• Ivory finish integrates with standard HBL500 Series system aesthetics
• Supports organized routing of branch circuit, data, and control wiring
• Surface-mount profile suitable for wall installations where in-wall wiring is not feasible

Compatibility

Designed for use with the HUBBELL HBL500 Series surface raceway system as an interior elbow fitting component.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable NEC requirements for surface metal or nonmetallic raceway wiring methods. De-energize all circuits in the work area before installing or modifying raceway fittings. Secure the fitting to the raceway base at the interior corner before snapping the cover sections into place. Do not exceed the fill capacity of the raceway channel as specified by the raceway system manufacturer.

Technical Specifications

• Series: HBL500
• Fitting Type: Interior Elbow
• Color: Ivory

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL517IV
