Hubbell HBL512IV Raceway 45 Flat Elbow Hbl500 Series

Product Description

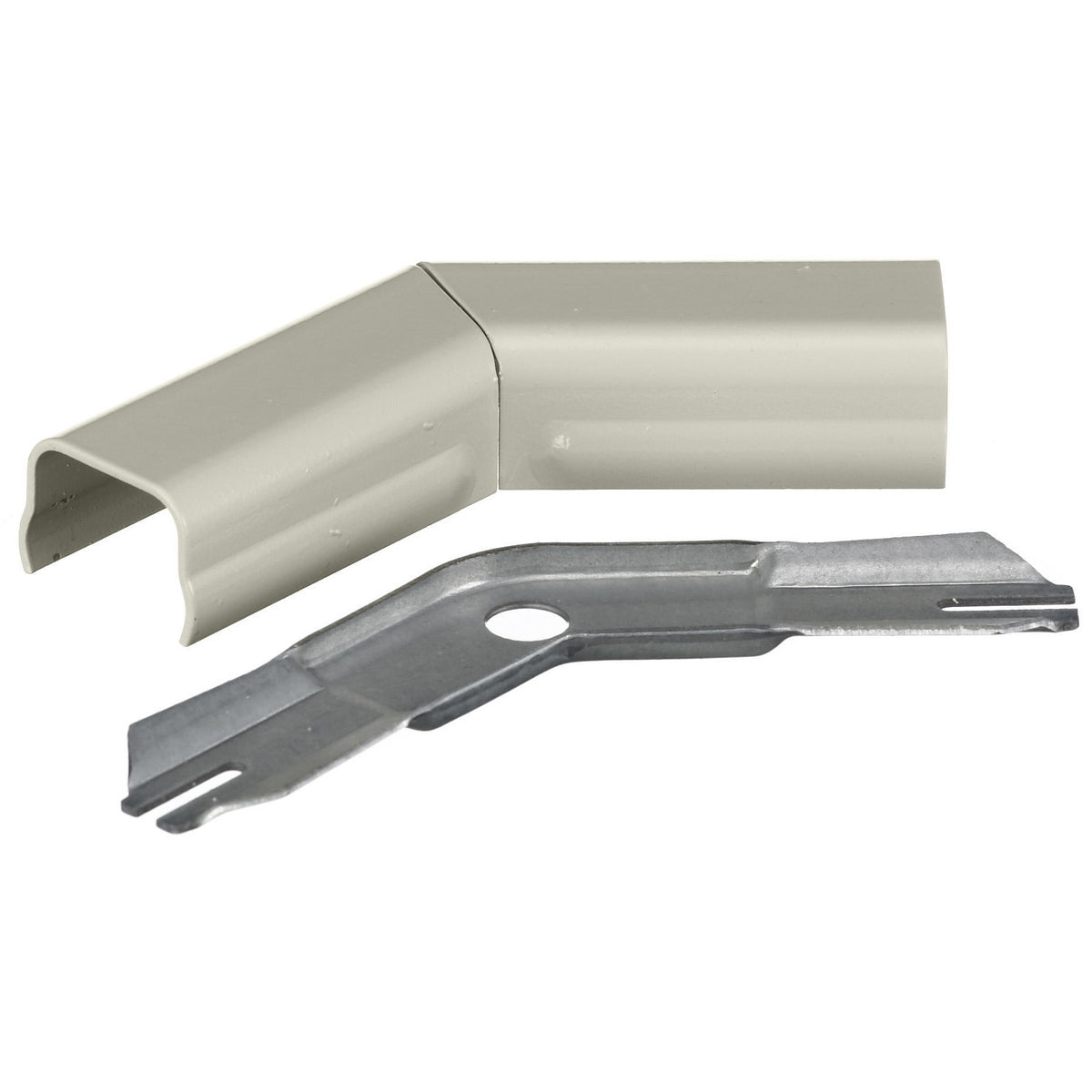

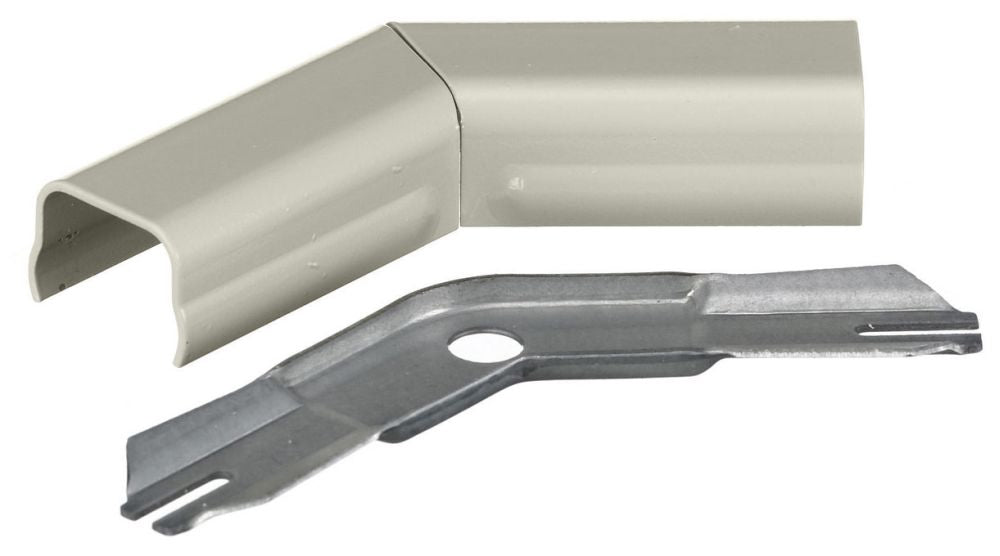

The Hubbell HBL512IV Raceway is a 45-degree flat elbow from the Hbl500 Series. Constructed from steel, this raceway elbow is designed for diagonal 45-degree turns on the same surface. It enhances datacom capabilities and is ideal for datacom and oversized neutral applications.

• Enhanced datacom capabilities
• Made of steel
• For diagonal 45° turns on same surface

Product Highlights

The Hubbell HBL512IV is a steel metal raceway 45-degree flat elbow, designed for HBL500 series raceways.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL512IV
• Country of Origin: China

Technical Specifications

• Catalog Number: HBL512IV
• Series: HBL500
• Type: Elbows
• Material: Steel
• Style: Flat
• UPC: 783585216720
• Industry Standard(s): CSA Standard C22.2 no. 62 E253976 /E253830 /E253833 UL Standard UL 5
• Brand: Hubbell Wiring Systems
• Number of Items: 1.0
• Elbow Angle: 45
• For Use With: HBL750 Series Raceways; HBL500 Series Raceways
• Applications: 45 Degree Flat Elbow
• Enclosure: NEMA 1 Rating
• Standard: CSA Standard C22.2 No. 62,E253830,E253833,E253976,UL Standard UL 5
• Sub Brand: Metallic Raceway Products
• Product Series: HBL500
• Used With: Dedicated HBL500 Series Metallic Raceway
• Height: 0.6 Inch
• Length: 5-3/4 Inch
• Width: 3.5 in
• Country of Origin: China
• Application: High Ampacity Connections
• UNSPSC: 39131711
• Bend Angle: 45 °
• Dimensions: 2.46 in L x 0.58 in W x 2.46 in H
• Finish: Ivory
• Suitable For Use With: HBL500 Series Raceway
• Overall Length: 62.61 mm; 2.4600 in
• Overall Width: 14.73 mm; 0.5800 in
• Overall Height: 62.61 mm; 2.4600 in
• EU RoHS Indicator: Contact Manufacturer
• ARRA Compliant: C
• Buy American Compliant: C
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 5CSA C22.2 No. 62E253976E253830E253833
