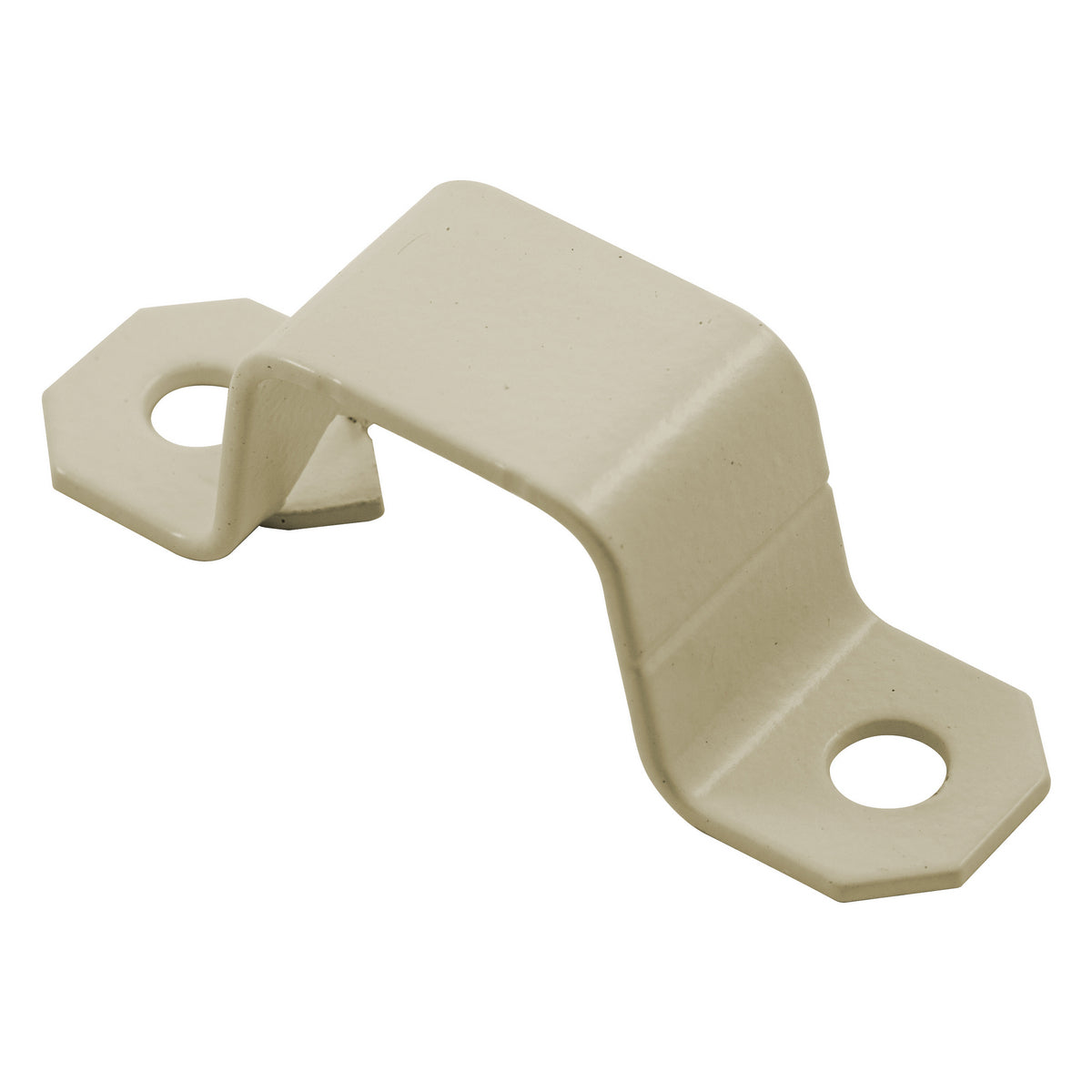

Hubbell HBL504IV Mounting Strap Ivory Standard 0.22 sq-in

Product Description

The Hubbell HBL504IV is a mounting strap designed for securing HBL500 series metal raceways. This standard strap uses rolled steel for durability and is suited for surface mounting. The strap has a dimension of one point eight inches in length, zero point five inches in width, and zero point six inches in height.

• Suitable for HBL500, HBL700, and HBL750 raceways
• Features holes that can be converted to one hole by breaking off at the score
• Does not have knockouts

Product Highlights

Mounting straps provide essential support for raceways installed in non-hazardous locations.

Product Information

Standard Information

• UNSPSC Code: 39131709
• Manufacturer Part Number: HBL504IV

Technical Specifications

• Application: Non-Hazardous Locations
• Color: Ivory
• Dimensions: 1.8 in L x 0.5 in W x 0.6 in H
• Material: Rolled Steel
• Mounting Type: Surface
• Number of Holes: 1/2
• Size: 0.22 sq-in
• Standards/Approvals: UL 5, NEMA 1, RoHS Compliant
• Suitable For Use With: HBL500 Series Metal Raceways
• Type: Standard
