Hubbell HBL504IV Mounting Strap 0.58 inch Width 0.5 inch Length

Product Description

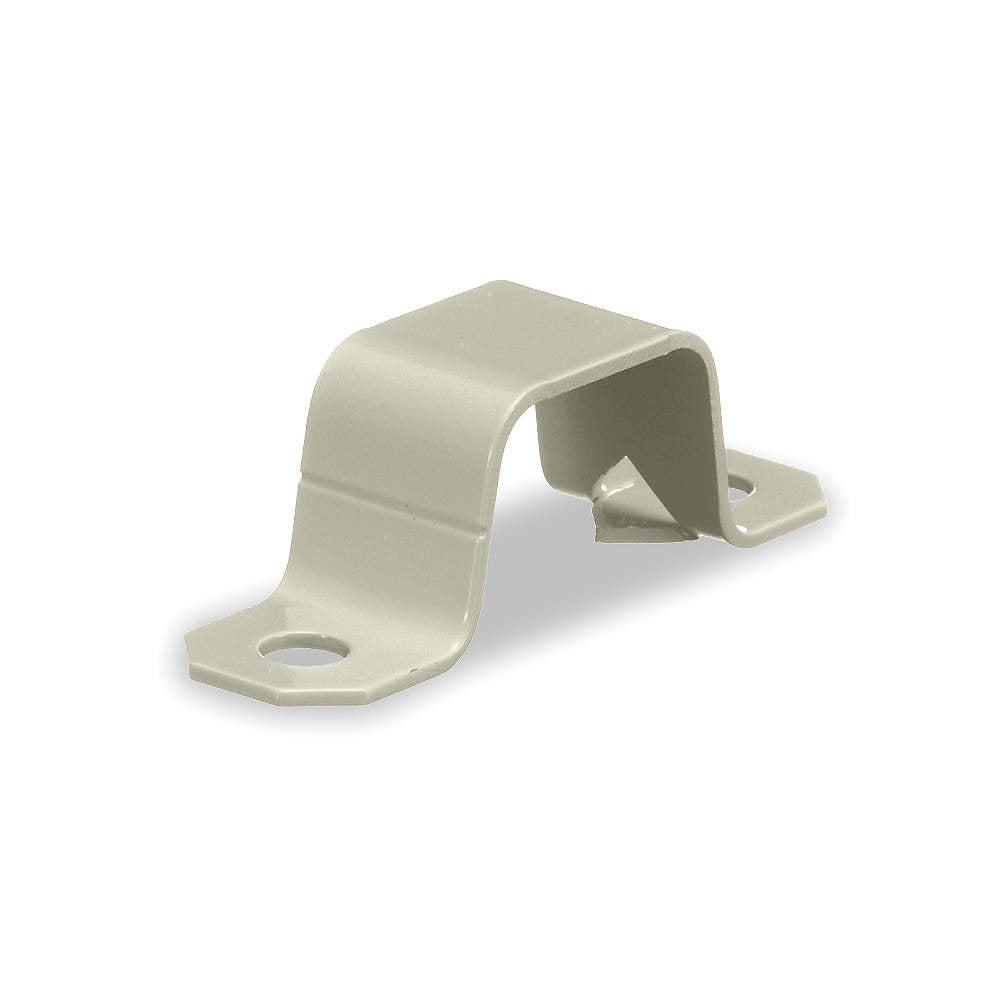

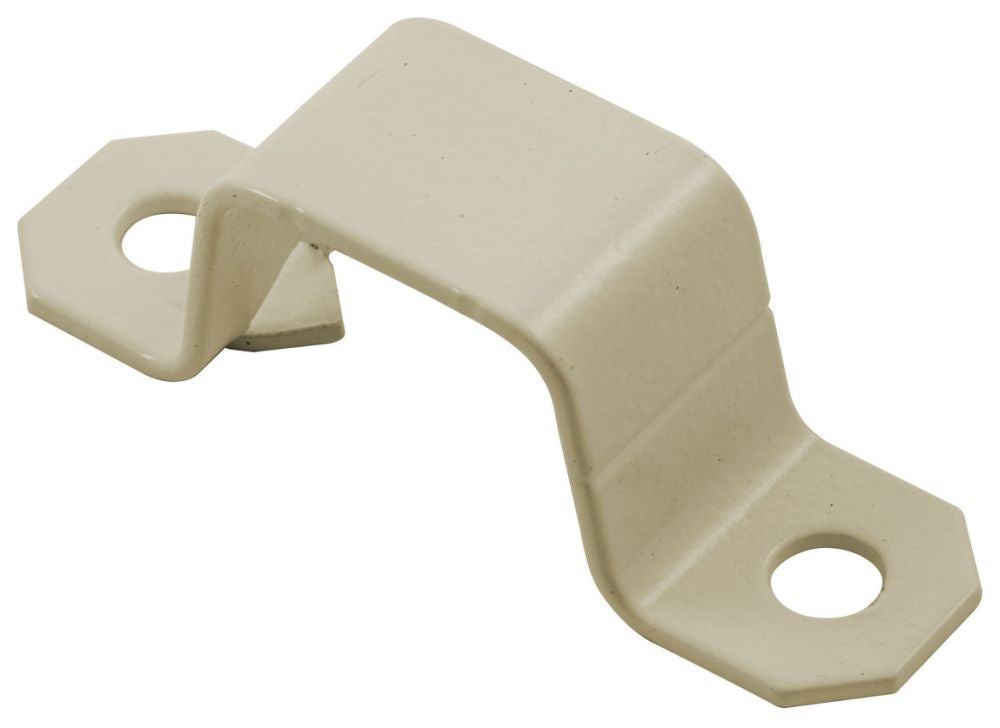

The HUBBELL HBL504IV is a steel mounting strap designed for securing raceways. This durable component is compatible with HBL500, HBL700, and HBL750 series raceways, facilitating surface mounting applications. It features a versatile design that allows conversion to a one-hole configuration by breaking off at a score. The strap is UL Listed and CSA Certified, ensuring compliance with safety standards for industrial electrical installations.

• Compatible with HBL500, HBL700, and HBL750 series raceways for versatile mounting.
• Constructed from steel, ensuring durability and robust support for electrical installations.
• Features a convertible design, allowing for one-hole or two-hole mounting options.

Product Highlights

Durable steel mounting strap for HBL500 series raceways, UL/CSA certified, with convertible one-hole option.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL504IV
• Country of Origin: China

Technical Specifications

• Brand: Hubbell
• Manufacturer: HUBBELL WIRING DEVICE-KELLEMS
• MPN: HBL504IV
• UPC: 783585000000
• Material: Steel
• Color: Ivory
• Product Type: Metal Mounting Strap
• Series: HBL500 Series
• Type: Raceway Mounting Strap
• Fittings Sub-Category: Straps
• Standards: UL, CSA
• For Use With: 500 Raceway
• Catalog Number: HBL504IV
• Style: Strap
• Finish: Ivory Powder Coated
• UNSPSC: 39121203
• Country of Origin: China
• Construction: Roll Form
• Knockouts: None
• Nominal Cross Section: .22 Square Inches
• Non-Hazardous Location: Non-Hazardous
• Sub Brand: Hubbell Wiring Device-Kellems
• Enclosure Rating: NEMA 1
• Mounting Type: Screw Hole
