Hubbell HBL50010IV Single-channel Raceway 10 Ft

Product Description

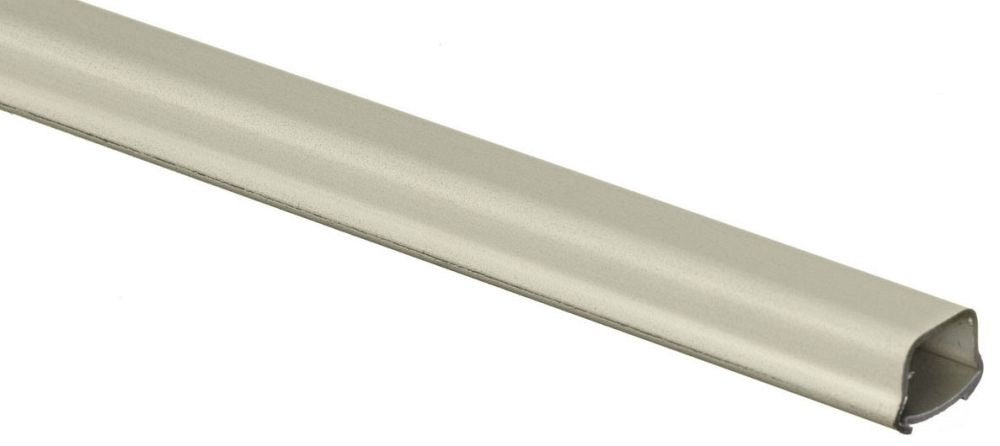

The HUBBELL HBL50010IV is a single-channel surface-mount raceway base section in the HBL500 Series, finished in ivory. Measuring 10 feet in length, it provides a dedicated pathway for low-voltage or branch-circuit wiring runs along walls, ceilings, or baseboards. Electricians and low-voltage installers use this raceway to organize and protect exposed conductors in commercial, institutional, and residential applications where concealed wiring is not practical. The single-channel design accommodates one wire bundle or circuit, keeping conductors separated and accessible for future service.

This raceway base section is suited for surface wiring installations in office environments, healthcare facilities, schools, and retail spaces. It is typically installed along wall surfaces to route power, data, or communication cables in areas where in-wall wiring is not feasible. The ivory finish blends with standard interior wall colors, making it a common choice for visible raceway runs in finished spaces. This is a base section only; compatible couplings, covers, and fittings in the HBL500 Series are required to complete the installation.

Key Features

• Single-channel design for organized, dedicated wiring runs
• 10-foot section length reduces the number of joints in longer runs
• Ivory finish suited for finished interior environments
• Part of the HBL500 Series for access to a full line of compatible fittings and accessories
• Surface-mount profile for installations where in-wall routing is not an option

Compatibility

Designed for use with HUBBELL HBL500 Series raceway fittings, couplings, end caps, and covers. Specific compatible accessory part numbers should be confirmed against the HBL500 Series product family documentation.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC Article 386 governing surface metal or nonmetallic raceways. De-energize all circuits in the work area before pulling or terminating conductors. Raceway sections should be secured to wall surfaces at intervals consistent with applicable code requirements. Do not exceed the manufacturer-rated fill capacity for the channel when routing conductors.

Technical Specifications

• Series: HBL500
• Number of Channels: 1
• Section Length: 120 inches
• Color/Finish: Ivory

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL50010IV
