Product Description

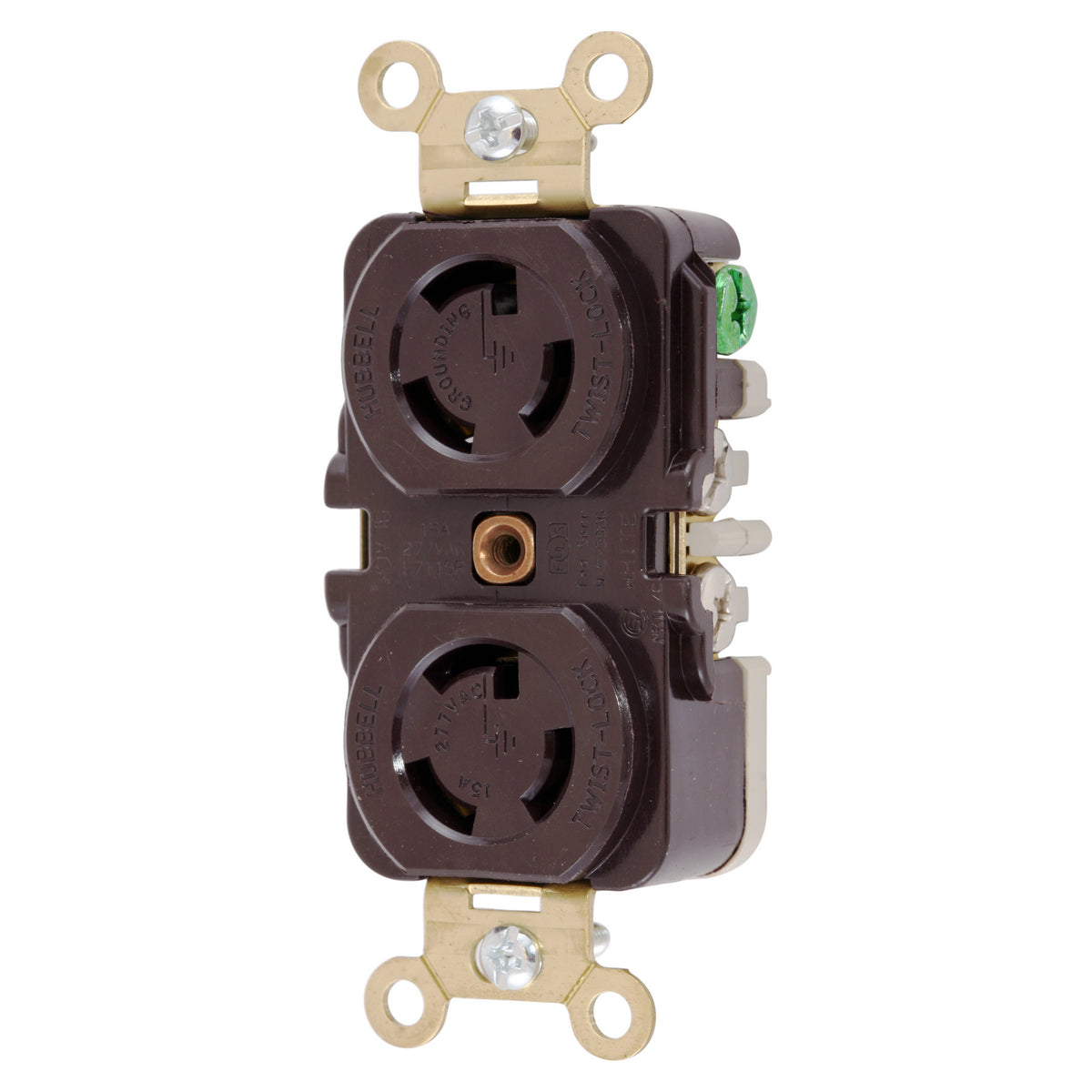

The Hubbell HBL4750 is a heavy-duty locking receptacle designed for one-phase grounding applications. It operates at a voltage of 277 VAC and a current of 15 A. This receptacle features two poles and three wires, making it suitable for various industrial installations. The thermoplastic housing is designed to withstand harsh conditions, and its compact dimensions of three point twenty-nine inches by one point seven inches by one point seventeen inches make it a practical choice for tight spaces.
- Heavy-duty construction for durability and reliability.
- Rated for 277 VAC and 15 A.
- Compact design for easy installation.
Product Highlights
This locking receptacle is ideal for applications requiring secure connections and safety in industrial environments.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358500234
Technical Specifications
-
Amperage Rating: 15 A
-
Voltage Rating: 277 VAC
-
Horsepower: 2 hp
-
Number of Poles: 2
-
Number of Wires: 3
-
NEMA Rating: L7-15R
-
Temperature Rating: -40 to 75 degrees C
-
Material: Thermoplastic
-
Series: HBL®
-
Dimensions: 3.29 x 1.7 x 1.17 in
-
Standards/Approvals: UL 498, CSA Certified, NEMA WD1/WD5, RoHS Compliant
