Product Description

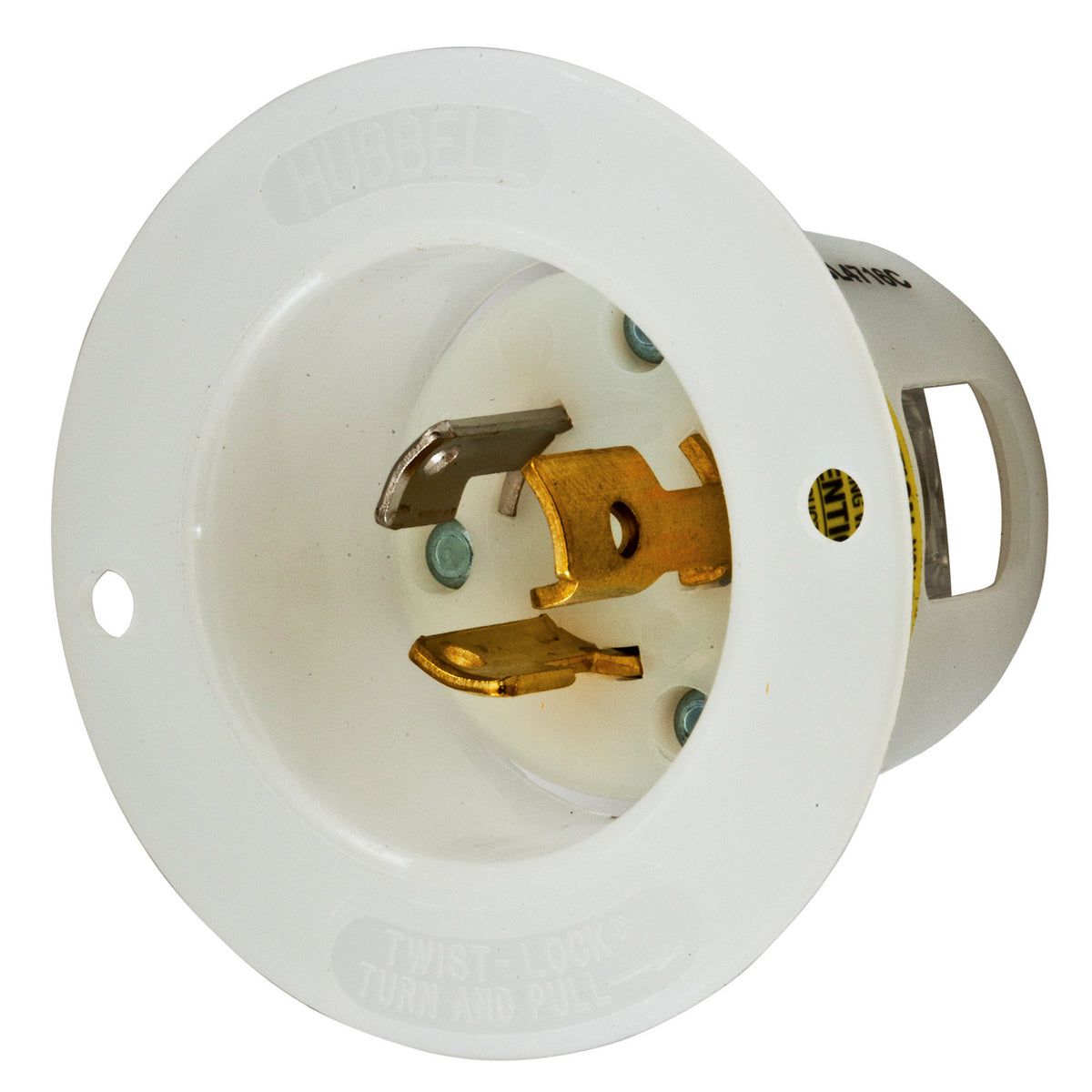

The Hubbell HBL4716C is a locking flanged inlet designed for heavy-duty use. It operates at 125 volts and 15 amperes with a L5-15P NEMA rating. This inlet features a grounding screw mount, ensuring a secure connection. The durable nylon body provides reliable insulation and impact resistance, making it suitable for industrial applications.
- Rated for 15 amps and 125 volts
- Designed for easy installation with backwired terminations
- Includes mounting screws for secure attachment
Product Highlights
The HBL4716C locking flanged inlet is ideal for both commercial and industrial settings where a secure electrical connection is necessary. Its robust design meets several safety standards, ensuring reliable performance.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358517105
Technical Specifications
-
Amperage Rating: 15 A
-
Color: White
-
Dimensions: 2.56 x 2.56 x 1.72 inches
-
Enclosure: IP20
-
Grade: Industrial
-
Horsepower: 1/2 hp
-
Includes: Mounting Screws
-
Manufacturer Part Number: HBL4716C
-
Material: Nylon
-
NEMA Rating: L5-15P
-
Number of Poles: 2
-
Number of Wires: 3
-
Standards/Approvals: UL 498 Listed | Federal Specification W-C-596 | CSA C22.2 No. 42 Certified | NEMA WD1/WD5 | RoHS Compliant
-
Temperature Rating: -40 to 75 degrees C
-
Terminal Type: Screw
-
Type: 1-Phase Heavy Duty Grounding Screw Mount
-
Voltage Rating: 125 VAC
