Hubbell hbl460c9w conn-3p4w60a3ph250v

Product Description

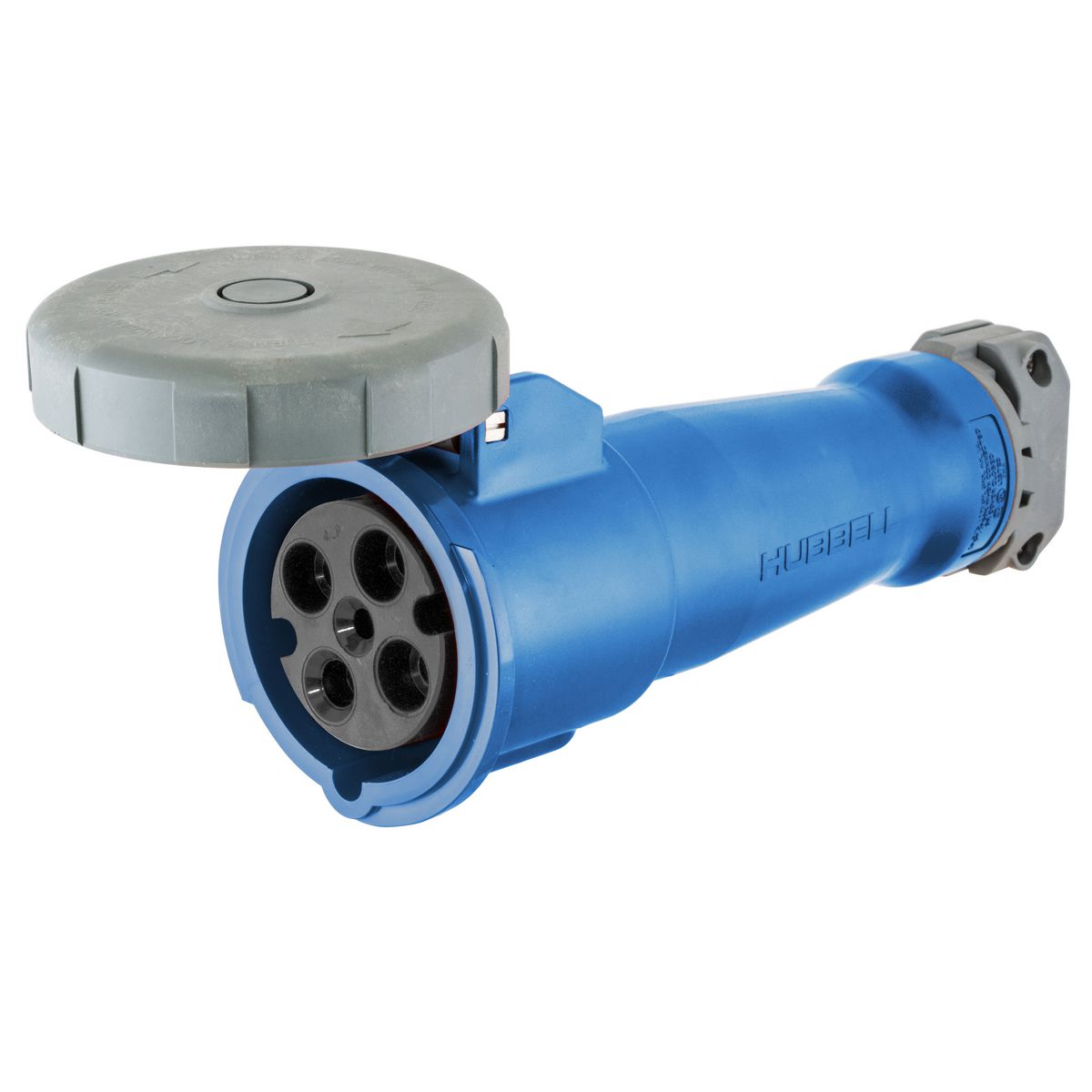

The HUBBELL HBL460C9W is a pin and sleeve connector with a watertight construction. Rated at 250 Volt AC 3-Phase and 60 Amp, this connector features 3 poles and 4 wires with a grounding style. Constructed with a PBT housing, it supports wire sizes from 8 to 2 AWG and has an IP67 enclosure rating.

• Pin and Sleeve Connector
• Constructional Feature Water Tight
• Watertight

Product Highlights

The Hubbell HBL460C9W connector is ideal for industrial applications requiring a robust and watertight connection.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: HBL460C9W

Technical Specifications

• Voltage Rating: 250 Volt AC 3-Phase
• Current Rating: 60 Amp
• Number of Poles: 3
• Number of Wires: 4
• Grounding Style: Grounding
• Minimum Cable Outer Diameter: 0.5 Inch
• Maximum Cable Outer Diameter: 1.45 Inch
• Material: PBT (Housing)
• Approval: UL 94/1682, CSA C22.2
• Wire Size: 8 to 2 AWG
• Enclosure Rating: IP67
• Temperature Rating: -40 to 75 Deg C
• Horsepower Rating: 7 1/2 hp
• Phase: Three
• Resistance Properties: Impact , Moisture , Watertight
• Switch Rated: No
• Cap Type: Spring-Loaded Cap
• Connection Orientation: Straight
• Face Diameter: 4.15 in
• Grounding: Grounded
