Product Description

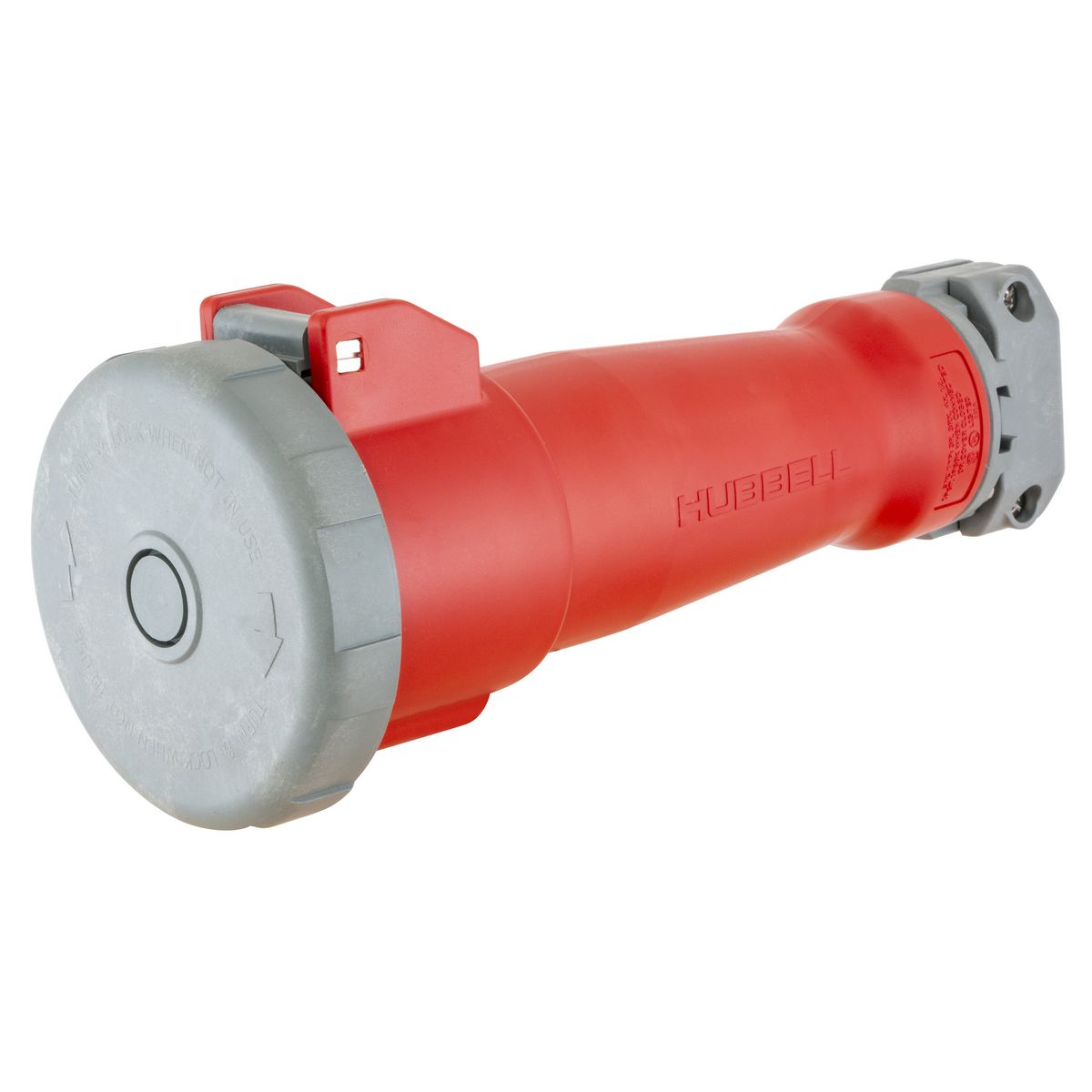

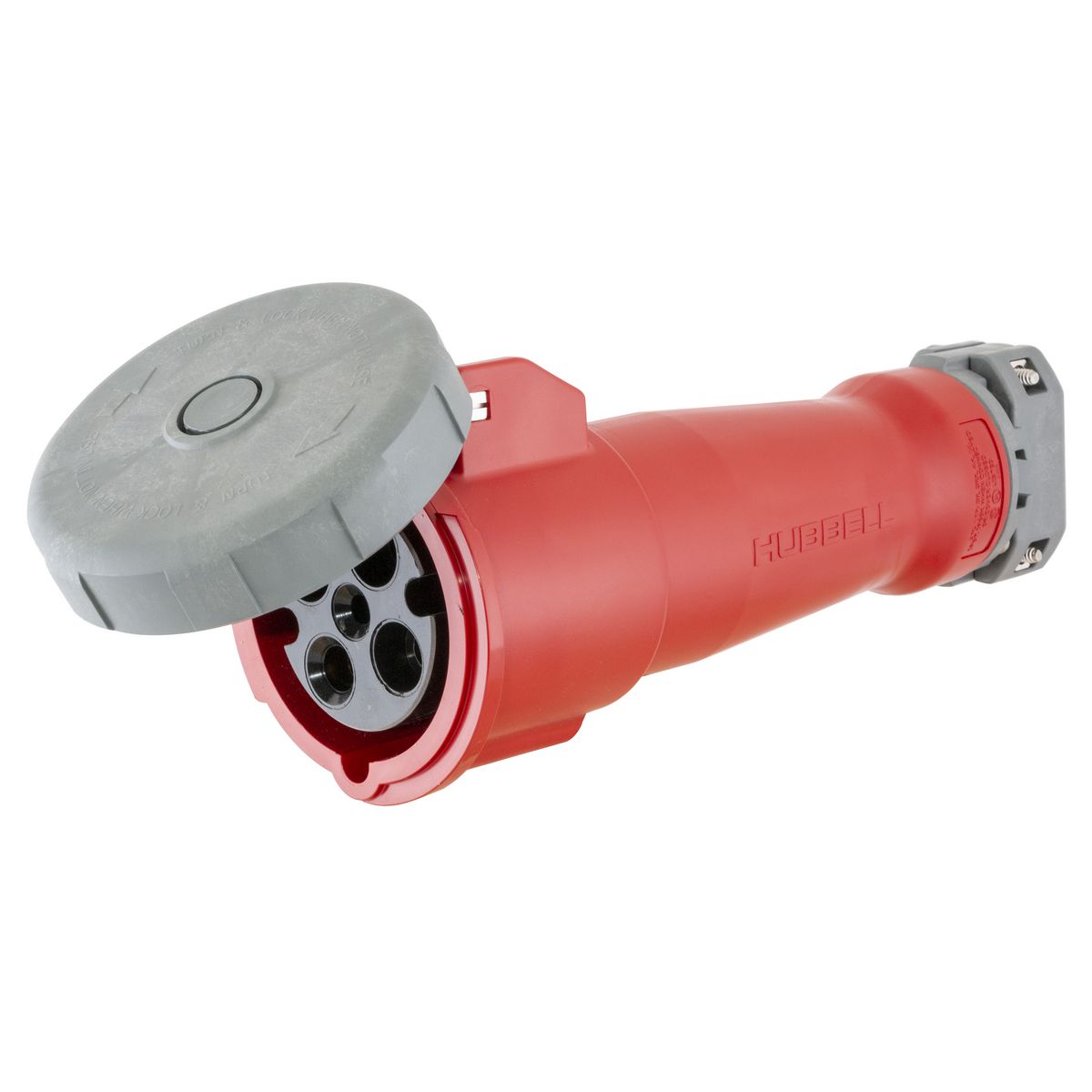

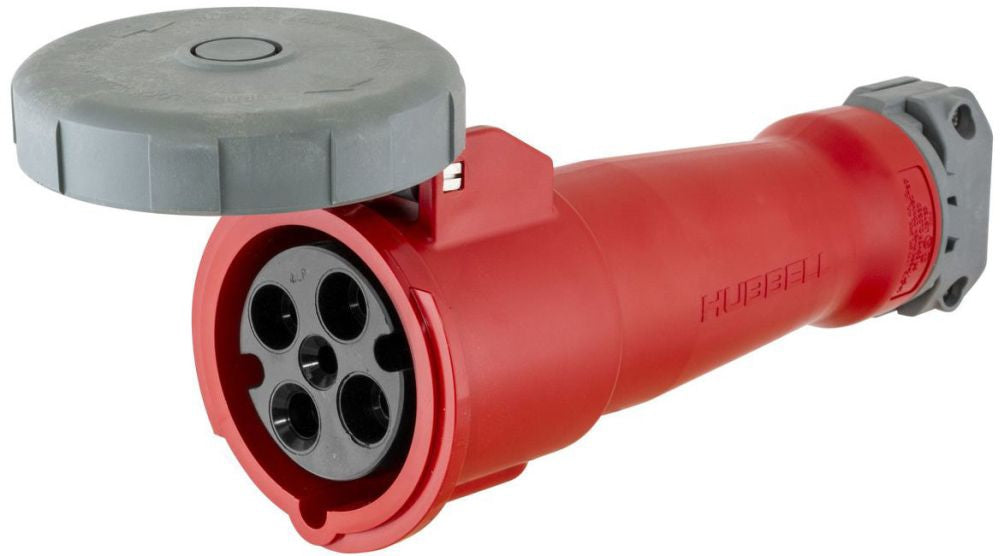

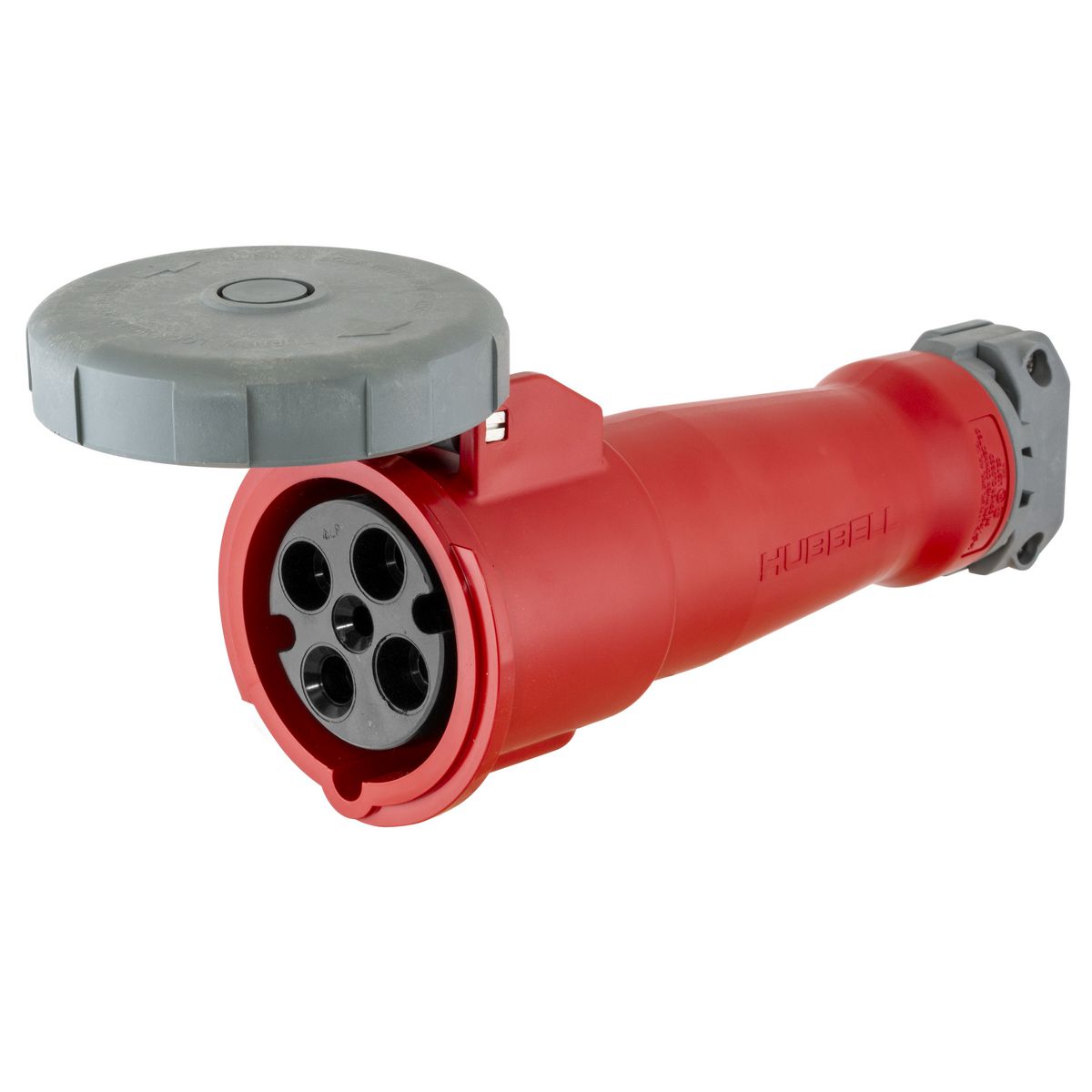

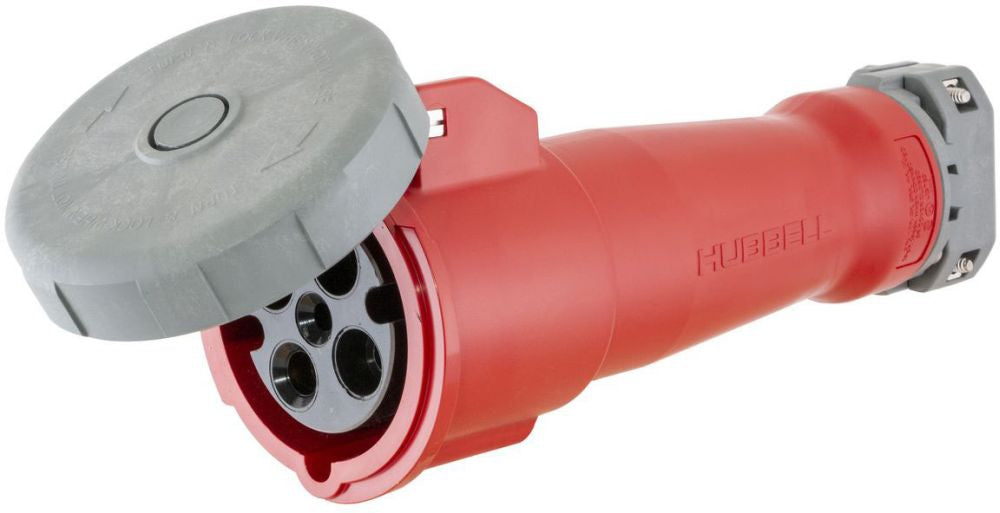

The HUBBELL HBL460C7W is a 3-pole, 4-wire connector designed for 60A, 480V 3-phase connections. This watertight pin and sleeve connector features a non-conductive nylon housing and an OSHA-compliant lockout hole for enhanced safety. It is suitable for high ampacity connections in demanding industrial environments.
- Color Coded Housings for Easy Identification
- Self-Closing Gasketed Cover
- Insulated Non-Metallic Housing
Product Highlights
Watertight connector ideal for industrial applications requiring a robust and reliable power connection.
Product Information
Standard Information
-
Brand: HUBBELL
-
Manufacturer Part Number: HBL460C7W
-
Country of Origin: USA
Technical Specifications
-
MPN: HBL460C7W
-
Brand: HUBBELL
-
Current Rating: 60 A
-
Grounding Style: IEC
-
Horsepower Rating: 20 hp
-
Number of Poles: 3
-
Number of Wires: 4
-
Phase: Three
-
Voltage Rating: 480V AC
-
Cap Type: Spring-Loaded Cap
-
Connection Orientation: Straight
-
IP Rating: IP68, IP69K
-
Resistance Properties: Impact Resistant, Moisture Resistant, Watertight
-
Switch Rated: No
-
Body Material: Zytel 801 Nylon
-
Face Diameter: 4.15 in
-
Housing Color: Red
-
Overall Length: 10.75 in
-
Reverse Service: No
-
Housing Material: PBT
-
Outside Diameter: 4.39 in
-
Maximum Wire Size: 2 AWG
-
Minimum Wire Size: 8 AWG
-
Wire Connection Type: Screw Terminals
-
Housing Material Type: Non-Metallic
-
NEMA Enclosure Rating: 4X
-
Compatible with Series: HBL Heavy Duty
-
Housing Material Grade: Zytel 801
-
Pin & Sleeve Standards: IEC 60309
-
Power Indicating Light: No
-
UL 94 Flammability Rating: V-0
-
For Maximum Cable Diameter: 1.45 in
-
For Minimum Cable Diameter: 0.5 in
-
Maximum Operating Temperature: 75 Degrees C
-
Minimum Operating Temperature: -40 Degrees C
-
Application: High Ampacity Connections
-
Conductor Range: #8AWG to #2AWG
-
Connection: Pressure Screw Terminal
-
Environmental Conditions: Watertight
-
Insulation: Insulated Body
-
Material: Composite
-
Mounting: Cord Mounted
-
NEMA Rating: Non-NEMA
-
Series: HBL Heavy Duty
-
Size: Standard
-
Special Features: Watertight
-
Standard: UL 498, IEC 309-1 and 309-2
-
Sub-Brand: Pin and Sleeve
-
Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact
-
Type: Watertight Connector Body
-
Voltage: 480 Volts
-
Enclosure: IP67
-
Grade: Industrial
-
Terminal Type: Pressure Screw
-
Amperage: 60 Amp
-
Number of Ports: 3
-
Wire Count: 4
-
Product Series: HBL Heavy Duty
-
Family Name: Watertight Devices
-
Primary Type: Pin+Sleeve
-
Termination: screw
-
Wire Size: 8 to 2 AWG
-
Operating Temperature: -40 degrees C
-
Style: Standard Service
-
TC Connection: Pressure Screw Terminal
-
EU RoHS Indicator: Yes
-
Current: 60 Amp
-
Number Of Poles: 3-Pole
-
Number Of Wires: 4-Wire
-
Voltage Rating Description: 3 Phase 480 VAC
-
Industry Standard(s): CSA Certified File LR280C
UL Classified to IEC 60309-1 IEC 60309-2
UL Listed, File E146033
-
Dimensions: 5.1 in Dia x 11.15 in L
-
Horsepower: 10 hp
