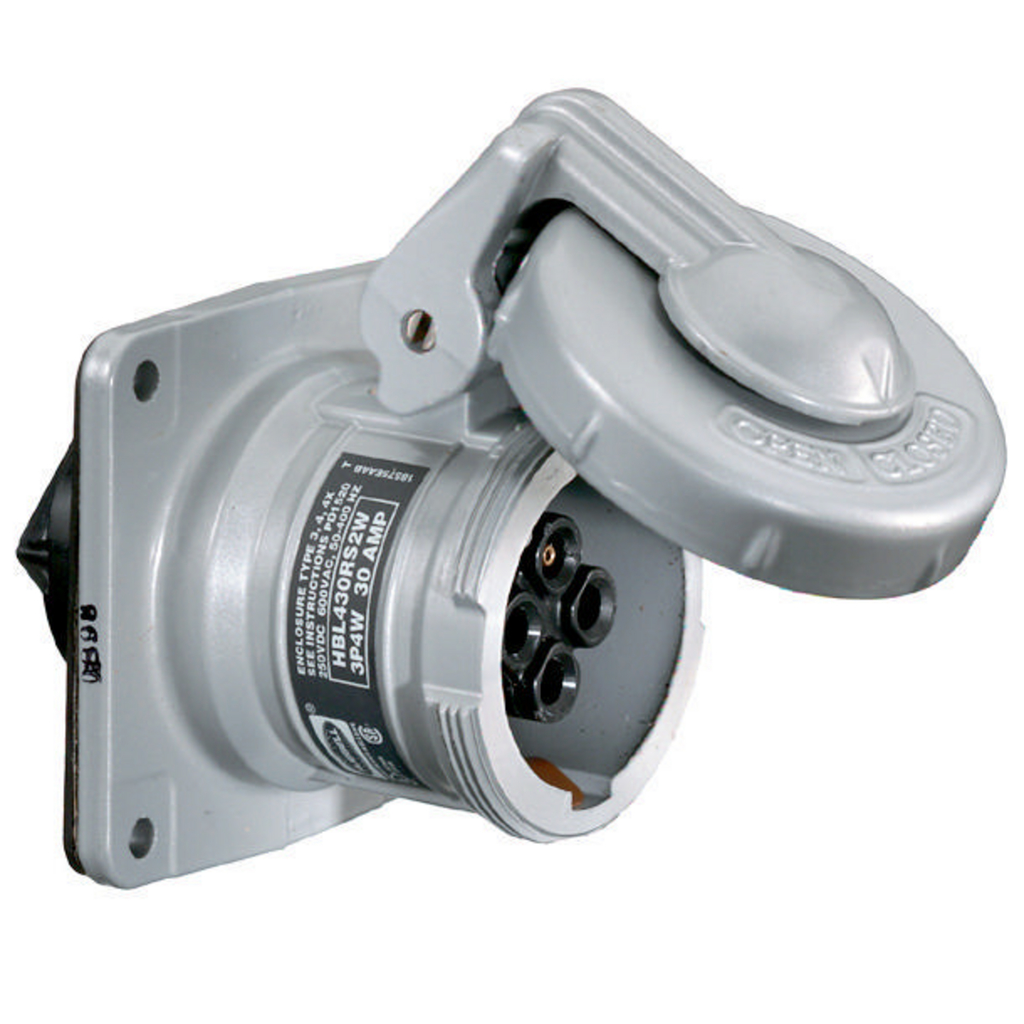

Hubbell HBL430RS1W PS, IEC, Receptacle, 3P4W, 30A 600V, S1

Product Description

The Hubbell HBL430RS1W is a heavy-duty receptacle designed for industrial use. This product features a three-pole four-wire grounding configuration, suitable for 30 amp and 600 volt applications. The product is ideal for high ampacity connections where reliability and safety are crucial.

• Watertight neoprene sealing glands for effective moisture protection.
• Spring-loaded gasketed cover ensures a dust-tight seal.
• Pin chamber design confines arcing within the interior chamber.

Product Highlights

This receptacle is built with a thermoplastic body, complying with safety standards including CSA and UL certifications.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Voltage: 600 Volt
• Current: 30 Amp
• Material: Thermoplastic
• Number of Poles: 3 Pole
• Number of Wires: 4 Wire
• Operating Temperature: -40 degrees C
• Weight: 1.4 lb
• Width: 4.4 inches
• Height: 4 inches
• Length: 5.4 inches
